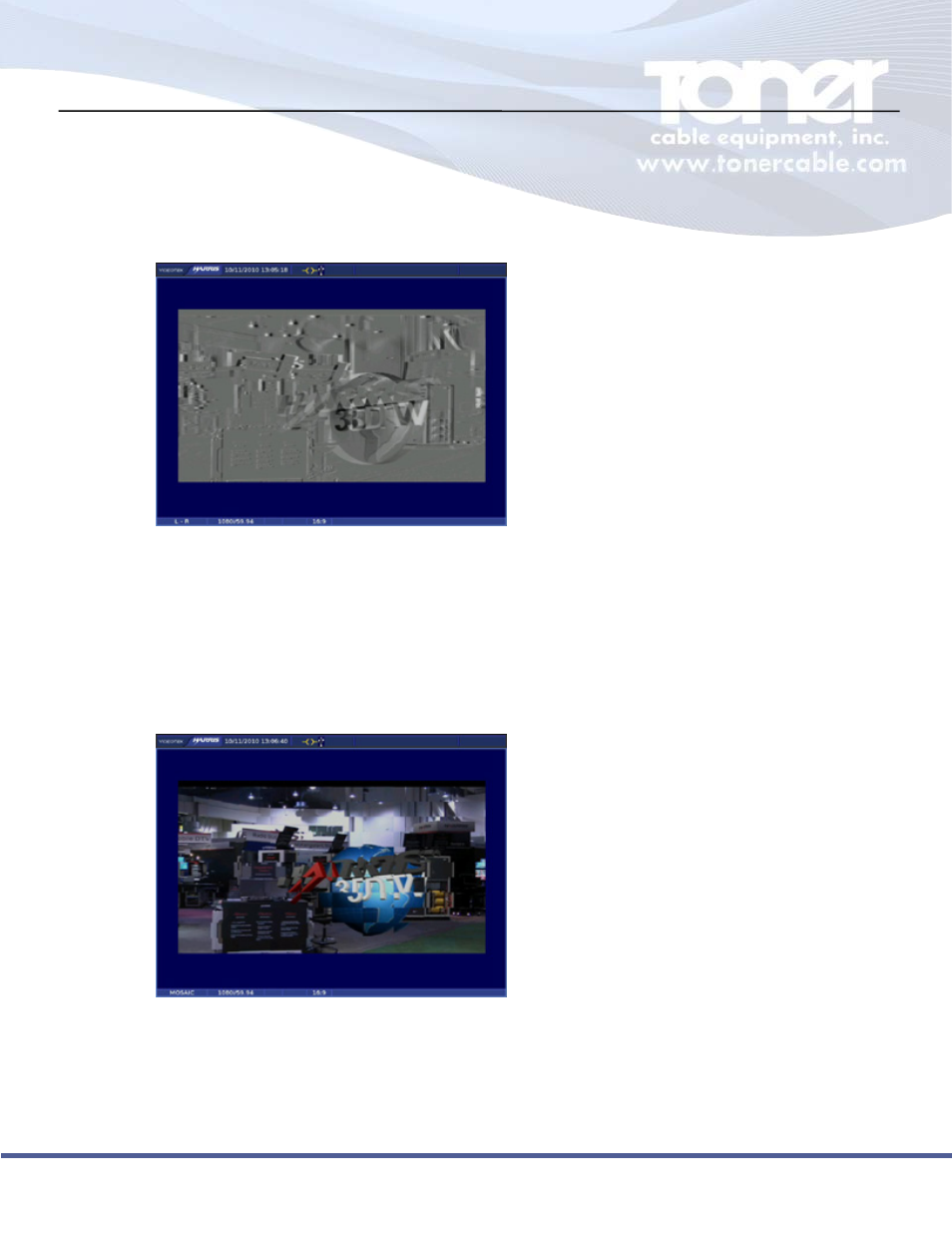

L-R picture display

The Mosaic picture display is useful for catching differences in color/brightness of the left and right
sources. For example, on a surface containing a basic, constant color — such as a wall, a field or the sky
— if the two cameras are matched for color brightness, contrast, etc., the mosaic pattern is not visible; if
the cameras are not matched, the mosaic pattern is easily visible. Also, adjacent mosaic “boxes” will look
more mismatched for parts of a scene containing greater 3D depth. The unit has a vertical and horizontal
adjustment for the mosaic block size, allowing the user to select the optimum block size for making
deterministic evaluation of the signal.



Mosaic picture display

The Mix picture display feature shows a 50/50 mix of the A and B inputs. This mode is useful for seeing
both left and right views superimposed on each other, and therefore instantly highlights the parts of the
scene that have greater 3D depth than others. This view is achieved by performing a 50 percent mix of
the red, green and blue components of the left and right image pairs.
