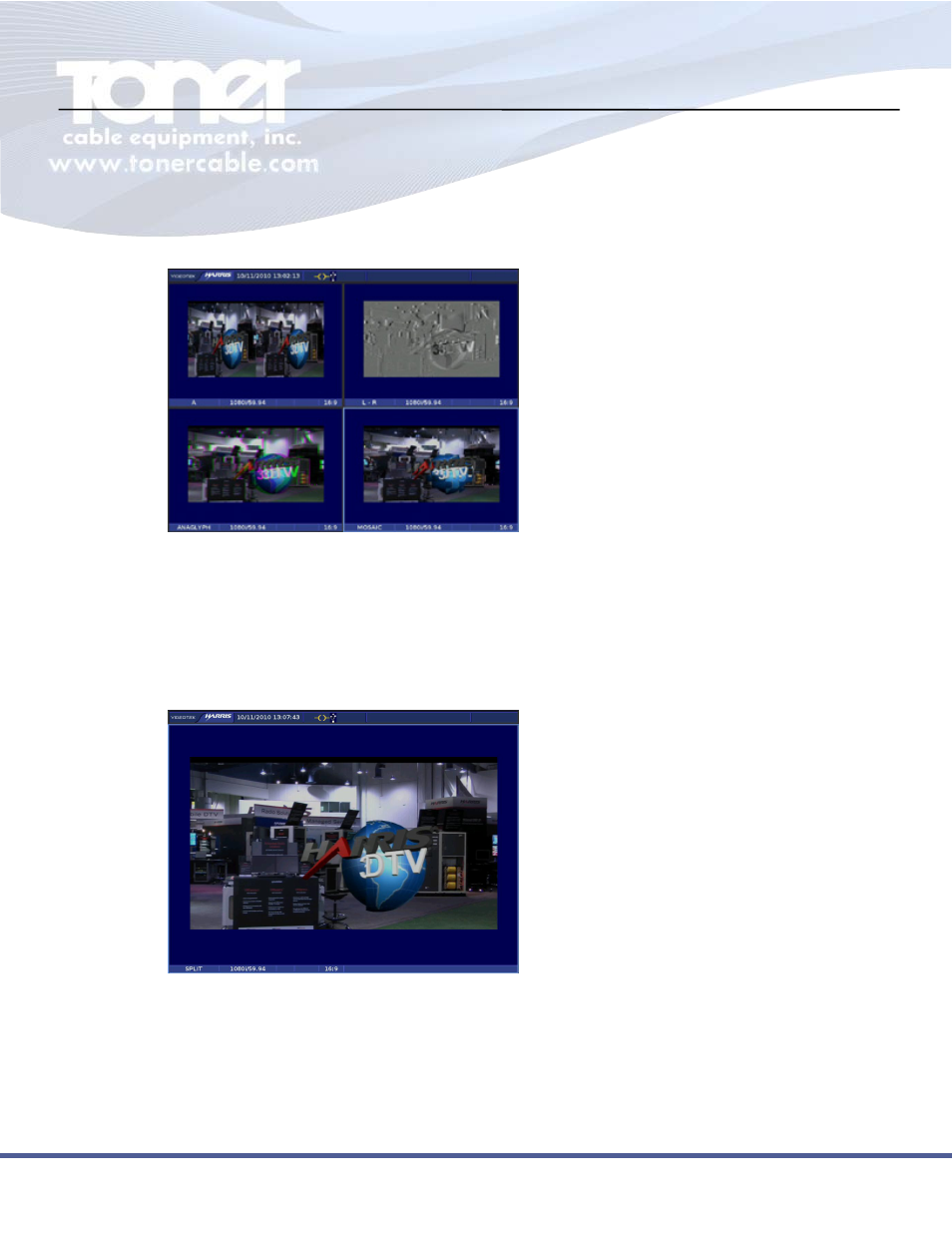

VTM9150 with four different pictures of 3D input
The 3D Analysis option includes the following picture modes: Split, L-R (left minus right), Mosaic, Mix,
and Anaglyph.
The Split picture display is useful for locating vertical misalignment of a stereo camera pair and focus
differences between left and right inputs. The split location is adjustable across the picture, allowing the
user to select the overlap location for determining the best place for alignment.
Split picture display
The L-R picture display is generated by subtracting the luma value of the right source from the luma
value of the left. The result of the subtraction is pure gray if the left and right images perfectly line up.
This function is useful in aligning the 3D camera rig on a test chart, as small differences are easily
discernable.
