12 VEGACOM 557 Siemens
1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8
Multiple plug Basic board

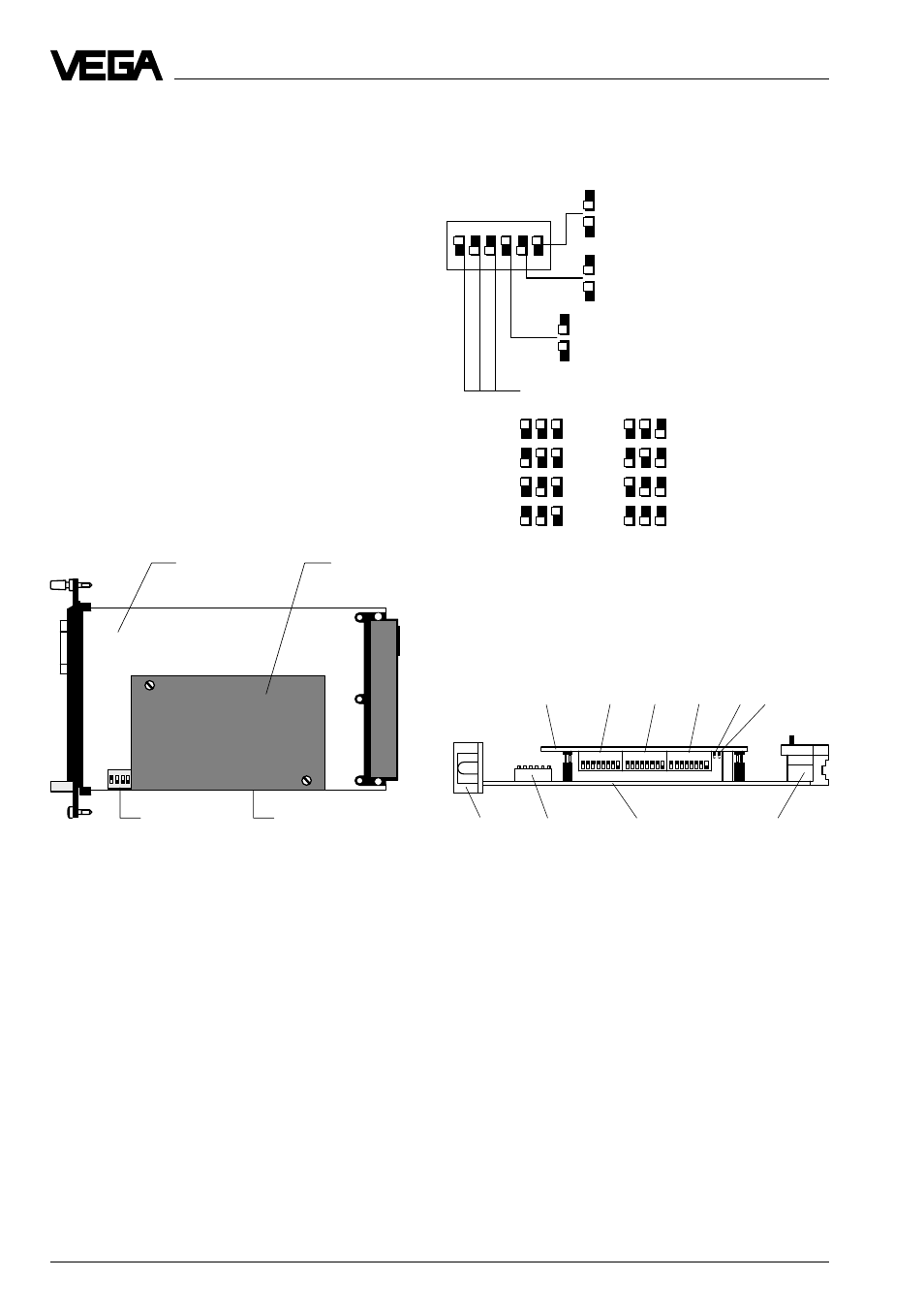

Bottom view of VEGACOM 557
DIL switch
basic board
Front
plate
DIL switch blocks
additional board
Additional
board
2 1
1 2 3
Hook switch
additional
board
1
ON EDG
2 3 4 5 6
even parity
DIL switch basic board
no parity
Transmission rate (baud)
300
600
1200
2400
4800
9600
19200
137.5
On
Off
1. instrument
2. instrument
2 3 4
ON
1
Additional
board
DIL switch
on basic board DIL switch
below additional
board
Basic board
Side view of VEGACOM 557
3 Addressing of the process signals
Adjustment possibilities for DIL switch on basic board
Addressing of the process signals
3.1 Switch adjustments on
VEGACOM 557
For adjustment of the RS 232 PC interface in
the front panel, a 6-pole DIL switch block is
located on the basic board. On the additional
board there are three 6-pole DIL switch
blocks as well as two hook switches which
are used for configuration of the interface to
CP524/525.
Before inserting VEGACOM 557 into the
carrier or the housing, the DIL switches must
be set according to the user-specific data.
The data of this setting will be effective with
the next initialisation (switching on of voltage).
Modem initialisation
Bottom view of the component:
