Installation Guide
Power Monitoring
E50F2, E50F5
TM
These instructions assume the meter is set to factory defaults. If it has been previously configured, check all optional values.
A. To Navigate to the Setup screens:
1. Press
+
+
or
–
repeatedly until SETUP screen appears.
2. Press to get to the PASWD screen.
3. Press to move through the digits. Use the
+
+
or
–
buttons to enter your password (the default is 00000).
4. Press to move to the first Setup screen (S CT)
5. Use
+
+
or
–
to select the parameter screen you want to set.
6. After you set the parameters you want, use
+
+
or
–
to select the next Setup screen or to exit the Setup screens (return to
SETUP
).
B. To Enter the CT (Current Transducer) output voltage and CT size ranges:
1. Navigate to the S CT (Set Current Transducer) Setup screen (see section A above).
2. Press to go to the CT V screen. Use
+
+
or
–
to select the voltage mode Current Transducer output voltage (default is
1.00
).
3. Press to go to the CT SZ screen and through the digits. Use
+
+
or
–
to select the CT size in amps (default is 100). accept
the value and
4. Press to accept the value and go back to the S CT screen.
C. To Enter the service type to be monitored:
1. Navigate to the S SYS (Set System) Setup screen (see section A above).
2. Press to go to the SYSTM screen. Use
+
+
or
–
to select the configuration (see wiring diagrams - default is 3L-1N).
Press to go back to the S SYS screen.
For full setup instructions, see the configuration instructions on the following pages.
Quick Setup
Instructions

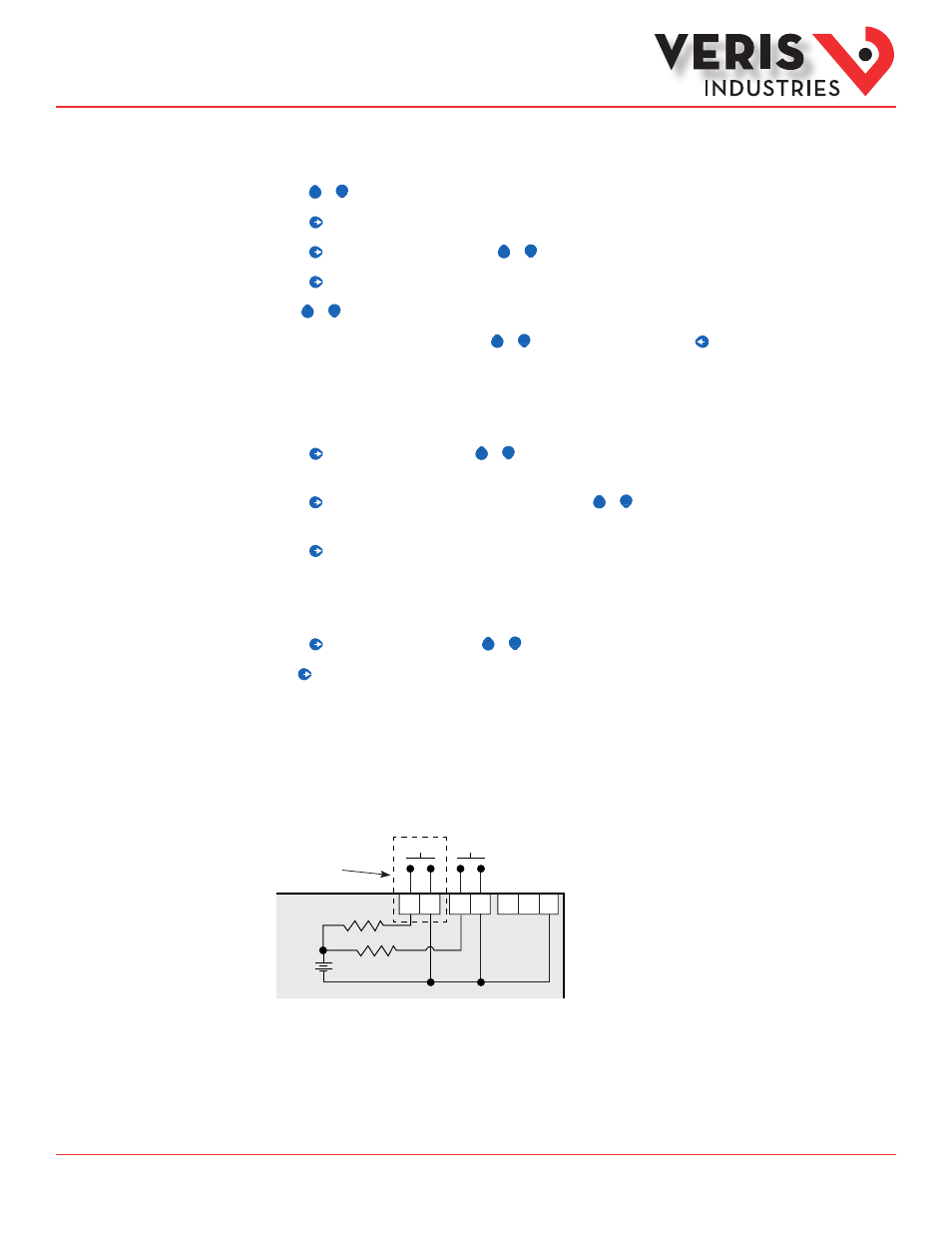

Pulse Contact Inputs
The E50F5 has two inputs with pulse accumulators for solid state or mechanical contacts in other sensors, such as water or gas
flow meters. The E50F2 has one pulse input. These inputs are isolated from the measured circuits. The communication signals,
including the shield terminal, are AC-coupled. Use with contacts that do not require current to remove oxidation.
S
Comm
Output
+
~10 kΩ
Comm
Ground
4-10 VDC
nominal
Equivalent
Circuit
Pulse Input
Contacts
E50F5 only
