Application Notes

When measuring the DC current of a
flame controller, follow the steps
under “Measurement Procedure”
above and then proceed with the
following:

•

Set up the meter for
making a µA measurement.

•

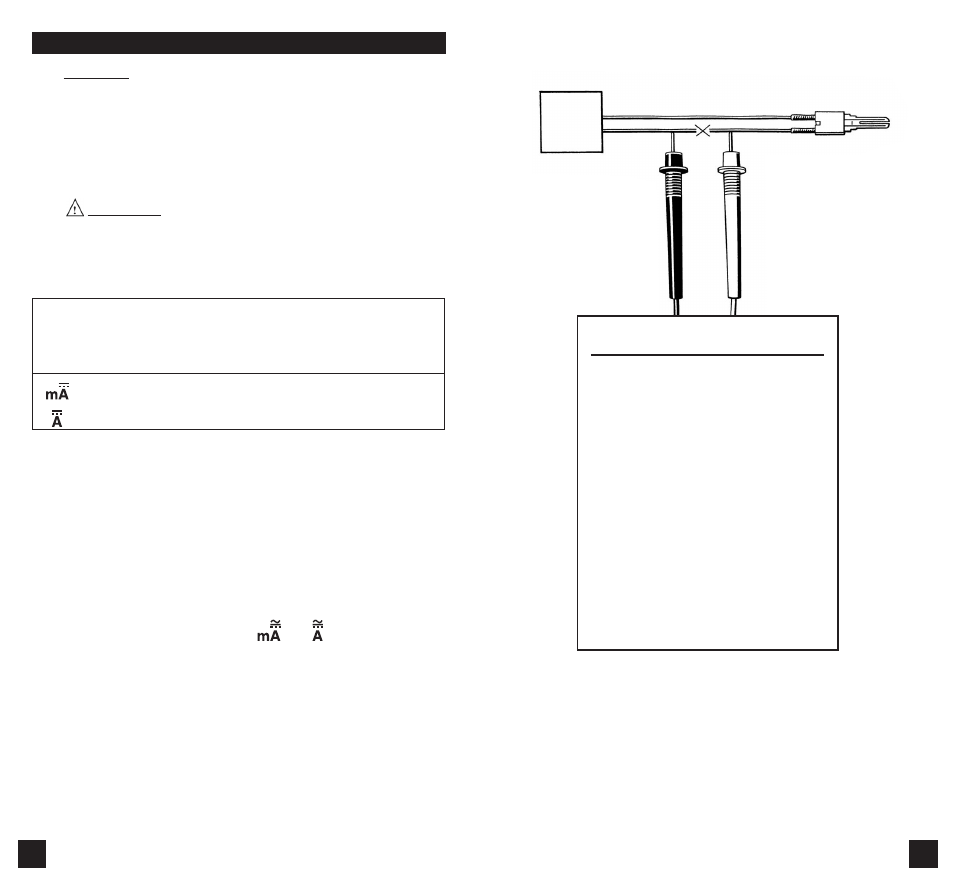

Connect the meter to the flame
controller lead by opening the
circuit and inserting the leads in
series with the circuit as shown
in the picture above.

c. Measuring DC Amps

CAUTION

Do not attempt to make a current measurement with the
test leads connected in parallel with the circuit to be
tested. Test leads must be connected in series with the
circuit.

WARNING!

Do not attempt to make a current measurement of circuits
with more than 600V present. Instrument damage and/or
personal injury may result.

Instrument set-up:

FUNCTION

BLACK

RED

MINIMUM

MAXIMUM

TEST LEAD

READING

COM

0.001mA 500.00mA

COM

0.0001A

10.000A

Measurement Procedure:

1. Disconnect power to circuit to be measured.

2. Plug black test lead into the

COM

input jack.

3. Plug red test lead into the

input jack depending

on the value of current to be measured.

4. Set the rotary switch to the

function.

5. Connect the test leads in series to the circuit to be

measured.

6. Reconnect power to circuit to be measured.

7. Read the current on the LCD.
