b. Measuring AC Volts

CAUTION

Do not attempt to make a voltage measurement if a test
lead is plugged in the A or umA input jack. Instrument
damage and/or personal injury may result.

WARNING!

Do not attempt to make a voltage measurement of more
than 750V or of a voltage level than is unknown.

Instrument set-up:

FUNCTION

BLACK

RED

MINIMUM

MAXIMUM

TEST LEAD

READING

COM

0.0001V

750.0V

Measurement Procedure:

1. Disconnect power to circuit to be measured.

2. Plug black test lead into

COM

input jack.

3. Plug red test lead into the

input jack.

4. Set the rotary switch to the

ACV

function depending on

the voltage to be easured.

5. Connect test leads to circuit to be measured.

6. Reconnect power to circuit to be measured.

7. Read the voltage on the LCD.

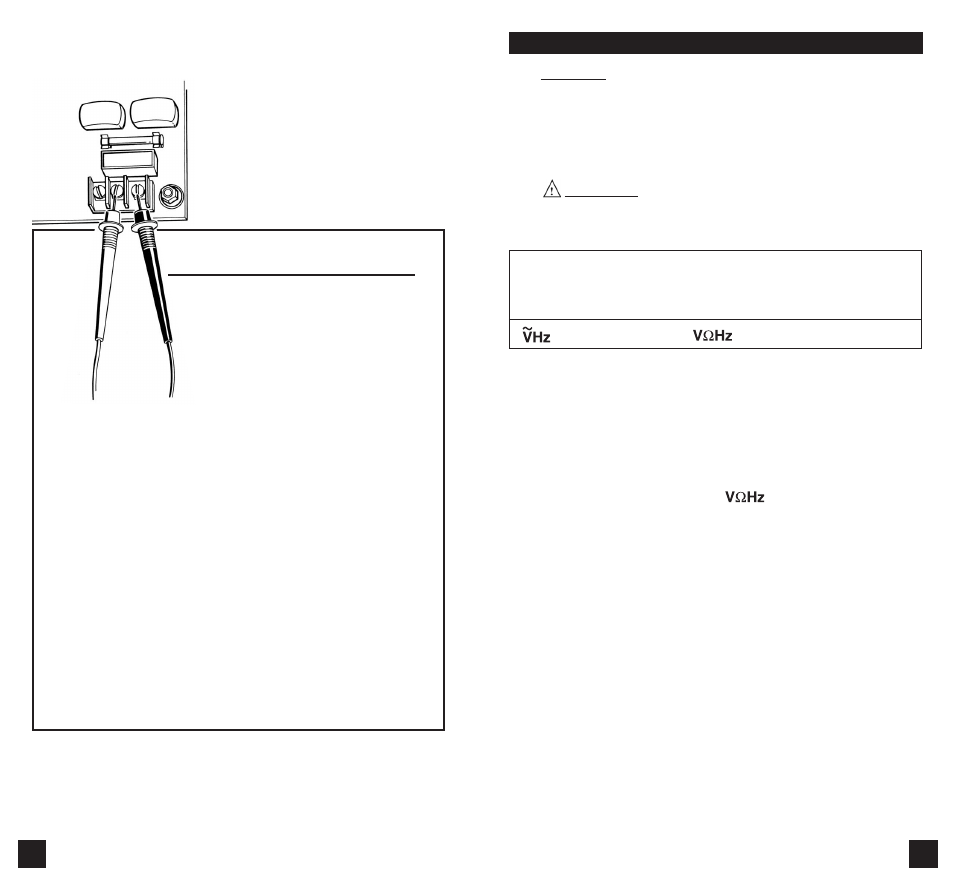

Application Notes

Disconnect power from the terminal

block, find the fuse or circuit breaker

that controls the block and turn it

off.

Set up the meter following the

steps under “Measurement

Procedure” on page 13. Then proceed with the
following:

•

Connect the red test lead to the hot side of the
block and the black lead to the neutral side of the
block. Reconnect power to the block and read the
voltage on the meter. The reading should be
approximately 110V to 130V.

•

Disconnect power from the block and move the
red wire to ground. Reconnect power to the block
and read the voltage on the meter. Typically less
than 20V should exist from neutral to ground. If
110V or above exists, the block may be wired
incorrectly.
