33

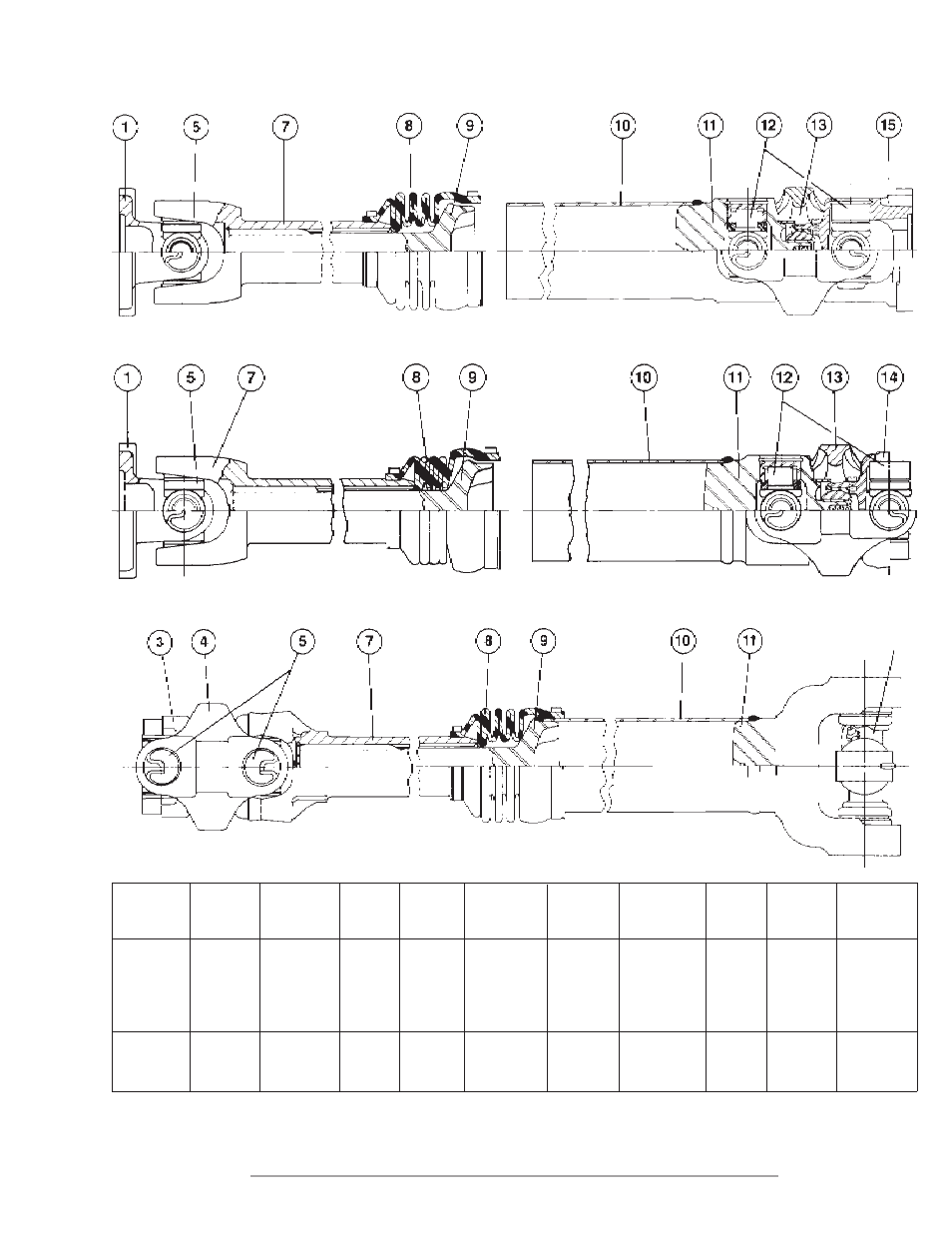

UNWELDED ASSEMBLY COMPONENT DRAWINGS
Fig. P
Fig. Q
9 10 11 12 13 14 14A 15
Tube Tubing ✦ ✦ ✦ ✦ ✦ Ball Stud U-Joint Kits Center Socket Yoke Slip Yoke Flanged Socket CV Head End Yoke Bolts
Shaft Tube Yoke 2 Req'd Yoke (Centering kit) Assembly Yoke Assy.
Numbers 1-15 by components refer to corresponding numbers on assembly drawings on pages 30-31.
✦ ✦ ✦ ✦ ✦
- Refer to Application section for appropriate tube length.
2-40-1851 20-30-22 2-28-2887X 5-278X 2-26-497 211544X — — 915621 — —
2-40-1771 10-32-92 2-28-2807X 5-278X 2-26-497 211544X — — 915628 — —
2-40-1701 16-30-102 2-28-2867X 5-278X 2-26-497 211544X — — 915629 — —
2-40-1851 20-30-22 2-28-2137X 5-213X 2-26-527 211996X — — 918623 — —
2-40-1701 16-30-102 2-28-2867X 5-278X 2-26-497 — — 211452X 915627 — —
2-40-1701 16-30-102 2-28-2867X 5-278X 2-26-497 — — 211545X 915627 — —
2-40-2301 20-30-12 2-28-2407X 5-443X 2-26-457 — — 211489X 913797 — —
2-40-2301 20-30-12 2-28-2407X 5-443X 2-26-457 211342X — — 912442 — —
Fig. R
