HOW TO SERVICE DOUBLE CARDAN SOCKET YOKE ASSEMBLIES
1. Determine if assembly is Greasable (with lube fitting) or Non-Greasable
2. Determine style (End Yoke style or Flanged style)
3. Refer to chart below to determine Socket Yoke part number

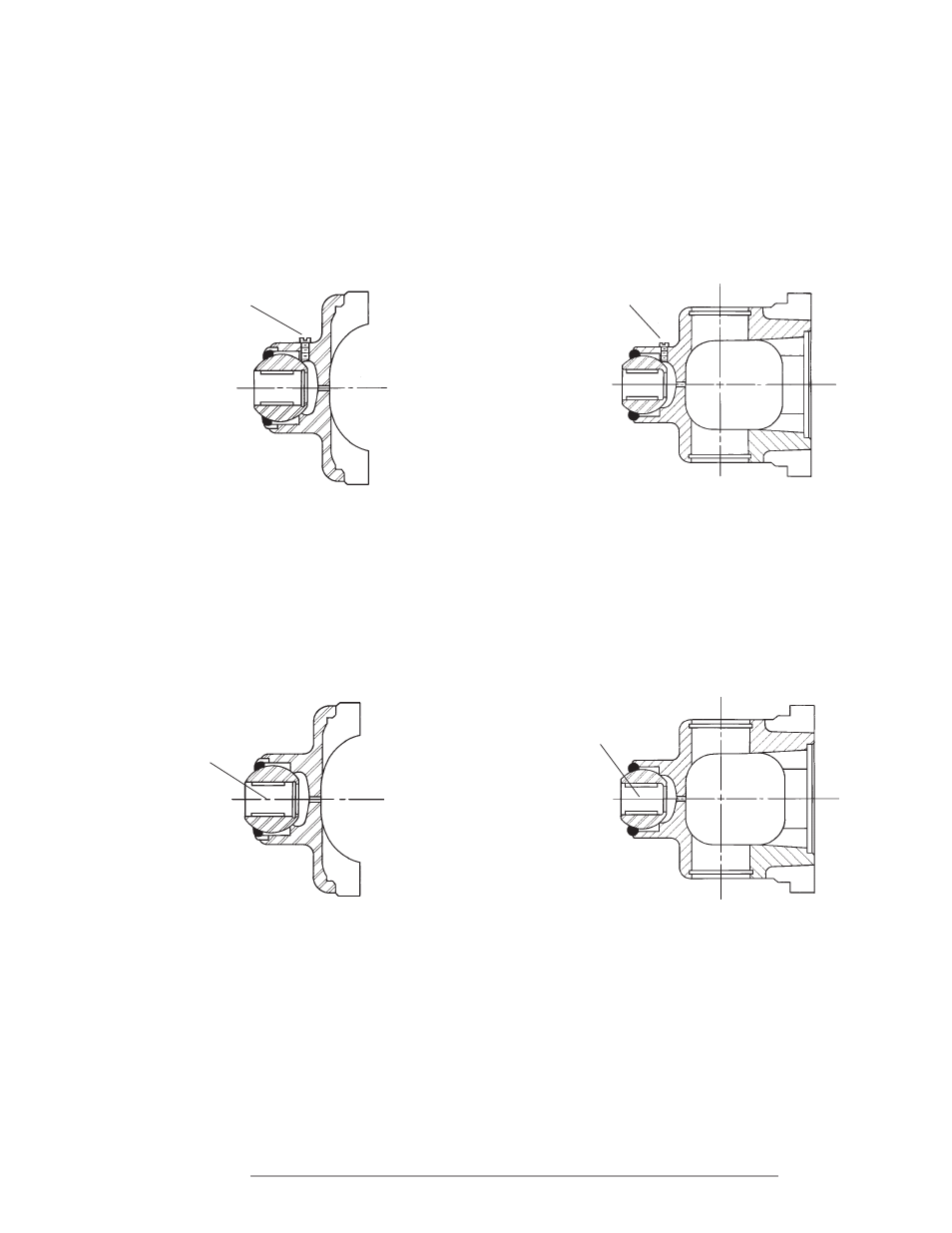

End Yoke Style Socket Yoke
Lube Fitting
Greasable Style
Non-Greasable Style
Greasable Style
When servicing driveshafts with
non-greasable socket yokes,
pack this cavity with grease
before assembly.
Non-Greasable Style
Flanged Style Socket Yoke
When servicing driveshafts with
non-greasable socket yokes,
pack this cavity with grease
before assembly.
Lube Fitting
