32

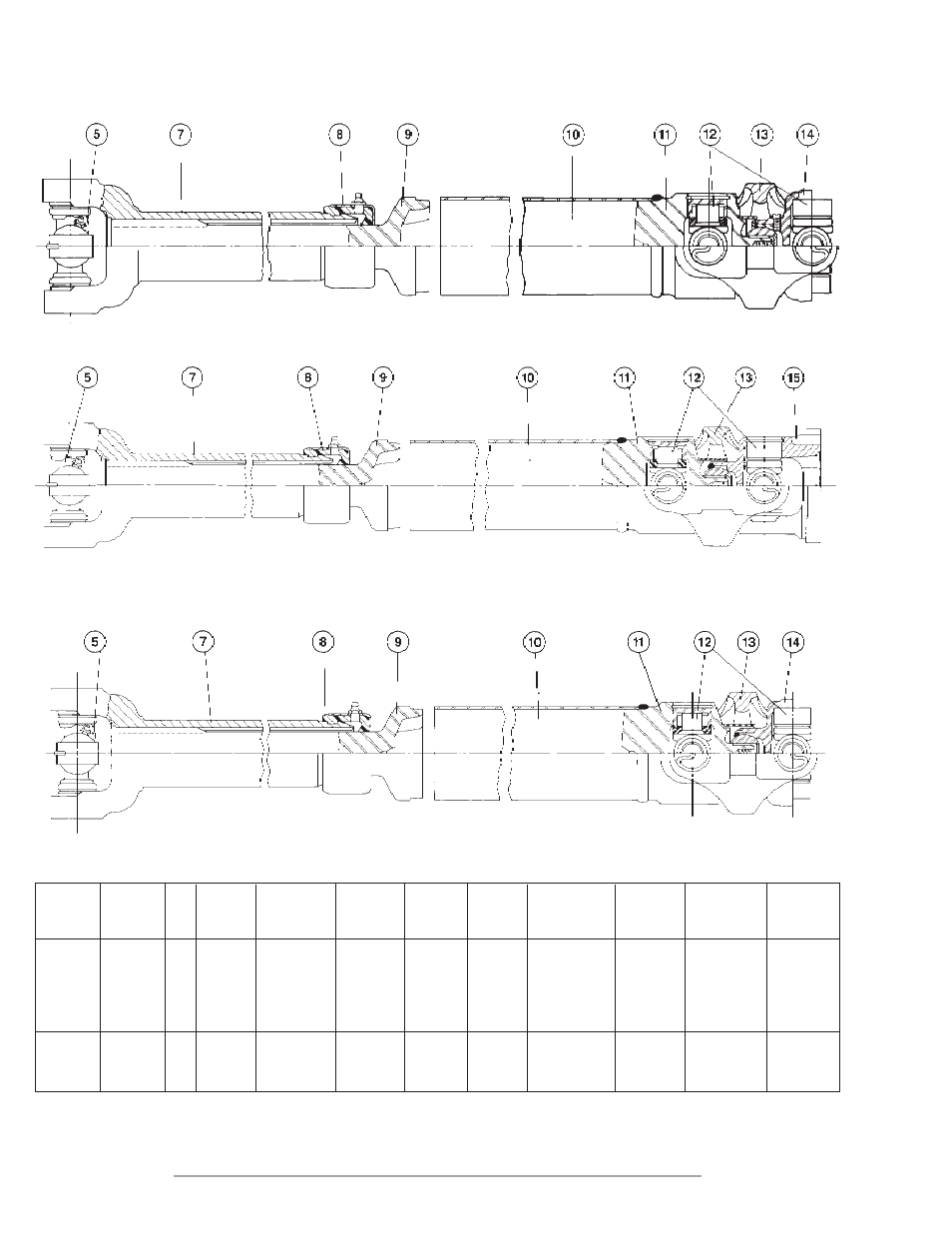

UNWELDED ASSEMBLY COMPONENT DRAWINGS
BILLS OF MATERIAL
Fig. M
Fig. N
Fig. O
1 2 3 4 4A 5 6 7 8
Part Flange Flanged Socket Socket Yoke Center Tube U-Joint Ball Stud Slip Yoke Dust Cap Kit
Number Series Fig. Yoke Yoke (Centering Yoke Yoke Socket Yoke Assembly or
(Centering Kit) Kit) Assembly Boot Kit Ass'y.
Numbers 1-15 by components refer to corresponding numbers on assembly drawings on pages 30-31.
lIndicates driveshaft assemblies with non-greasable socket yoke assemblies.
909363 1310 M — — — — — 5-153X — 2-3-8021KX 211121X
909364 1310 M — — — — — 5-153X — 2-3-8841KX 211256X
909365 1310 M — — — — — 5-153X — 2-3-8001KX 211121X
l 911818 1330 O — — — — — 5-1204X — 2-3-8041KX 211121X
913971 1310 N — — — — — 5-153X — 2-3-8001KX 211121X
l 916870 1310 N — — — — — 5-1306X — 2-3-10621KX 211121X
l 919976 1210 P 2-2-1049 — — — — 5-443X — 2-3-8961KX 211256X
l 919990 1210 Q 2-2-1049 — — — — 5-443X — 2-3-8961KX 211256X
