42

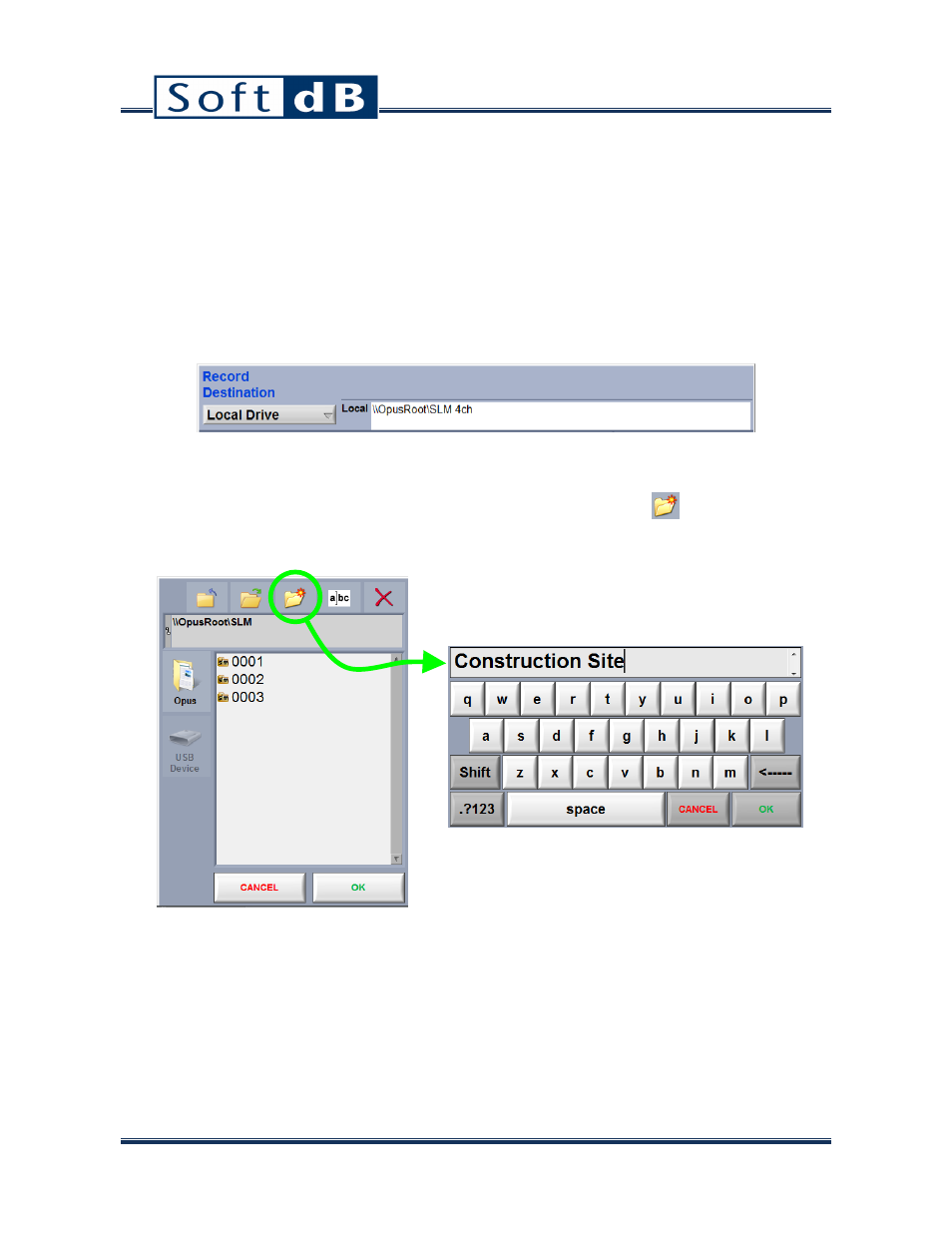

8.1 Record Destination

Obviously, the measurements can be saved on the local drive. These data are recorded in a format
compatible for post-processing (either the Opus SLM-4ch module or the SLM Data Analyzer). A more
advanced feature also allows saving the measurements on remote location on the Web. The data
sent to the Web use a dedicated format for easier Web monitoring, but the data are also compatible
with the SLM Data Analyzer.

8.1.1

Record on the local drive

When Local Drive is selected, only the local record directory is available to modify. This directory
contains the recorded DataSets. To edit the directory, simply click on the field. It is a good practice to

create a new directory for each measurement session by clicking on the

icon of the explorer

dialog.

8.1.1.1

Data Format on the local drive

Each set of data saved in the Record Directory are saved under a specific folder called DataSet that
contains:

Measurement data file (.slm4)

Associated audio files (.wav or .mp3)

Associated photo files (.jpg)
