35

7.2.8

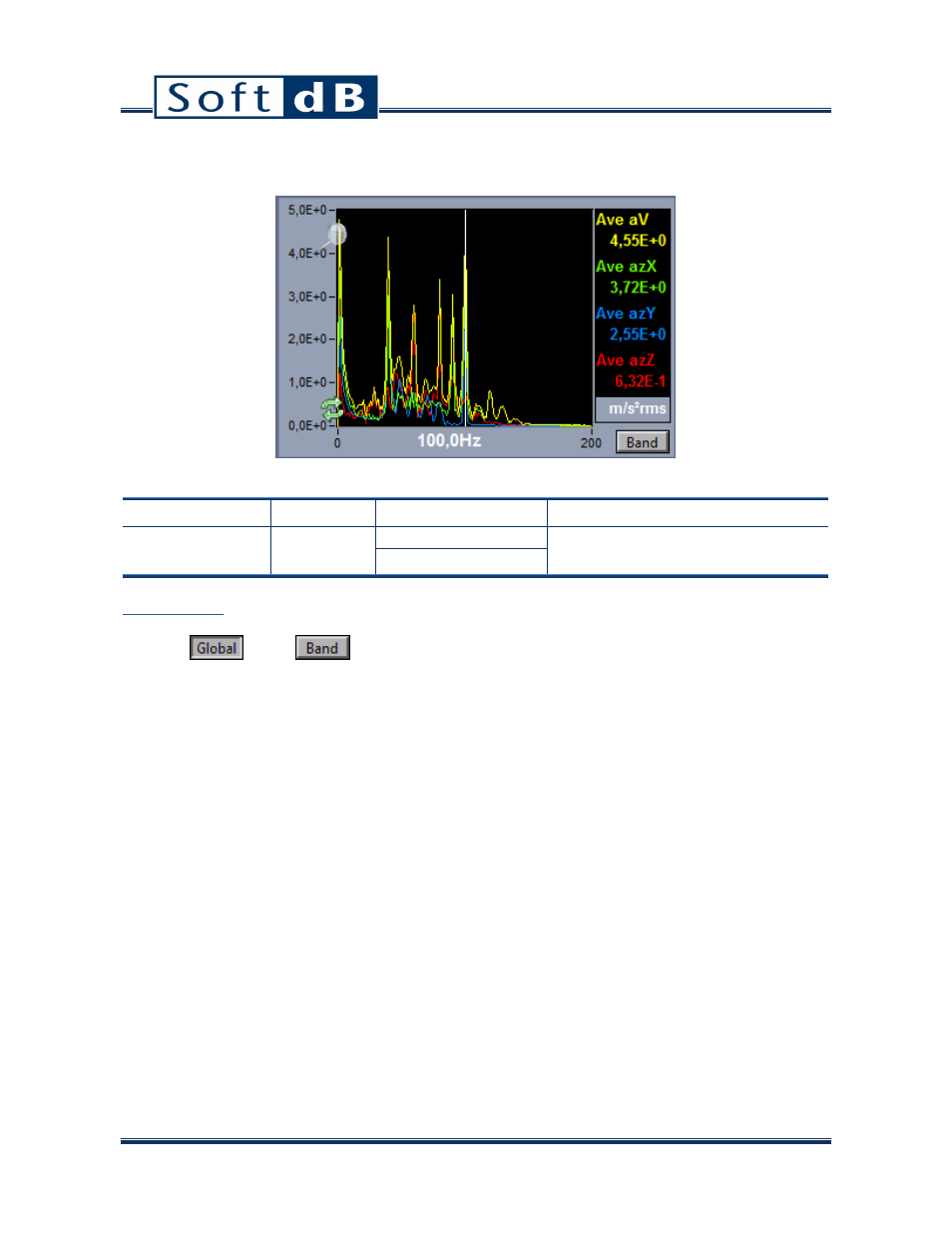

Vibration FFT Spectrum Graph

Available data

Data Type

Input

Display Parameter

Freq Weighting

Vibration FFT

spectrum

X, Y, Z or

SUM XYZ

Instant

For details, see the section 6.2.6, p.24

Average

Legend Values

Selecting

versus

on a FFT Spectrum graph displays either the Global value or the

Band value (associated to the cursor) on the Legend (see section 5.5.3.1, p. 16).
