28

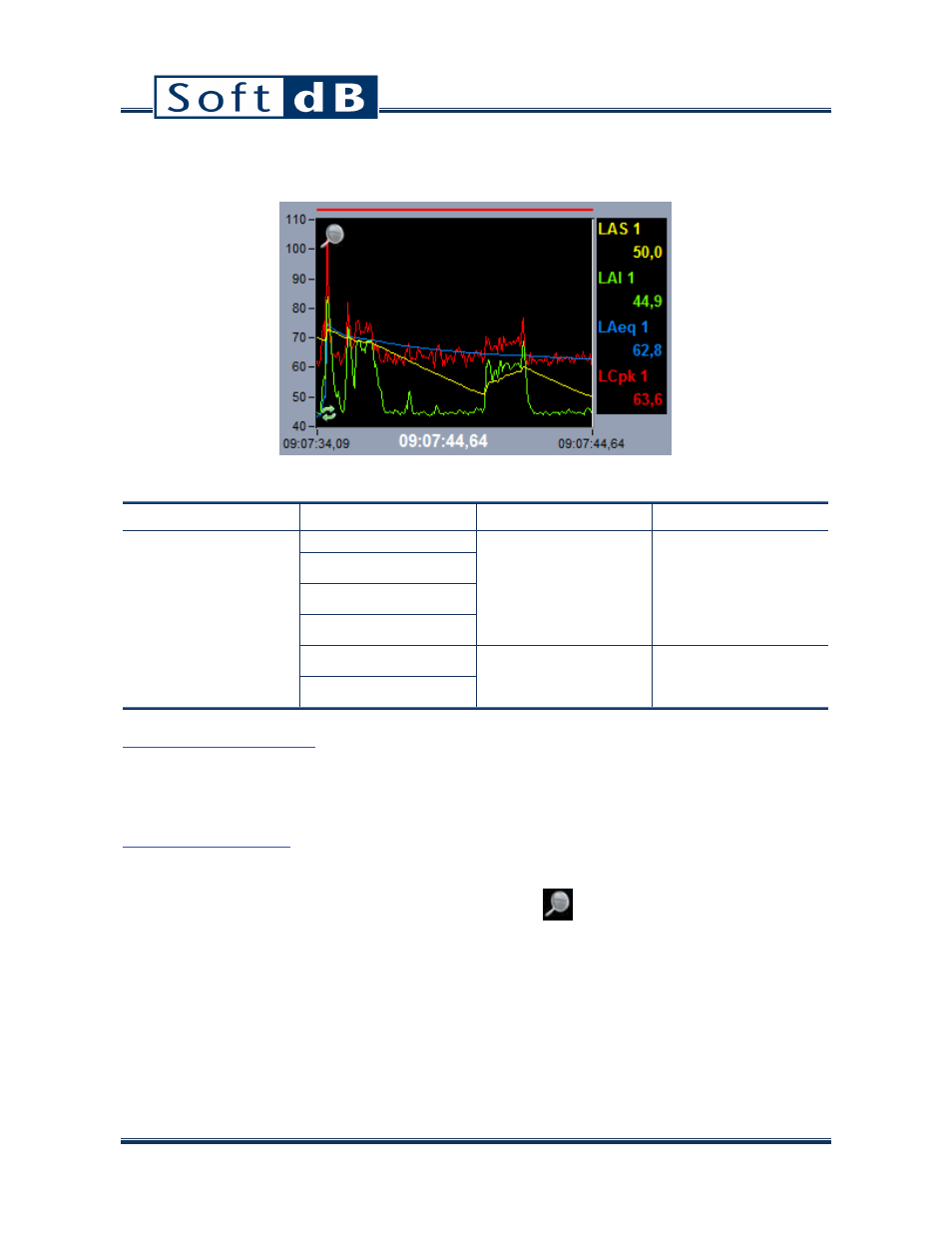

7.2.1

SLM Historic Graph

Available data

Data Type

Time Weighting

Freq Weighting

Display Type

SLM Global level

SPL Slow

A, C or Z

Instant, Max or Min

SPL Fast

SPL Impulse

SPL Peak

Leq

A, C or Z

Running Average

SEL

Length of the historic graph

The historic displays the last 1000 measured samples. Past samples may be displayed once the
acquisition has been stopped (see section 5.5.3.1, p. 16).

Wav recording indicator

If an audio record was recorded during the measurement, a red line will be displayed on the top of

the historic graph. To listen to the recorded file, click on the

icon to access the magnified view of

the Historic Graph and its audio record controls (see section 5.5.4, p. 17).
