7.3 Display Data Selection

The Edit button of the Data Selection allows selecting the data to display on each display zone.

The data selection panel is different for a SLM display (section 7.3.1) and for a vibration display
(section 7.3.2).

7.3.1

SLM Data Selection

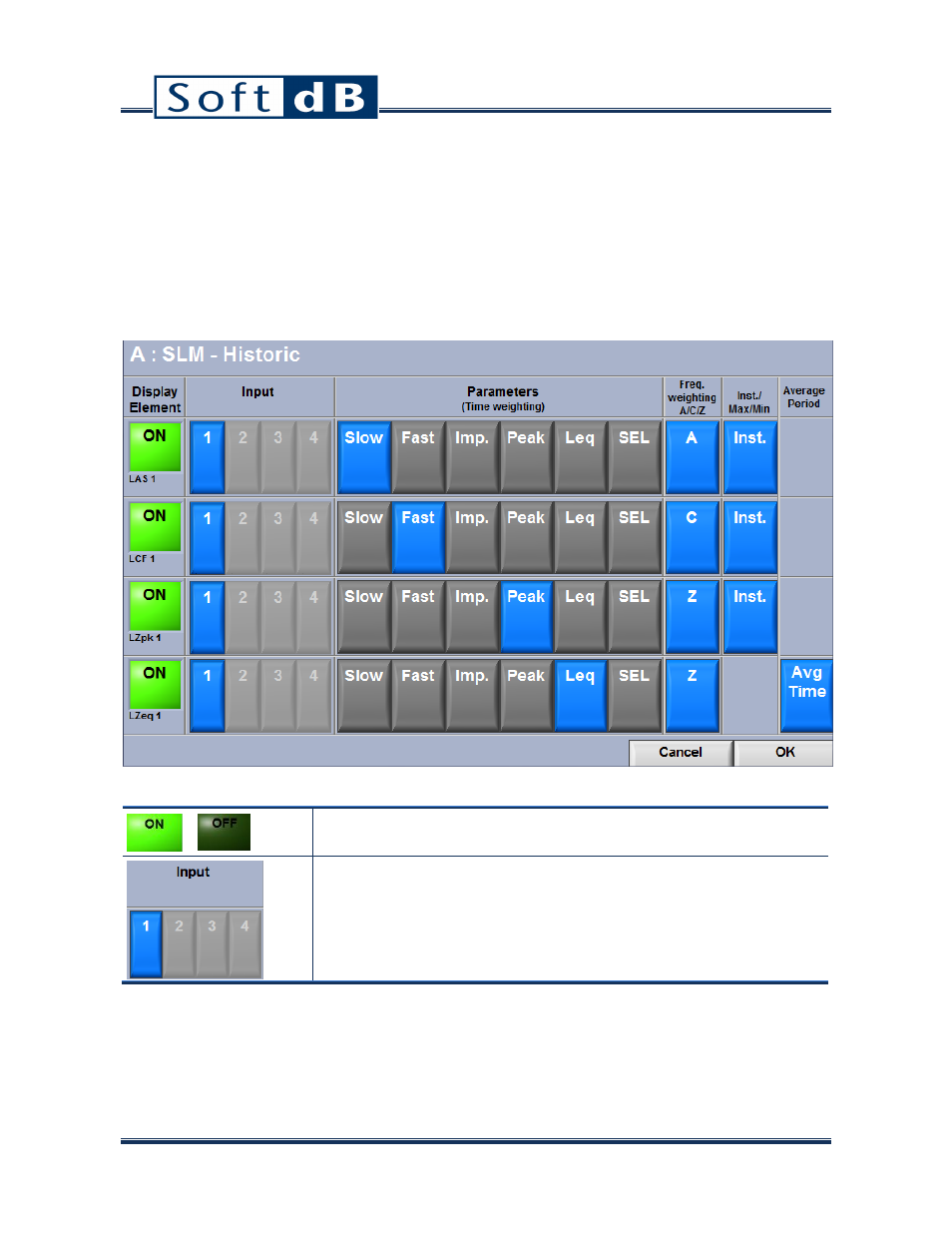

The Display Element Enable enables or disables an element in the
display. Each display zone can have up to four elements.

The Input Channel select input to display. Only enabled inputs will be
available (see section 6.1.1). In the SLM & 3Vib application, only the
input 1 is available for the SLM part.
