14

5.5 Display Area

One, two or four graph areas can be displayed in the Display Area. During a measurement, data is
displayed in real-time.

For each graph area, five types of display can be selected:

Historic Graph (see section 7.2.1 p. 26)

1/3 Octave Band Spectrum Graph (see section 7.2.2 p. 29)

FFT Spectrum Graph (see section 7.2.3 p. 30)

Numerical Indicators (see section 7.2.4 p. 31)

Statistics Graph (see section 7.2.5 p. 32)

Each of these displays can show up to four different elements. The

button allows

selecting the desired display configuration (see section 7, p. 25).

Note: The display updates up to every 1/4 s.

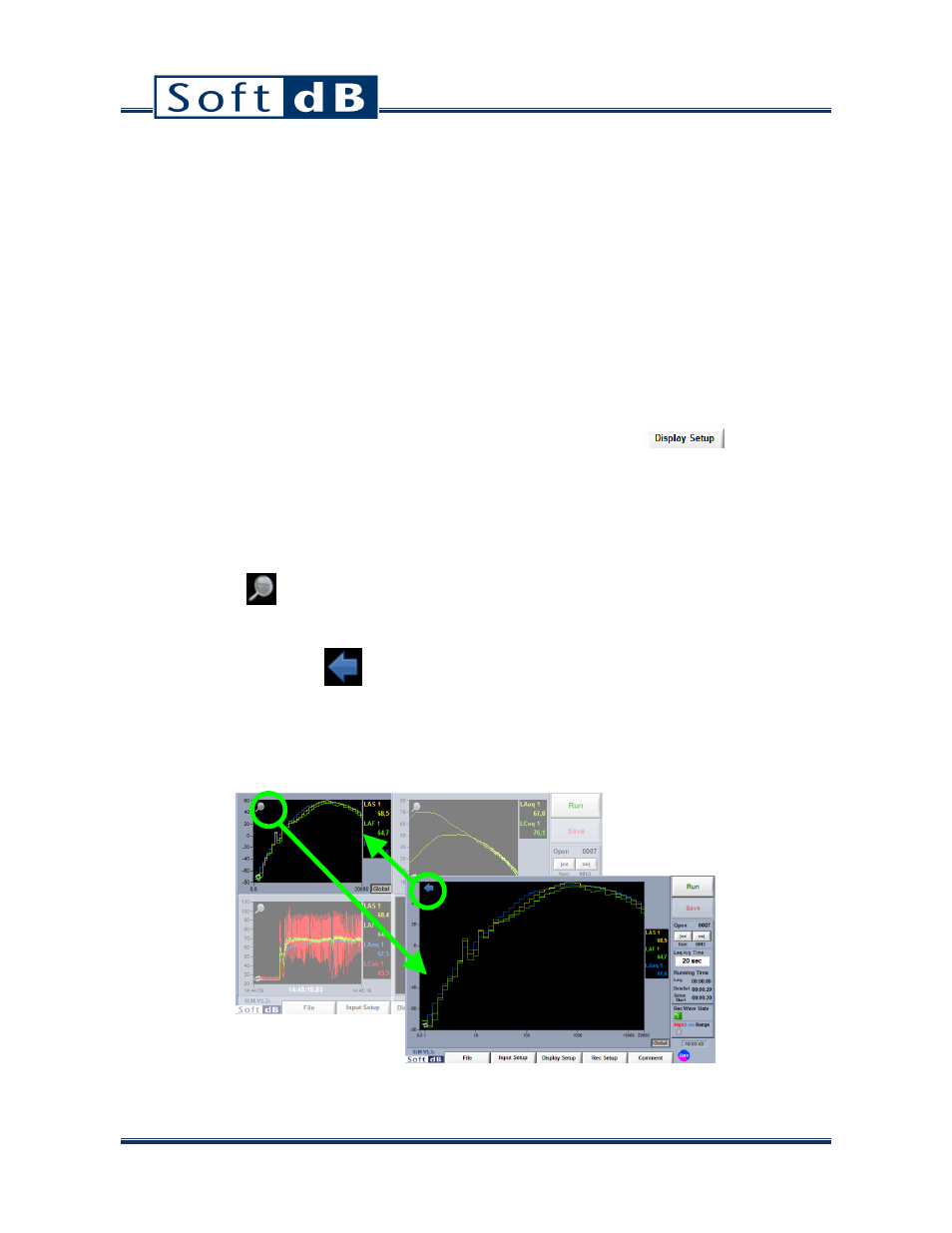

5.5.1

Magnifier

Each graph has a

icon at the top left corner. Clicking on this icon makes the graph appear on a

magnified display.

The magnified display has a

icon at the top left corner. Clicking on this icon returns the graph

to its initial size and position.

The magnified view of a Historic graph contains the controls allowing listening to audio files (see
section 5.5.4, p. 17).
