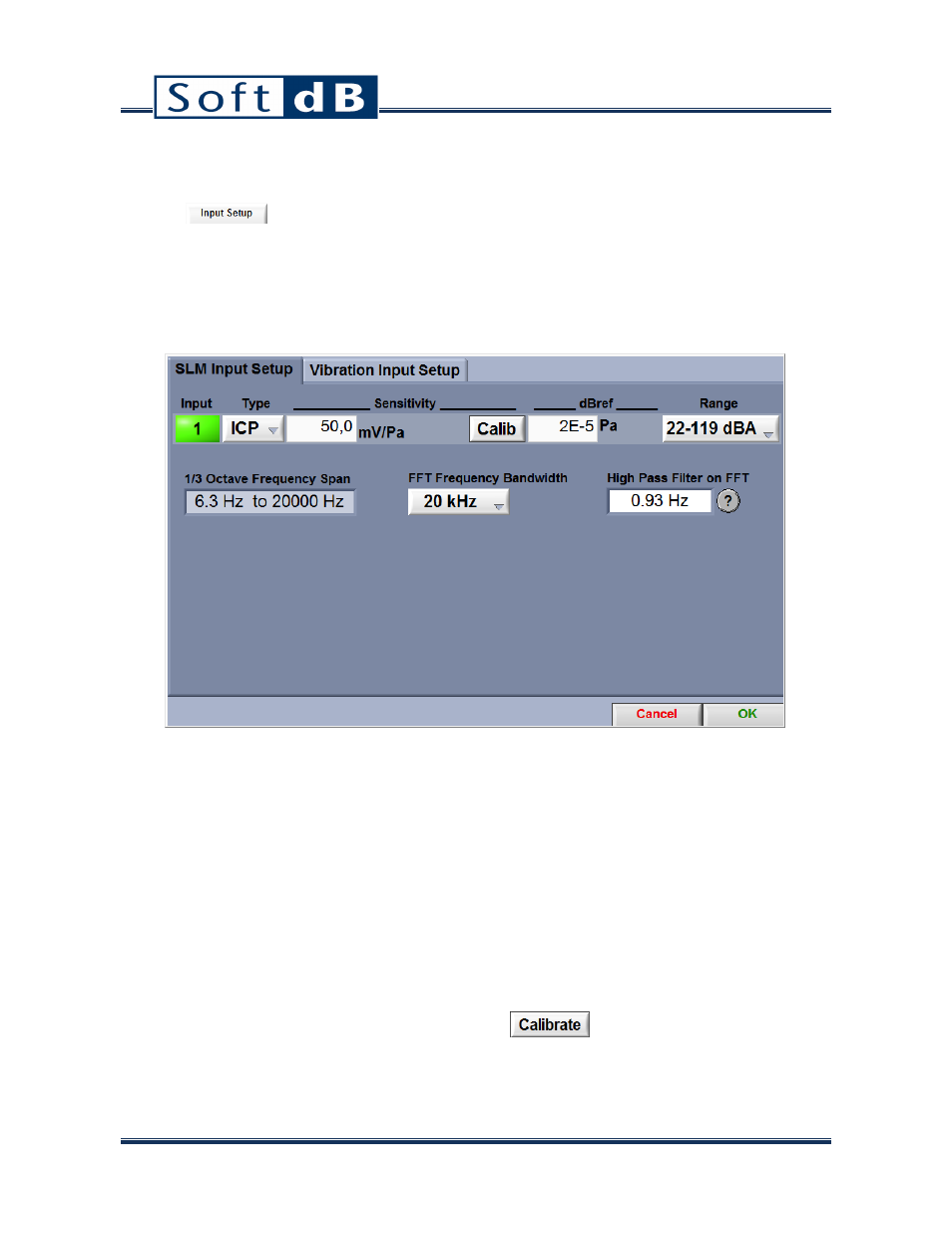

6 Input Setup

Click the

button on the main interface to launch the Input Setup interface.

The Input Setup includes the SLM Input Setup (section 6.1, p.19) and the Vibration Input Setup
(section 6.2, p.22).

6.1 SLM Input Setup

6.1.1

SLM Input Selection

The SLM and Vib application uses its first input to perform SLM measurements. Click on the input
button (at the right of the window) to enable (light green) or disable (dark green) the SLM input.

6.1.2

SLM Input Type

The available input types are AC and ICP sensors. The sensors provided by Soft dB are normally ICP
microphones.

6.1.3

SLM Input Sensitivity and Calibration

The input sensitivity can be manually changed in the text field or it can be calibrated using the

calibration function and a sensor calibrator. Click the

button to launch the Calibration

Interface.
