Technical Data
ca.80
ш 30
35
50
ш 8
1/4"NPT
ø 12
LA 1S
LA 25S
290
LA1 LA 25S
sample gas
F-..-D/FSS-..-D
universal filter sample gas
115
G1/4"
G1/4"
sample gas
sample gas
LA 1S
LS/LA
120
LA 25S
sample gas
sample gas
Liquid sensors LA 1S, LA 25S, LA 1 and LA 25
Liquid alarm sensors LA 1S and LA 25S with flow
chamber LS and LS 25
Liquid sensors LA 1S and LA 25S in universal
filter F..-..-D and FSS-..-D

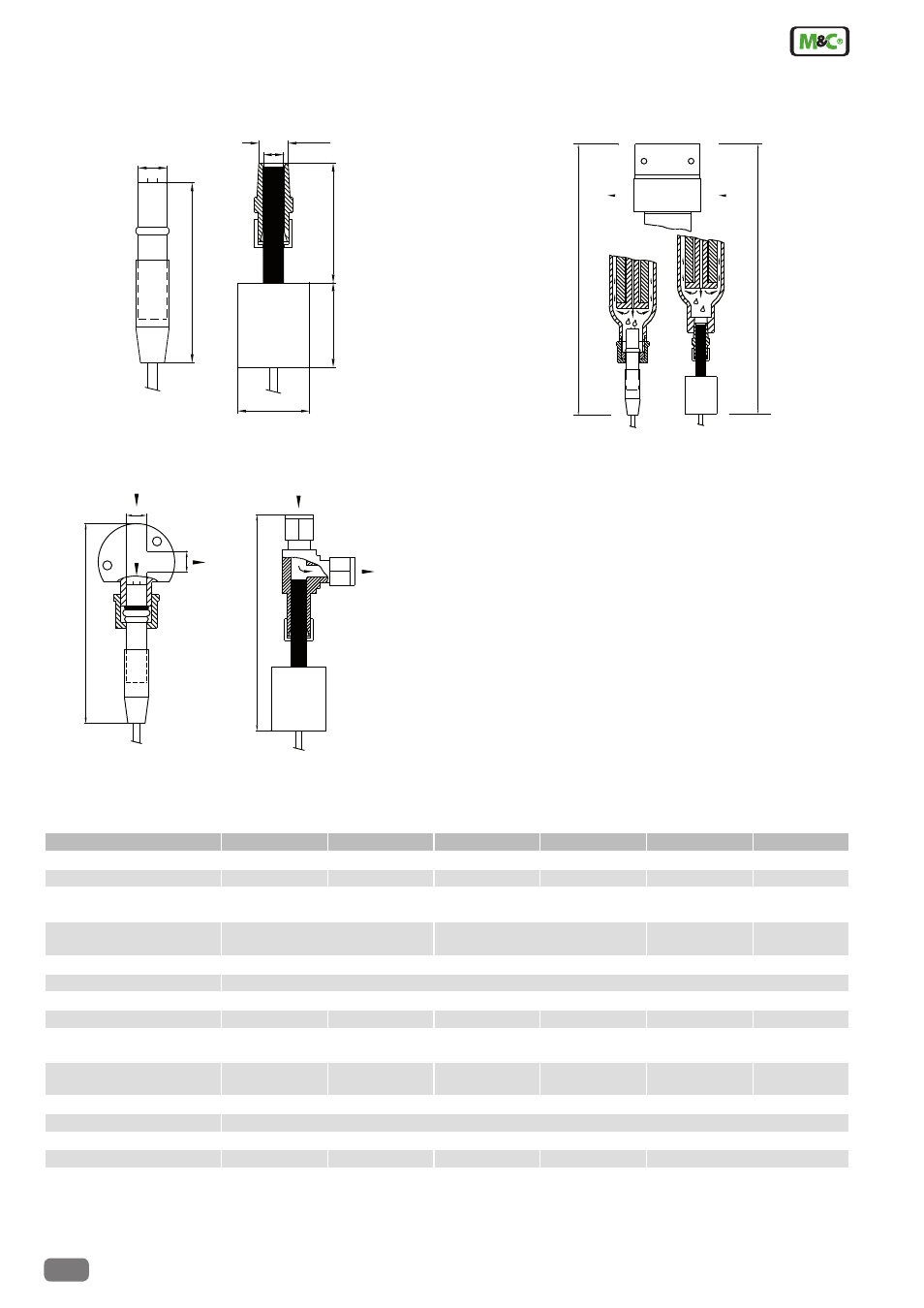

Dimensions
Dimensions in mm
Sensor series LA ® LA 1S LA 25S LA 1 LA 25
Flow chamber LS LS 25
Part Number 03 E 1001 03 E 3100 03 E 1111 03 E 1120 03 E 1000 03 E 1110
Connection cable
ø 4,2 mm, 2-core 4 m
each additional meter of connection cable = part No. 03E 9001 (03 E 9000 for LA 1 and LA 25), total max. 100 meters
Pressure 0-4 bar g**** 0-25 bar g* (up to 100 bar g*) 0-4 bar g**** 0-25 bar g* (up
to 100 bar g*)
Flow 0-1000 l/hr
Operating temperature +80 °C ***
Gas connections ø12 mm G 1/4" i 1/4" NPT a ø8 mm** ø12 mm 1/4" NPT a
Stagnant space, approx. ca. 3 ml ca. 3 ml
Material of sample
contacting parts*** glass, platinium PVDF,
FPM SS 316Ti
PVDF SS 316Ti glass, platinium SS 316Ti
PVDF
Type of mounting clamping attach-
ment wall screw on pipe clamping attach-
ment screw on
Mounting position vertical
Electrical conductivity >50 µS/cm
Weight 50 g 60 g 140 g 100 g 50 g 140 g
Line break monitoring yes yes no
Operating in ex-areas no yes no yes
