M&C TechGroup Germany GmbH • Rehhecke 79 • 40885 Ratingen • Germany

[email protected] • www.mc-techgroup.com • Fon +49 2102 935-0 • Fax +49 2102 935-111

7.11

Technical specifications and illustrations are without

obligation, subject to modifications. 10.03/11.06

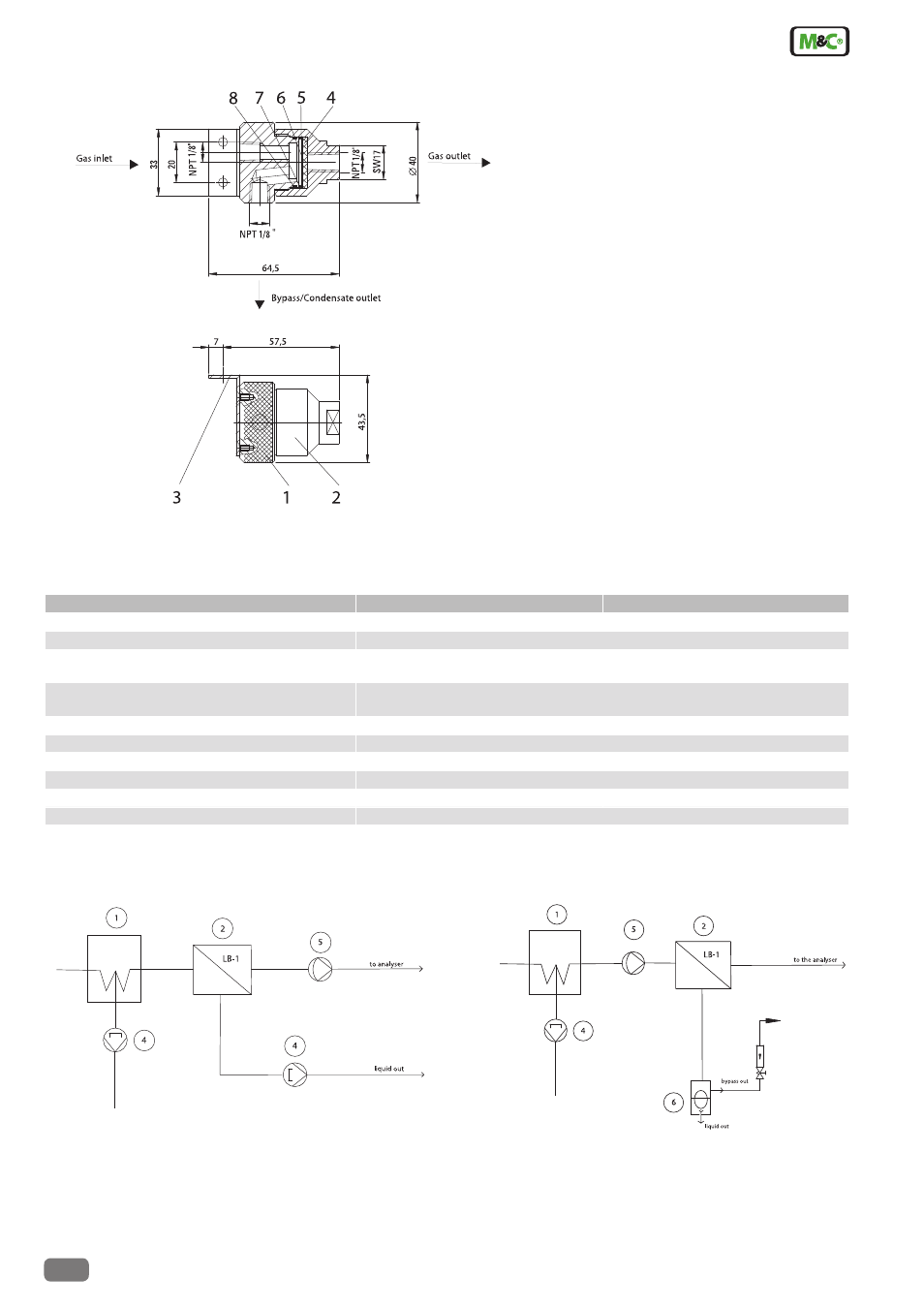

1 Upper part of housing
2 Lower part of housing
3 Holding angle
4 Glass filter frit
5 Hydrophobic protective membrane
6 Flat ring of Teflon
7 O-ring FPM
8 O-ring FPM

Dimensions

Dimensions in mm

Technical Data

Examples for application

1 Gas cooler
2 Liquid-stop LB-1
4 Liquid drain with peristaltic pump SR25.1
5 Gas sample pump
6 Seperator and automatic liquid drain ADS-SS

Liquid-stop

LB-1PV

LB-1SS

Part No.

03F4005

03F4000

Gas flow

max. 200 Nl/h

Gas pressure

0,3-2 bar abs.
∆P max. 0,5 bar

0,3 -10 bar abs.
∆P max. 0,5 bar

Differential pressure with clean
protection membrane, medium air, 20°C

50 100 mbar
100 200 Nl/hr

Temperature sample gas

max. +80 °C

max. +100 °C

Ambient temperature

0 °C to +60 °C

Storage temperature

-25 °C to +80 °C

Stagnant space

4 ml

Material of gas bearing parts

PVDF, FPM, PTFE, Polyester, glass

1.4571, FPM, PTFE, Polyester, glass

Sample gas / drain connections

NPT 1/8"i DIN ISO 228/1

Mounting / weight

wall mounting / approx. 0,3 kg
