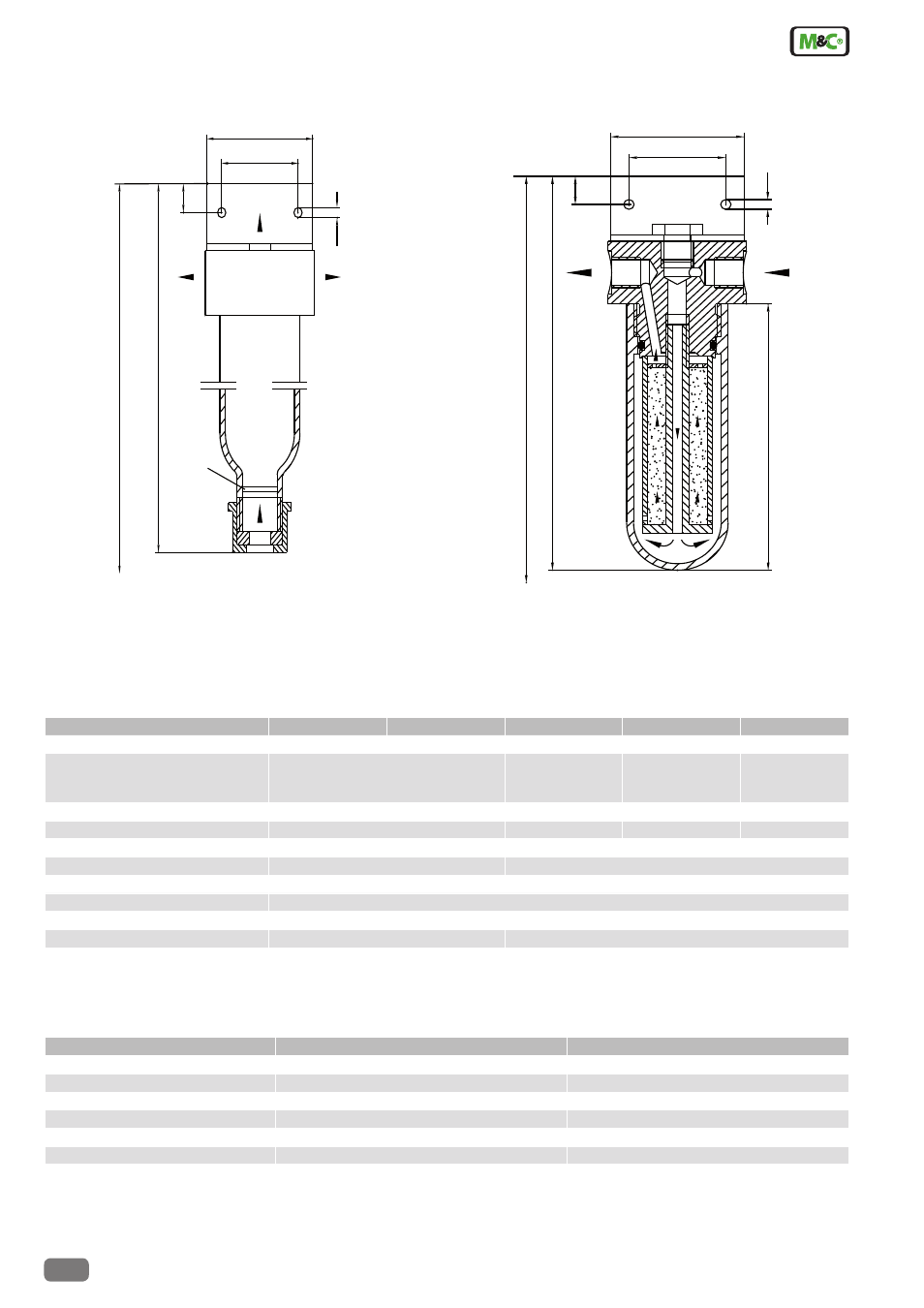

Universal-FilterFP-240(120)-D/F
ø 5
42
58
13
182
123
* constructional size 290
*
G1/4" G1/4"
Universal-FilterF..-AP
TechnicalData
Universalfilter FP-240-D/F FP-120-D/F FP-AP FT-AP FS-AP
Part number 03F5600 03F5650 03F5000 03F5200 03F5100
Material of medium contacting parts:
filter head, cartridge,
o-ring, glass body
PVDF,
FPM, glass PVDF, PVC,
FPM, glass PTFE, PVDF,
FEP, glass 1.4571, PVC,
FPM, glass
Stagnant space 190 cm 3 75 cm 3 65 cm 3
Operating temperature -20 to +80 °C 0 to +55 °C -20 to +80 °C 0 to +55 °C
Storage temperature -30 to +110 °C -15 to +65 °C -30 to +110 °C -15 to +65 °C
Operating pressure, at 20 °C max. 2 bar abs. max. 5 bar abs.
Operating pressure with GL-adaptor max. 5 bar abs., at 20 °C
Method of mounting wall mounting, position of mounting vertical
Adsorption material Standard scope of supply without material
Connection GL25-6, G1/4"i G1/4" i
Weight 0,5 kg 0,3 kg 0,5 kg
Adsorptionmaterial componentsincaseofinterruption crosssensitiveagainst
Active charcoal vapour of solvents or essential oil SO
2
, CO
2
, CL
2
, NH
3
Stuttgarter Masse aerosols HF
Silica-gel Wasserdampf SO
2
, NH
3
, HCL, CO
2
, C
n
H
m
Potassium hydroxide CO
2
SO
2
, CL
2
, H
2
O
Sodium-calcium CO
2
SO
2
, CL
2
, H
2
O
Purafill II SO
2
, SO
3
, NH
3
, CS
2
, H
2
S C
2
H
2
, C
2
H
4
, CH
4
O
Selectionofadsorptionmaterial
Dimensions
Dimensions in mm
