8
Gas sampling and gas conditioning technology 2-2.2ME
9 TECHNICAL DATA
SP 34-H SP 34-H1.1 SP 34-H2
Part No. 40S9115 40S9120 40S9125
Temperature sensor Capillary sensor Fe-CuNi PT100
Temperature controller Thermostate optional, external
Tube length 1 m standard
Connections INLET G3/8" inside thread, OUTLET G3/8" outside thread, DIN ISO 228/T
Material Stainless steel SS316Ti
Operating temperature max. 180 °C
Sample temperature max. 400 °C
Ambient temperature (controller) -20°C bis +60 °C
Power supply
230V 50Hz 400W, with 4 m of cable / 115V 60Hz
Degree of protection / Electrical
equipment standard IP54 EN60529 / EN 61010, EN60519-1
Option:
Part No. 02S9036
Additional price for SP34-H with power supply 115V 60Hz
10 MOUNTING
Screw in the heated sample tube with 3/8“ sealing into the sample gas inlet of the portable gas sample
probe PSP4000-H.
11 ELECTRICAL CONNECTIONS
W A R N I N G !
When connecting the equipment, please ensure that the supply
voltage is identical with the information provided on the model
type plate.
The electrical connection for the heated sample tube is done by the provided power cable with 4m
length. This will be connected with the 7-pole plug at the connection box of the heated sample tube
and connected to the mains with the IEC-plug.

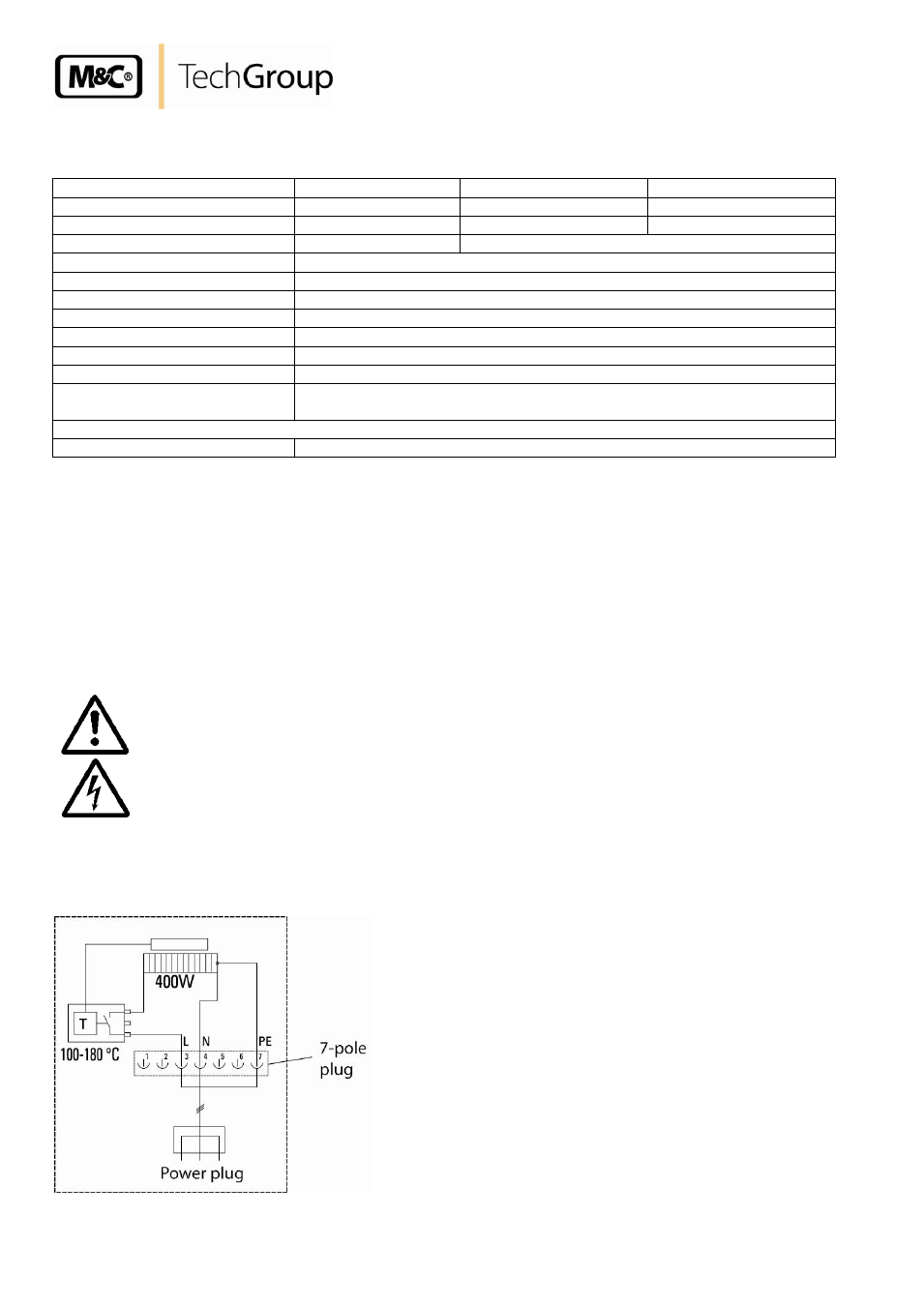

Figure 2 Electrical connection SP34-H
