2.7
Technical Data
Technical specifications and illustrations are without
obligation, subject to modifications. 10.04/06.06
Probe series SP® compact version SP210-H compact version SP210-H/W
Part No. 02S1000 02S1010
Protective cover YES
Degree of protection IP54 EN60529 IP55 EN60529
Insitu probe tube SS210/SS optional*, operating temperature max. 600 °C
Flow max. 500Nl/h at 600 °C
Sample pressure 0,4 to 2 bar abs.
Ambient temperature -20 °C to +60 °C
Dust load max.1 g/m 3
Filter chamber volume 100 ml
Filter element type S-2K, filter fineness 2 µm, ceramic
Probe heating +180 °C self-regulated
Ready for operation after 2 hours
Low temperature alarm contact, alarm point <160 °C, NO
Low temperature alarm contact, contact rating 250V-3A AC, 30V-3A DC
Connection sample outlet 1/4"-NPT inside with Swagelok tube connector ø6 x 1 mm
Power supply 110 up to 240V 50/60Hz
Power consumption start up: 400VA, usual: 100VA, (fuse 6A)
Electrical connection terminals max. 2,5 mm 2 , 2x PG11 cable glands
Electrical equipment standard EN 61010, EN 60335-1
Mounting flange DN65 PN6, B stainless steel 316Ti
Material of sample contacting parts stainless steel 316 / 316Ti, FPM, ceramic
Dimensions 170x220x230 mm, w x h x d 170x220x235 mm, w x h x d
Weight 6,5 kg 8,5 kg
Options
02 S 9200
Insitu probe tube out of stainless steel 316Ti type SP210/SS, connection G3/4“ o, ø 10/12, length
1 m*, incl. flange gasket.
10S9005 Calibration flange, DN65PN6 with 1/8“NPT connection inclusive flange gasket and screw set
M12x80.
∆P and T90 at flow of: 100 200 500 Nl/hr
∆P pressure loss with new filter element S-2K 4 7 15 mbar
T90 time with insitu probe tube SP210/SS 4,0 2,5 <1,0 sec.
* Standard, other versions on request.

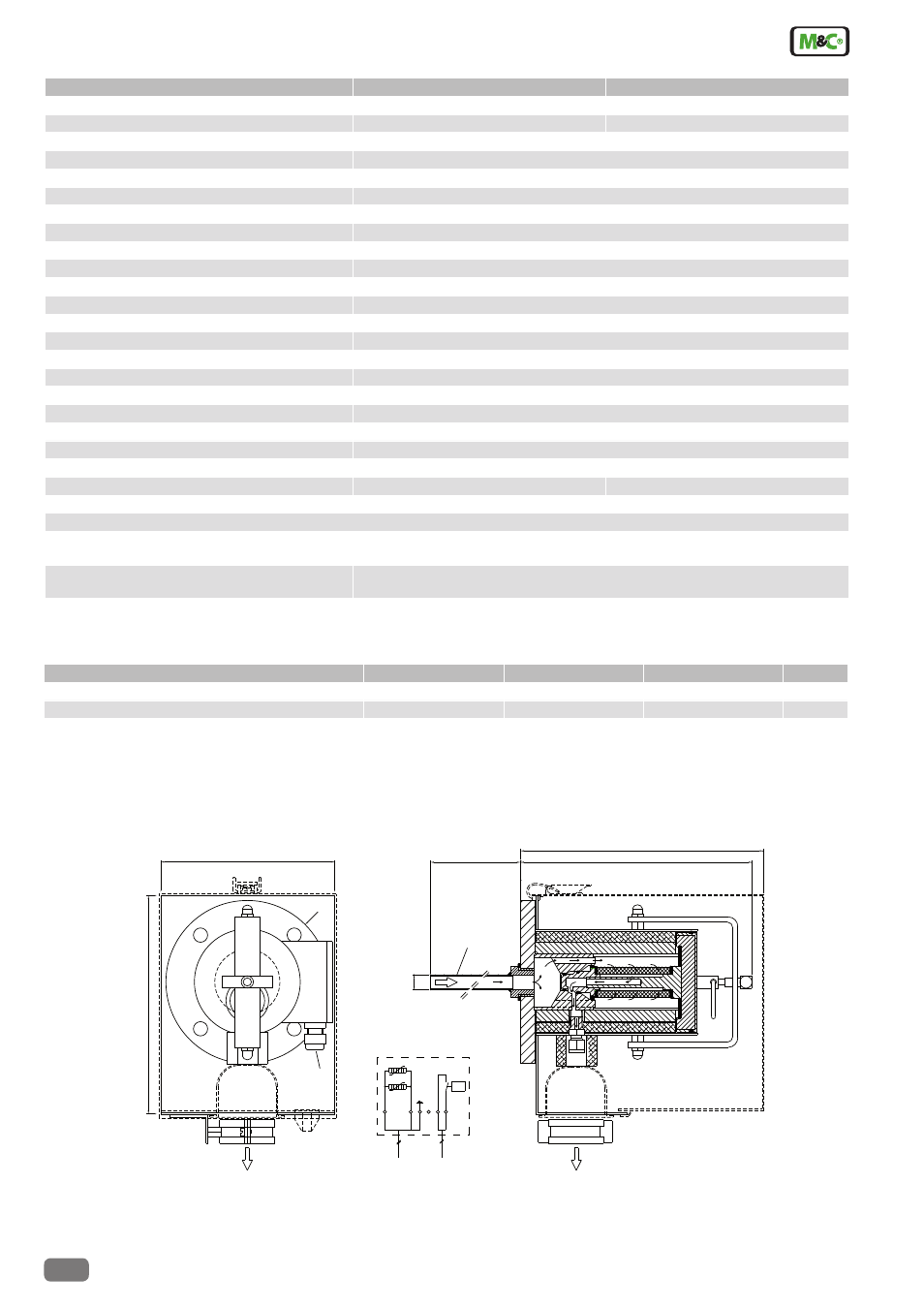

Dimensionen
220
170 1000 230
235
ø 160
2xPG11
4 3
Option: 02S9200
ø 12
100W
100W
TA-
6 5 2 1
Sample out
Temp.-
Min.Alarm (NO)
PE
Wiring
Power
110-240V,50/60Hz
Dimensions in mm
