8.2
Technical specifications and illustrations are without
obligation, subject to modifications. 09.96/11.06
Technichal Data

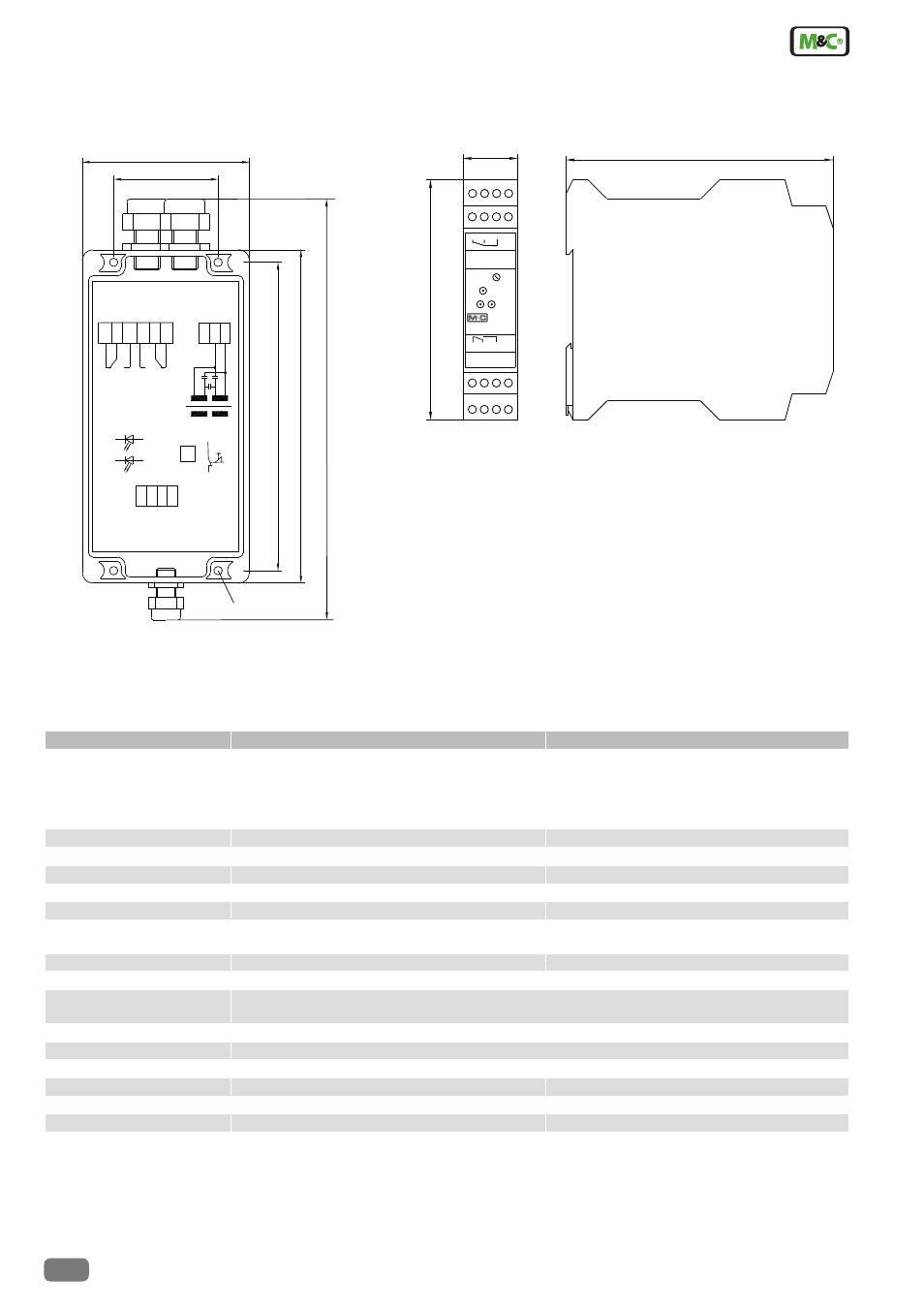

Dimensions
LA 1.1 in wall mounting housing
Dimensions in mm
LA 1.4 in rail mounting housing
22.8 111
100
21 24 22
Liquidalarm
Alarm OK.
12 11 14 NC
1 2 3 4
wh. bn.
5 6 7 8
Sensitivity adj.
Al. Reset
Flüssigkeitsalarm LA1.4
L/+ N/- PE PE
NC
bn. wh.
50
80
160
148
Sensor
Ø 4,3
230
115
L N PE
5 6
1 2 3 22 21 24 14 11 12
rt
gn
7 8
P1
210
* Reversible distribution voltage 230V 50Hz / 115V 60Hz, at works adjusted to 230V 50Hz.
** at works desactivated
Electronic controllers type LA-1.1 LA-1.4
Part Number
230V 50/60Hz
115V 50/60Hz
24V DC
24V AC
03 E 2001*
03 E 2001*
03 E 2001 d
03 E 2001 b 03 E 2006
03 E 2006 a
03 E 2006 d
03 E 2006 d
Mounting Wall mounting housing Rail mounting housing EN 50022
Sensor inlets 1
Power consumption 2 VA 1VA
Alarm-relay (2x MC/NC/NO) 250V DC/AC 250V AC / DC
contact rating DC=50W, AC=500VA, 3A DC=45W, AC=500VA, 2A
Cable inlet 1x terminals 3mm - 6,5mm
2x terminals 5mm - 10mm
Electrical connection terminals max. 2,5 mm
2
Adjustment of switching point via potentiometer after opening of housing via potentiometer in the housing front
Distance between sensor and
electronic LA-1..
max. 100m
Line break supervision yes
Alarm reset** yes
Protection type IP65 EN60529 IP20 EN60529
Housing material Polycarbonate Polyamide PA 6.6 combustibility class VO (UL94)
Ambient temperature -25 °C to +60 °C
Dimensions B 80xL 160xH 55 mm B 22,8 x L 100 x H 111 mm
Weight 0,31 kg 0,23 kg
