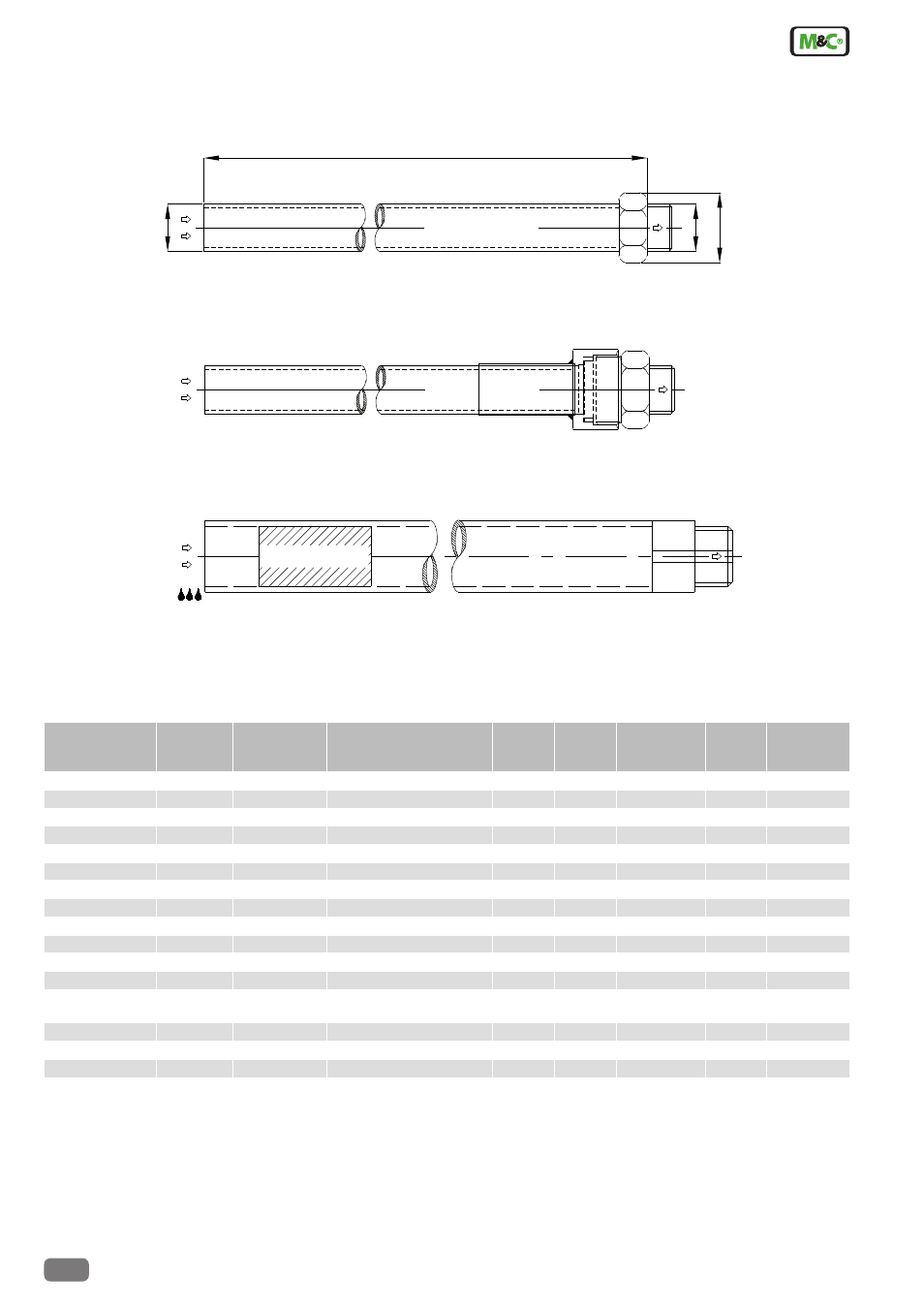

Sample tube SP2000/ CR-2(20) /AO for >1300 C with support adapter
EM
Sample tube SP210SS / SP2000... / CR-N with welded thread connection
d1
G
L1 / L max
Sample tube SP32 with demister for gas sampling behind wet scrubber
DEMISTER
Dimensions
Dimensions in mm
Sample tubes Series SP
®
Technical Data
*
Sample tube with support adapter. Max.Temperature concern the area of the support adapter on approx. 200 mm length depend on material 600/900 °C.
1)
Standard
2)
Please pay attention to the characteristic feature of ceramic in case of high and changing temperatures!
Other materials or executions on request.
For further technical information see Sample Probes SP 210 / 2100 / 2000.
M&C Probe
sample tube
Type
Part. No.
Temperature
max. °C
Material
Tube / connection part
Length
„L1“
1)
mm
Length
„L max“
mm
Connection
thread
„G“
Tube ø
o/i „d1“
mm
Connection
ø a „EM“
mm
SP2000/PV
20S9070
90
PVDF/ PTFE-gfr.
1000
1500
G 3/4"a
25/21
50
SP32
20S9280
90
PVDF/ PTFE-gfr.
800
800
G 3/4"a
50/44
50
SP2000/T
20S9083
160
PTFE/ PTFE-gfr.
500
500
G 3/4"a
25/15
33
SP2000/Ti
20S9075
400
Titane
1000
2500
G 3/4"a
25/22
37
SP210/SS
02S9200
600
stainl. steel 316Ti
1000
2000
G 3/4"a
12/10
37
SP2000/SS
20S9065
600
stainl. steel 316Ti
1000
2500
G 3/4"a
25/22
37
SP2000/SS-Vm
20S9067
600
stainl. steel 316Ti
1000
2500
G 3/4"a
25/06
37
SP2000/HC
20S9090
900
Hastelloy C4
1000
2500
G 3/4"a
25/22
37
SP2000/KA
20S9080
1300
Kanthal / SS 316Ti
1000
1500
G 3/4"a
27/20
37
SP2000/IN
20S9077
1100
Inconel
1100
2000
G 3/4"a
25/22
37
SP2000/CR-2*
20S9098
1400
Cr AL
2
O
3
/ Hastelloy C4
900
900
G 3/4"a
22,5/13
50
SP2000/CR-20*
20S9099
1400
Cr AL
2
O
3
/ Hastelloy C4
1200
1200
G 3/4"a
22,5/13
50
SP2000/CR-N
20S9086
1400
Silicon nitride-ceramic /
1.4571
1000
on re-
quest
G 3/4"a
22/29
50
SP2000/AO +
↓
20S9385
1800
Aluminiumoxyde
2)
/
1000
1500
24/18
Adapter
20S9395
(600)
/ stainless steel 316Ti
G 3/4"a
50
Adapter
20S9397
(900)
/ Hastelloy C4
G 3/4"a
50
