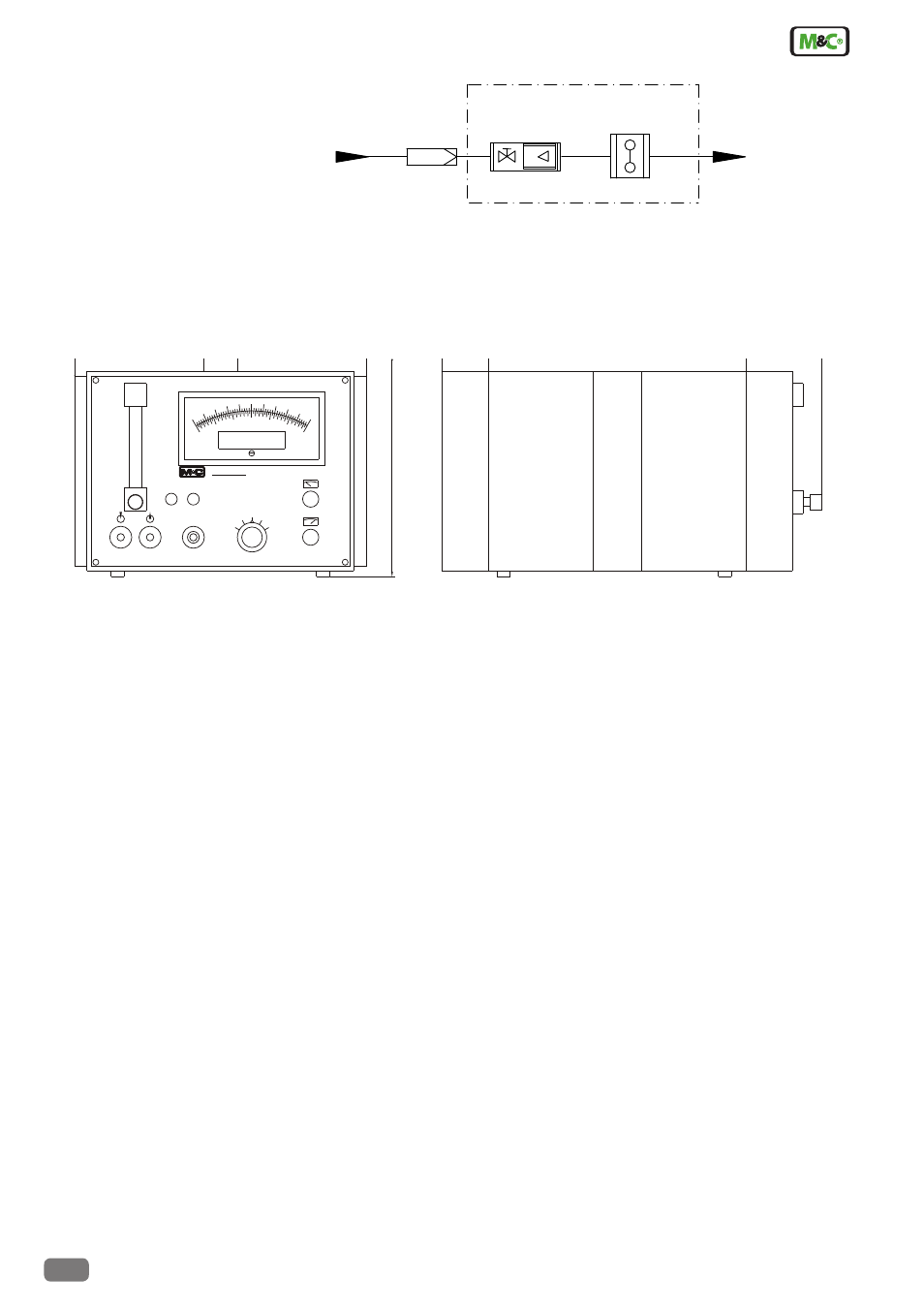

Gas flow diagram PMA 10S

1

2

3

1.

Fine filter

2.

Flowmeter with needle valve

3.

Oxygen measuring cell PMA

Dimensions

Dimensions in mm

Front View

Side View

260

150

202

Gas

Out

In

20,9

100

80

25

60

20

40

15

20

5

10

30

2

Vol.% O

0

0

Zero

Span

0

100

3

10

30

Output

Suppression

2

PMA 10S

O -Analyser
