Design and dimensions
Technical Data
Dimensions in mm

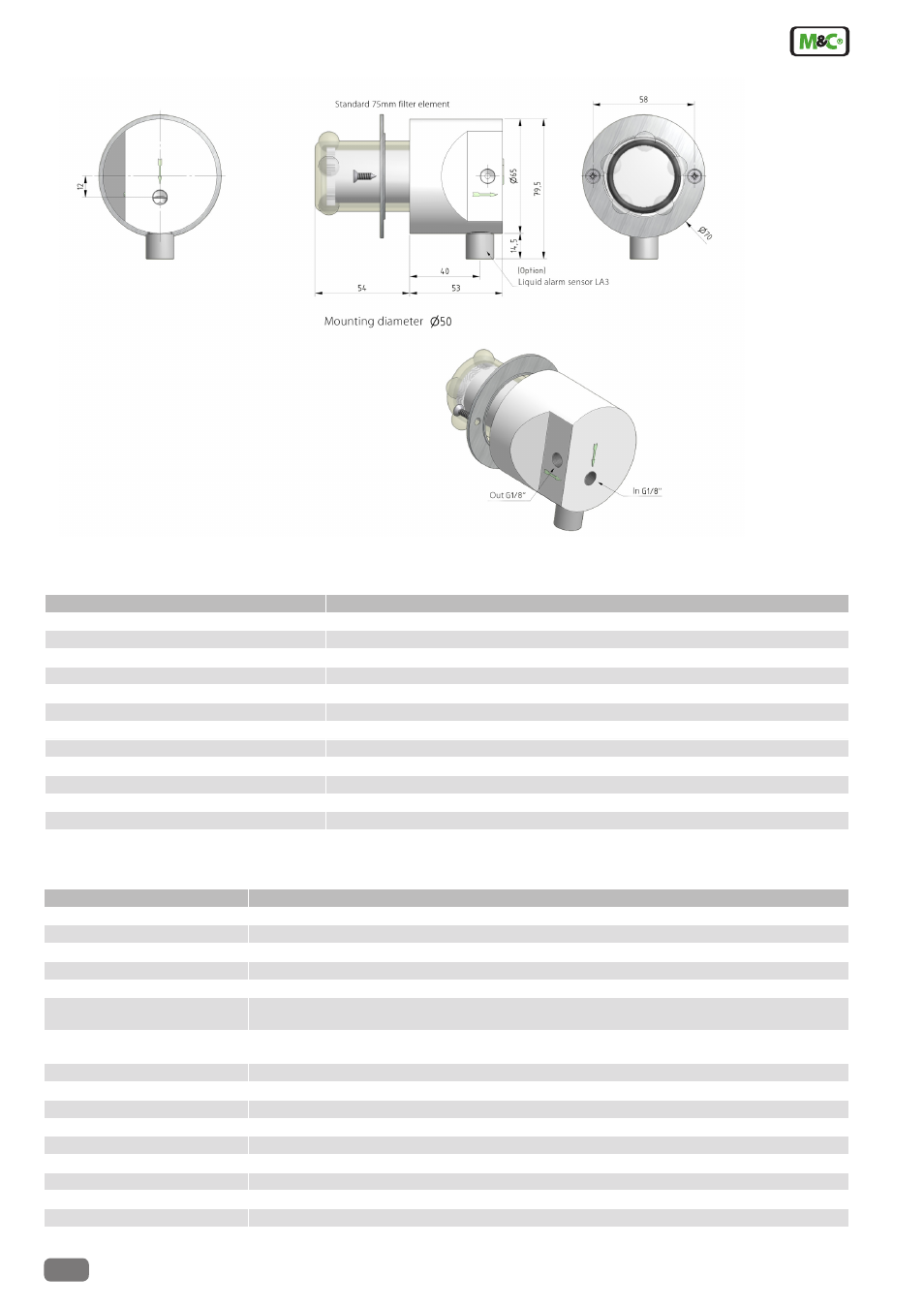

Front panel-mounting filter series FP ® version FPF+
Part No. 04 F 2100
Filter element without, see options
Liquid alarm sensor without, see options
Sample gas connections G1/8" i* DIN ISO 228/1
Pressure max. 4 bar g
Sample temperature max. 80 °C
Ambient temperature max. 80 °C
Filter surface 70 cm
2
Dead volume 50 ml
Weight 330 g (without filterelement, with liquid alarm sensor LA3)
Type of mounting Front panel mounting
Material of sample contacting parts PTFE, glass, FPM
** Appropriate electronic controller see data sheet 8.2
Part No. Description
03E1300 Liquid alarm sensor type LA3**, for conductive media. For mounting in FPF+, material: 1.4571, PTFE, FPM
90F0002 Filter element type F-2T. Length: 75mm, material: PTFE, porosity: 2µm
90F0004 Filter element type F-20T. Length: 75mm, material: PTFE, porosity: 20µm
90F0003 Filter element type F-50T. Length: 75mm, material: PTFE, porosity: 50µm
90F0005 Filter element type F-3G. Length: 75mm, material: Glas, porosity: 3µm
90F0011 Filter element type F-2GF. Length: 75mm, material: glass fibre, porosity: 2µm. VE = 25 pcs. (for mounting 2 x adapter ring
part no. 93S0050 is necessary)
90F0016 Filter element type F-0,1GF. Length: 64mm, material: glass fibre, porosity: 0,1µm. (for mounting 2 x adapter ring part no.
93S0050 is necessary)
90F0550 Filter element type F-0,05SIC. Length: 75mm, material: ceramic, porosity: 0,05µm.
90F0006 Filter element type F-2K. Length: 75mm, material: ceramic, porosity: 2µm
90F0007 Filter element type F-20K. Length: 75mm, material: ceramic, porosity: 20µm
90F0008 Filter element type F-3SS. Length: 75mm, material: SS316L, porosity: 3µm
90F0010 Filter element type F-20SS. Length: 75mm, material: SS316L, porosity: 20µm
90F0115 Spun glass cartridge FW-1 for universal filter, without filling. Material: SS316Ti
90F0117 Spun glass cartridge FW-2 for universal filter, without filling. Material: PVDF
93S2083 Spec. spun glass, high temperature resistant for spun glass cartridge FW. Content:1000g
93S0050 Adapter ring for filter element F-0,1GF and F-2GF. Material: PTFE (1 pc.)
Options
* Appropriate fittings see data sheet 11.6
