Technical Data
123
182
13
ø 5
42
58
* constructional size 290
*
G1/4" G1/4"
Humidifier FP-BF-GL25 Partial view of glass body
with GL25-12 connector on the bottom

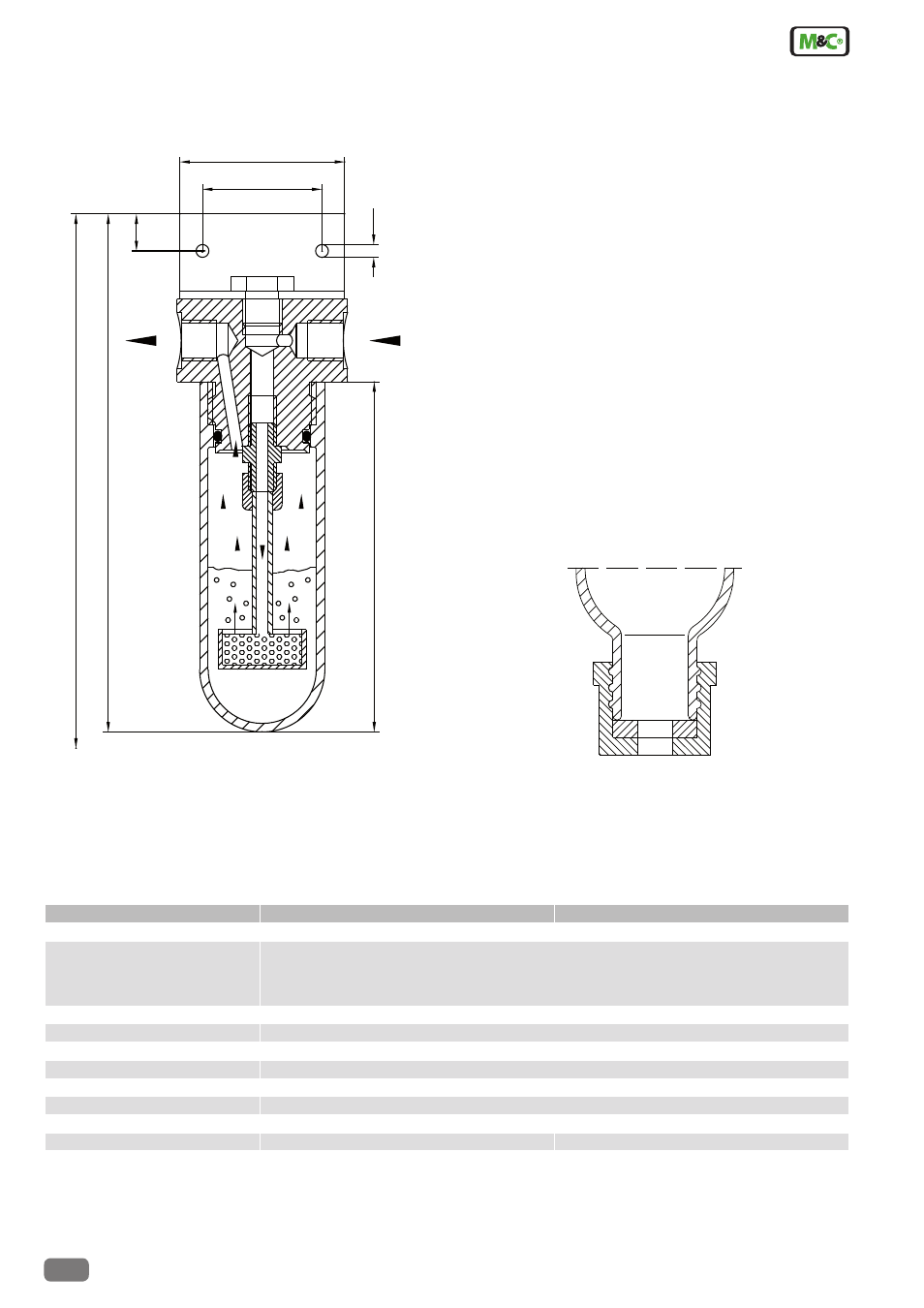

Dimensions
Humidifier FP-BF
Dimensions in mm
GL18-6 connector with sealing ring for 6mm tube
Humidifier FP-BF FP-BF-GL25
Part number 03F5700 03F5750
Sample contacting parts:
head part, connector,
tube, o-ring,
bubbler, glass body
PVDF
FPM,
glass
Contents approx. 70 ml
Flow rate max. 100 l/hr
Operatig temperature -20 °C to +80 °C
Storage temperature -30 °C bis +110 °C
Operating pressure max. 5 bar abs. at 20 °C 2 bar abs. / 5 bar abs. with GL- connection adapter
Method of mounting wall mounting, position of mounting vertical
Absorption material standard scope of supply without absorption material
Connection G1/4" i DIN ISO 228/1 G1/4" i, GL25-12
Weight 0,3 kg
