The following principles apply to EVS servers equipped with V3X boards:
• The primary links of the V3X boards mentioned in the tables of this section correspond
to the upper connectors of a codec module.
◦ J8 for IN connectors
◦ J6 for OUT connectors
• The secondary links of the V3X boards correspond to the middle connectors of a
codec module:
◦ J5 for IN connectors (only IN 1B to 3B)
◦ J3 for OUT connectors (only OUT 1B and 2B)
3.2.2. SD/HD Base Configurations
Introduction

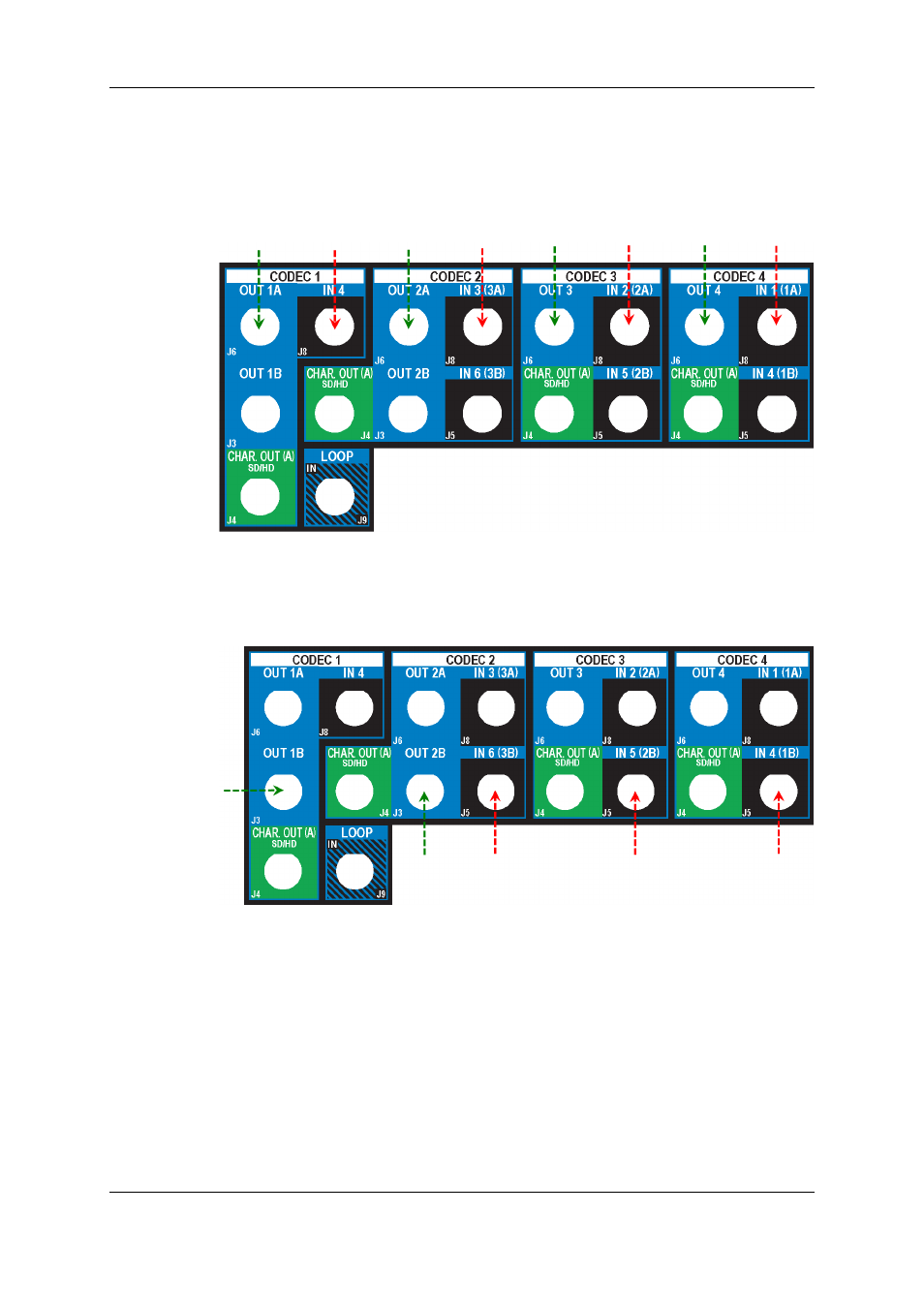

The table below shows the available standard SD/HD configurations with an XSnano
server (with COHX or V3X boards), and how the BNC connectors should be cabled.
