Disk Error
Description Enables or disables the disk error information display on the
output monitor.
As the server is equipped with a RAID disk array, the operation
can continue seamlessly even with 1 faulty disk. If 1 disk is
disconnected during operation, the !Raid message appears on
all output monitors, and another message appears when the
operator shuts down the application, to invite him to replace
the disk and rebuild the RAID array.
Please, refer to the Technical Reference manual for details on
the RAID system and its maintenance.
Values Yes (default) / No
3.6.3. Downconverted Outputs Settings
Introduction
The Downconverted outputs settings allow specifying the settings related to the
downconverted output lines and the downconverter parameters.
These fields are available in the following interfaces:
• in the Multicam Configuration window, Monitoring tab.
• in the Technical menu of the Remote Control Panel (T4.2).

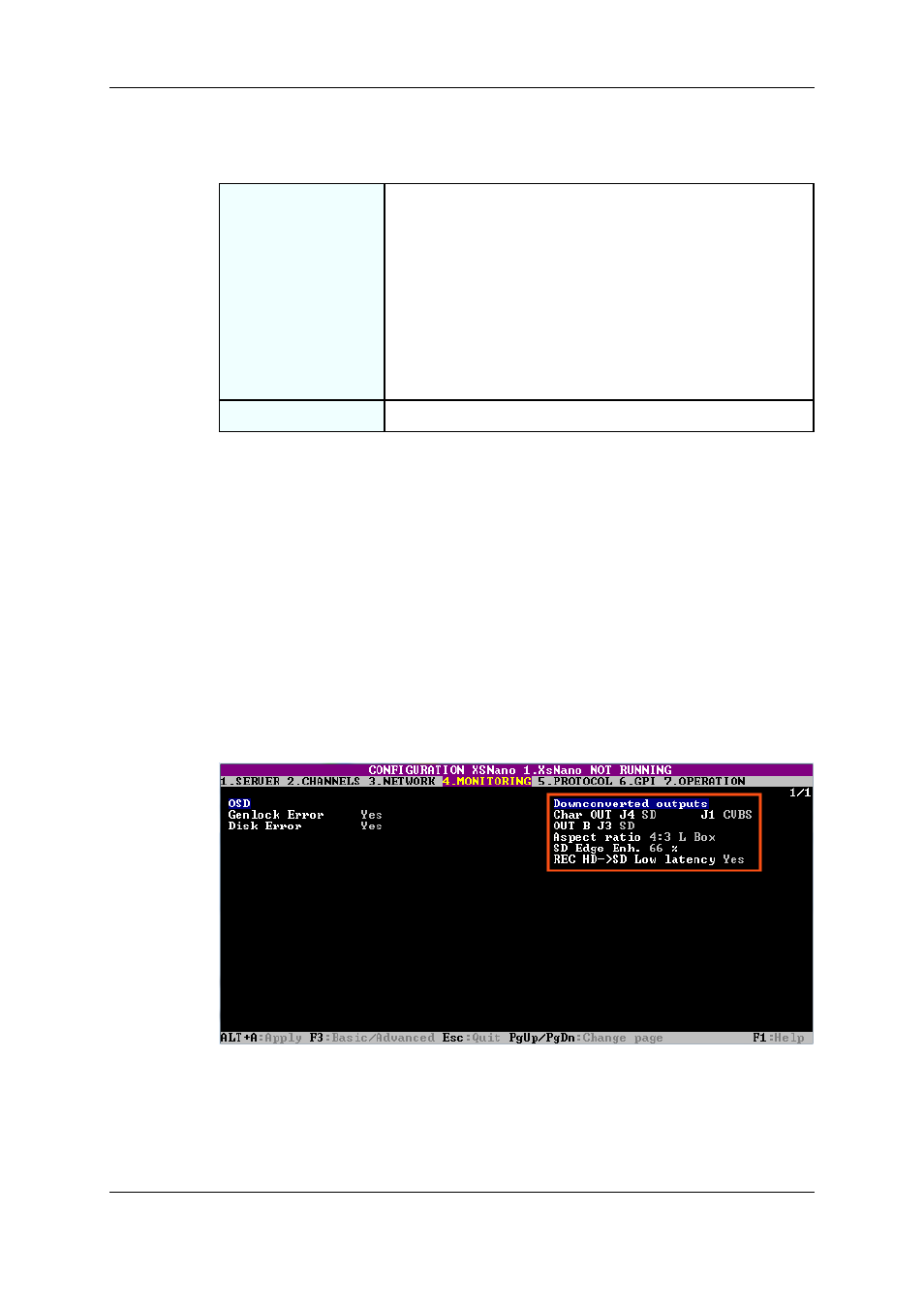

The following screenshot presents the settings page of the Monitoring tab in the server-
based application and highlights the Downconverted outputs settings area.
