in the Multicam Configuration window, Network tab, in the basic and advanced
display modes on page 1 in the server- and web-based interfaces.

in the Technical menu of the Remote Control Panel (T3.X).

Warning

Changes to the Gigabit Ethernet parameters require an application reboot
(ALT+Q from the operational windows) to be applied.

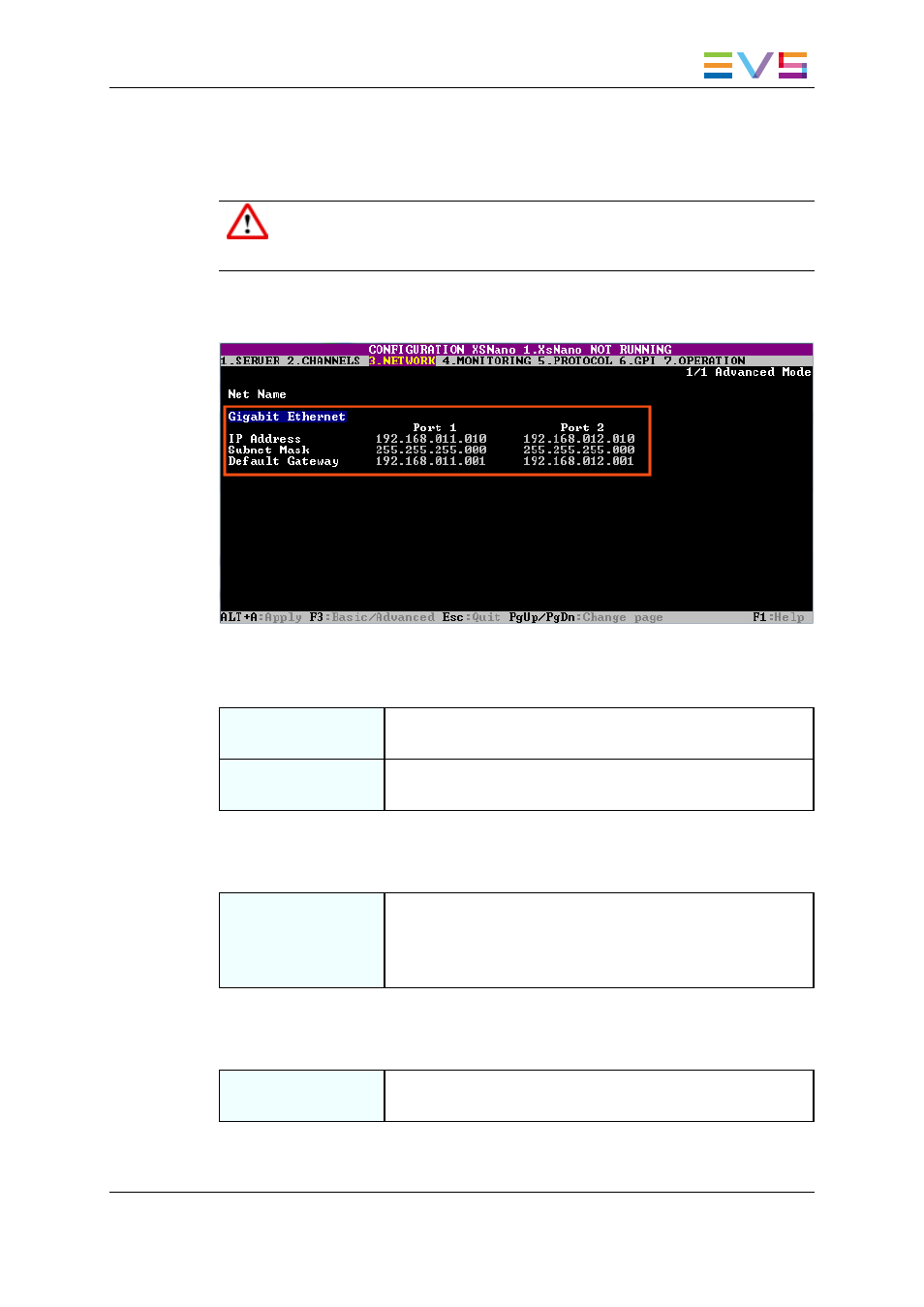

The following screenshot highlights the Gigabit Ethernet settings, defined on page 1 of the
Network tab in the server-based application:

IP Address (Port 1/Port 2)

Description

IP address to connect to the port #1/port #2 of the Gigabit
Ethernet connection on the EVS server.

Values

The IP addresses 0.0.0.0 and 255.255.255.255 are not
allowed.

Subnet Mask (Port 1/Port 2)

Description

Range of logical addresses within the address space assigned
to the Gigabit Ethernet connection.

The IP addresses of both GigE ports must belong to different
subnet masks. Otherwise, it would return an error message.

Default Gateway (Port 1/Port 2)

Description

IP address of the router on the Gigabit Ethernet network that
serves as an access point to external networks.

XSnano Server - Version 11.01 - Configuration Manual

3. Multicam Configuration
