APPENDIX F

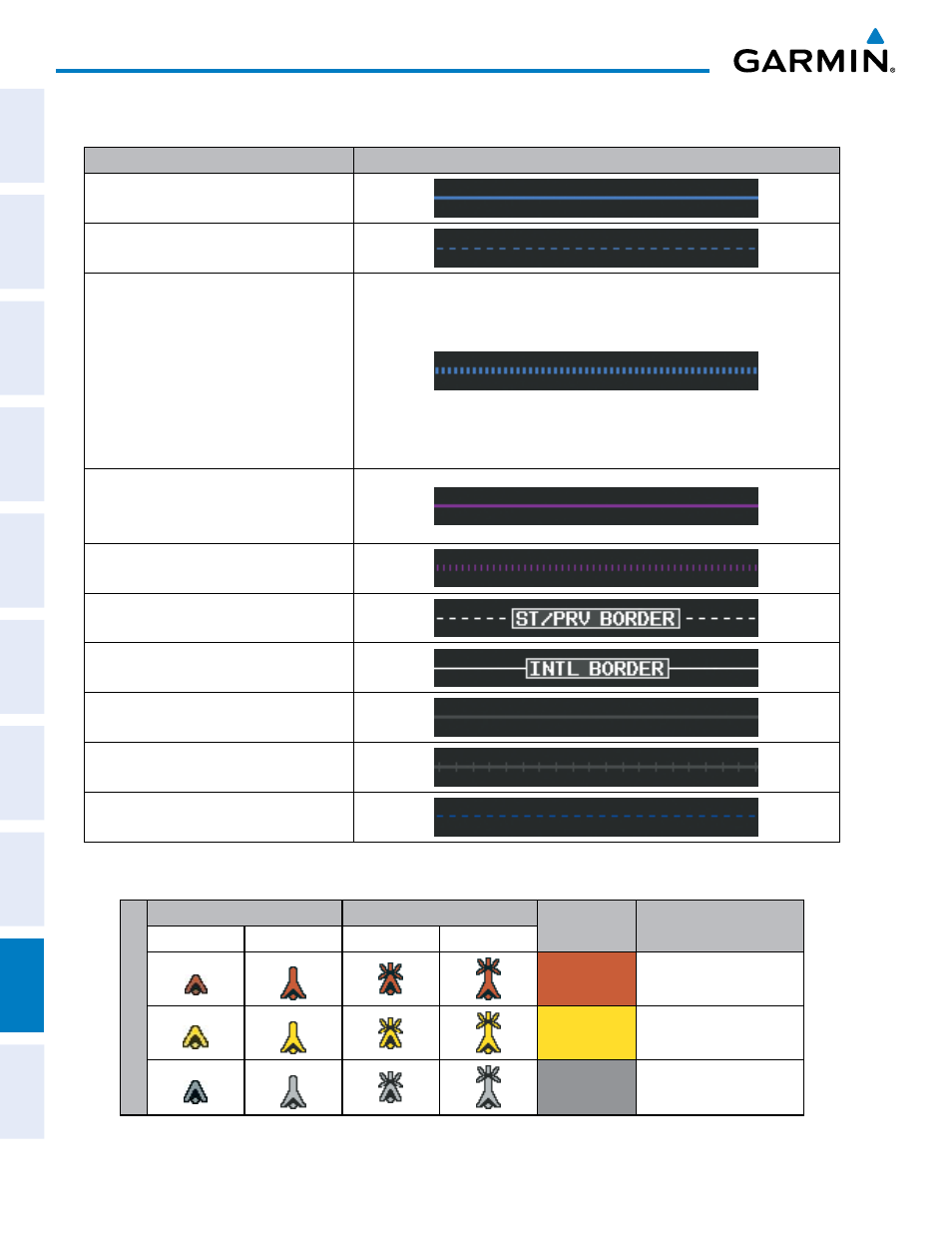

LINE SYMBOLS
Item Symbol
ICAO Control Area
Class B Airspace
Mode C Tower Area
Warning Area
Alert Area
Caution Area
Danger Area
Prohibited Area
Restricted Area
Training Area
Unknown Area
Class C
Terminal Radar Service Area
Mode C Area
Military Operations Area (MOA)
State or Province Border
International Border
Road
Railroad
Lattitude/Longitude
OBSTACLE SYMBOLS
Unlighted Obstacle Lighted Obstacle Obstacle
Color
Obstacle Location
< 1000 ft AGL > 1000 ft AGL < 1000 ft AGL > 1000 ft AGL
Obstacle Symbol
Red
(WARNING)
Obstacle within 100 ft or
above aircraft altitude
Yellow
(CAUTION)
Obstacle within 1000 ft of
aircraft altitude
Gray
(NO DANGER)
Obstacle more than 1000
ft below aircraft altitude
Table F-1 Obstacle Symbols and Colors
