HAZARD AVOIDANCE
6.5 L-3 SkYWATCH TRAFFIC ADVISORY SYSTEM (TAS)
NOTE: Refer to the SKYWATCH®HP (SKY497) Pilot’s Guide for a detailed discussion of the SKY497 TAS.
TAS SYMbOLOGY
Traffic Advisory System (TAS) is designed to help in detection and avoidance of other aircraft. TAS uses an
on-board interrogator-processor and an altitude reporting transponder for the air-to-air traffic data link. Traffic is
displayed according to TCAS symbology using four different symbols.

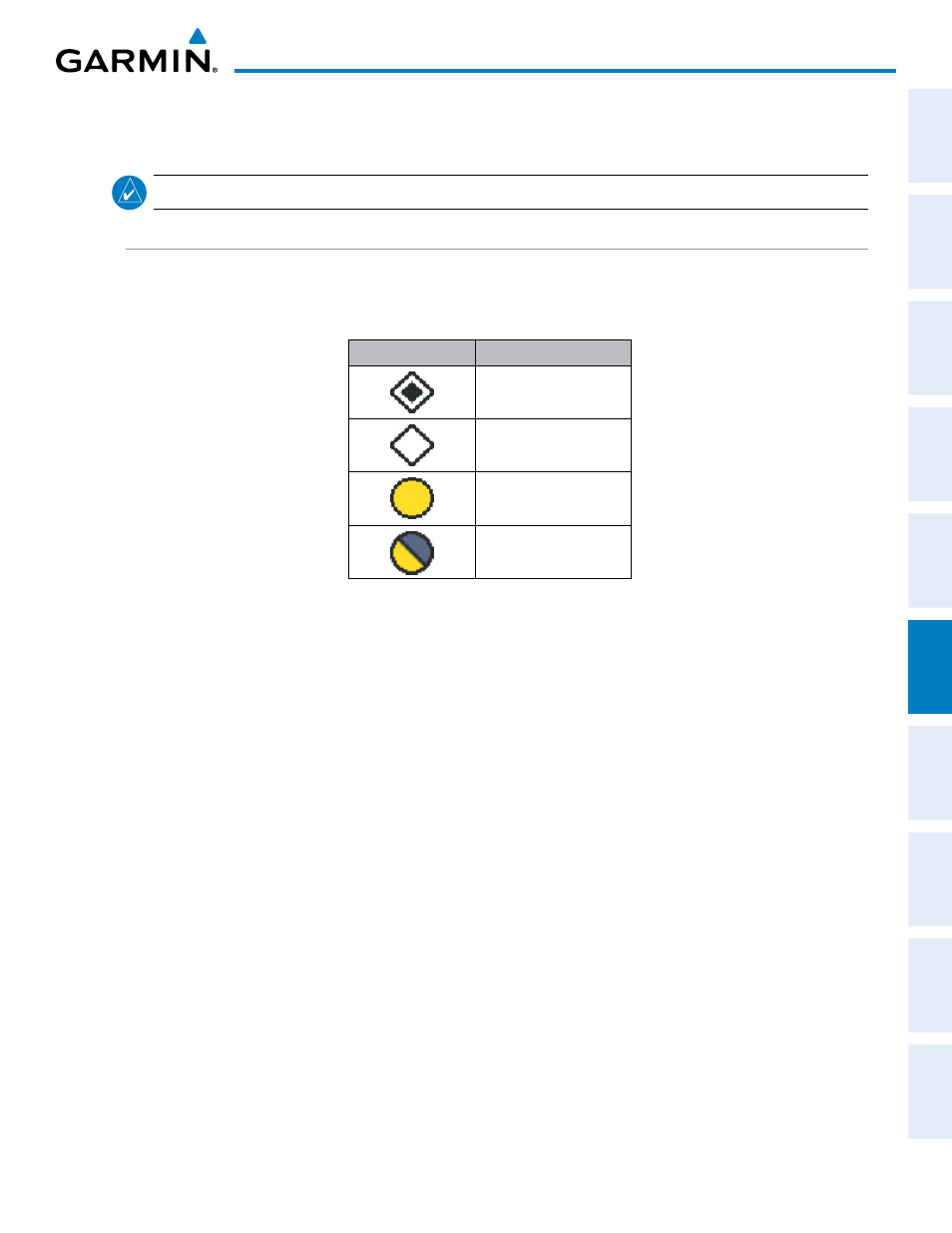

TAS Symbol Description
Non-Threat Traffic
Proximity Advisory (PA)
Traffic Advisory (TA)
Traffic Advisory Off Scale
Table 6-13 TAS Symbol Description
A Non-threat Advisory, shown as an open white diamond, indicates that an intruding aircraft is at greater than
±1200 feet relative altitude or the distance is beyond 5 nm.
A Proximity Advisory indicates that the intruding aircraft is within ±1200 feet and is within 5 nm range, but
is still not considered a threat.
A Traffic Advisory (TA) alerts the crew to a potentially hazardous intruding aircraft. Closing rate, distance,
and vertical separation meet TA criteria. A Traffic Advisory that is beyond the selected display range is indicated
by a half TA symbol at the edge of the screen at the relative bearing of the intruder.
