Garmin G1000 Pilot’s Guide for the Quest Kodiak 100 190-00590-01 Rev. B
SY
STEM
O
VER
VIEW
FLIGHT
INSTRUMENTS
EIS
AUDIO P
ANEL
& CNS
FLIGHT
MANA
GEMENT
HAZARD
AV
OID
ANCE
AFCS
ADDITIONAL FEA
TURES
APPENDICES
INDEX
310
HAZARD AVOIDANCE
DISPLAYING TAWS DATA
TAWS uses yellow (caution) and red (warning) to depict terrain and obstacles (with heights greater than 200
feet above ground level, AGL) alerts relative to aircraft altitude. Colors are adjusted automatically as the aircraft
altitude changes. The colors and symbols in Figure 6-44 and Table 6-4 are used to represent terrain, obstacles,
and potential impact points.
1000 ft
Aircraft Altitude
1 00 ft Threshold
Terrain Above Aircraft Altitude
Red terrain is above
or within 100 ft below
the aircraft altitude
Yellow terrain is between 100 ft and 1000 ft below the aircraft altitude
Black terrain is more than 1000 ft below the aircraft altitude

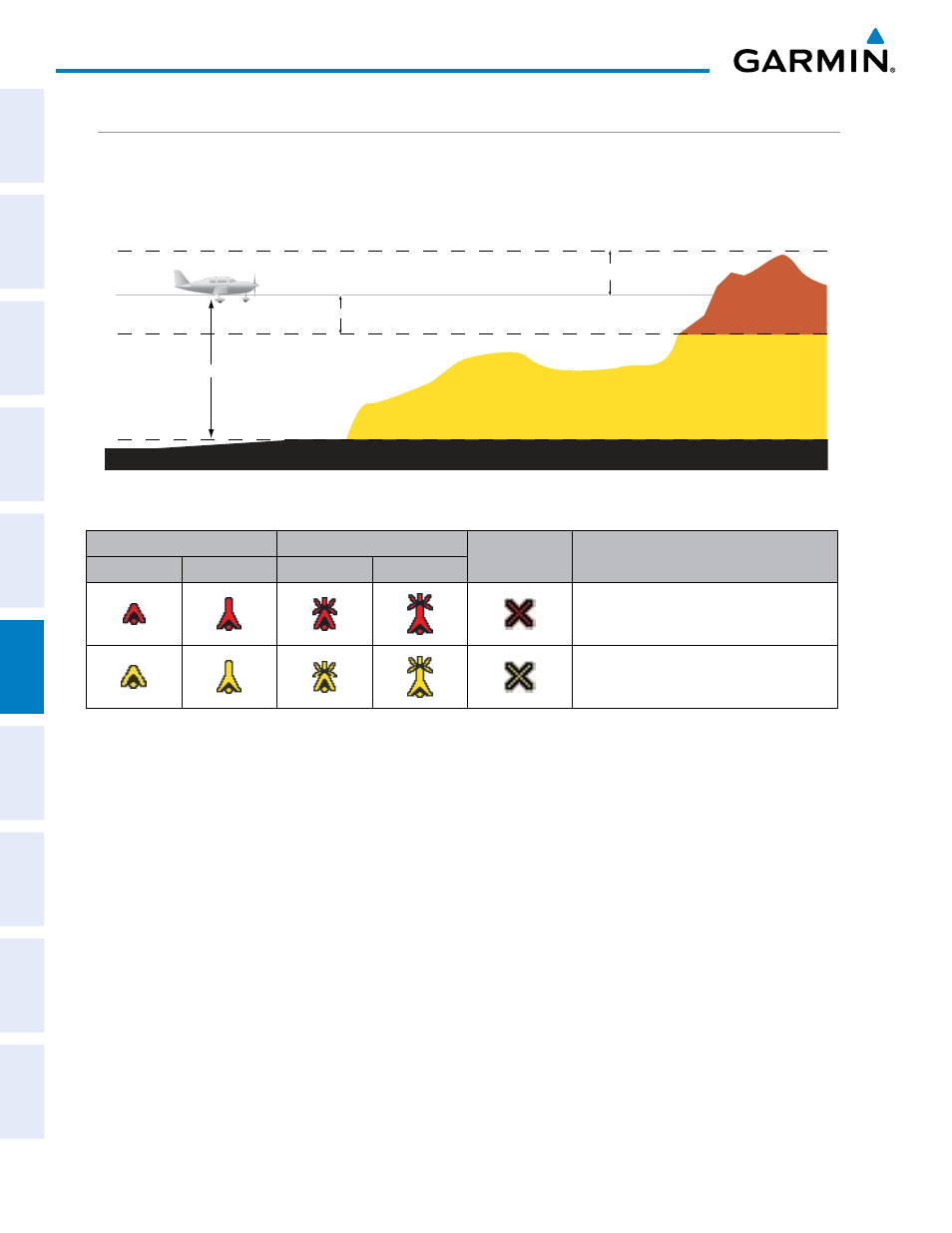

Figure 6-44 Terrain Altitude/Color Correlation for TAWS
Unlighted Obstacle Lighted Obstacle Potential
Impact Points
Obstacle Location
< 1000’ AGL > 1000’ AGL < 1000’ AGL > 1000’ AGL
WARNING: Red obstacle is above or within
100’ below current aircraft altitude
CAUTION: Yellow obstacle is between 100’
and 1000’ below current aircraft altitude
Table 6-4 TAWS Obstacle Colors and Symbology
TAWS information can be displayed on the following maps:
• PFD Inset Map
• Navigation Map Page
• TAWS Page
• Trip Planning Page
• Flight Plan Pages
Displaying terrain and obstacle information (maps other than the TAWS Page):
1) Press the MAP Softkey (for the PFD Inset Map, press the INSET Softkey).
2) Press the TERRAIN Softkey to display terrain and obstacle data.
When TAWS is selected on maps other than the TAWS Page, an icon to indicate the feature is enabled for
display and a legend for TAWS terrain colors are shown (Figure 6-51).
The Navigation Map Page Setup Menu provides a means in addition to the softkey for enabling/disabling
display of terrain and obstacles. The setup menu also controls the map range settings above which terrain and
obstacle data are decluttered from the display. If a map range larger than the map range setting is selected, the
data is removed from the map.
