CODE Displays transponder code selection softkeys 0-7
0 — 7 Use numbers to enter code
BKSP Removes numbers entered, one at a time
IDENT Activates the Special Position Identification (SPI) pulse for 18 seconds, identifying the
transponder return on the ATC screen
TMR/REF Displays/removes Timer/References Window
NRST Displays/removes Nearest Airports Window
ALERTS Displays/removes Alerts Window

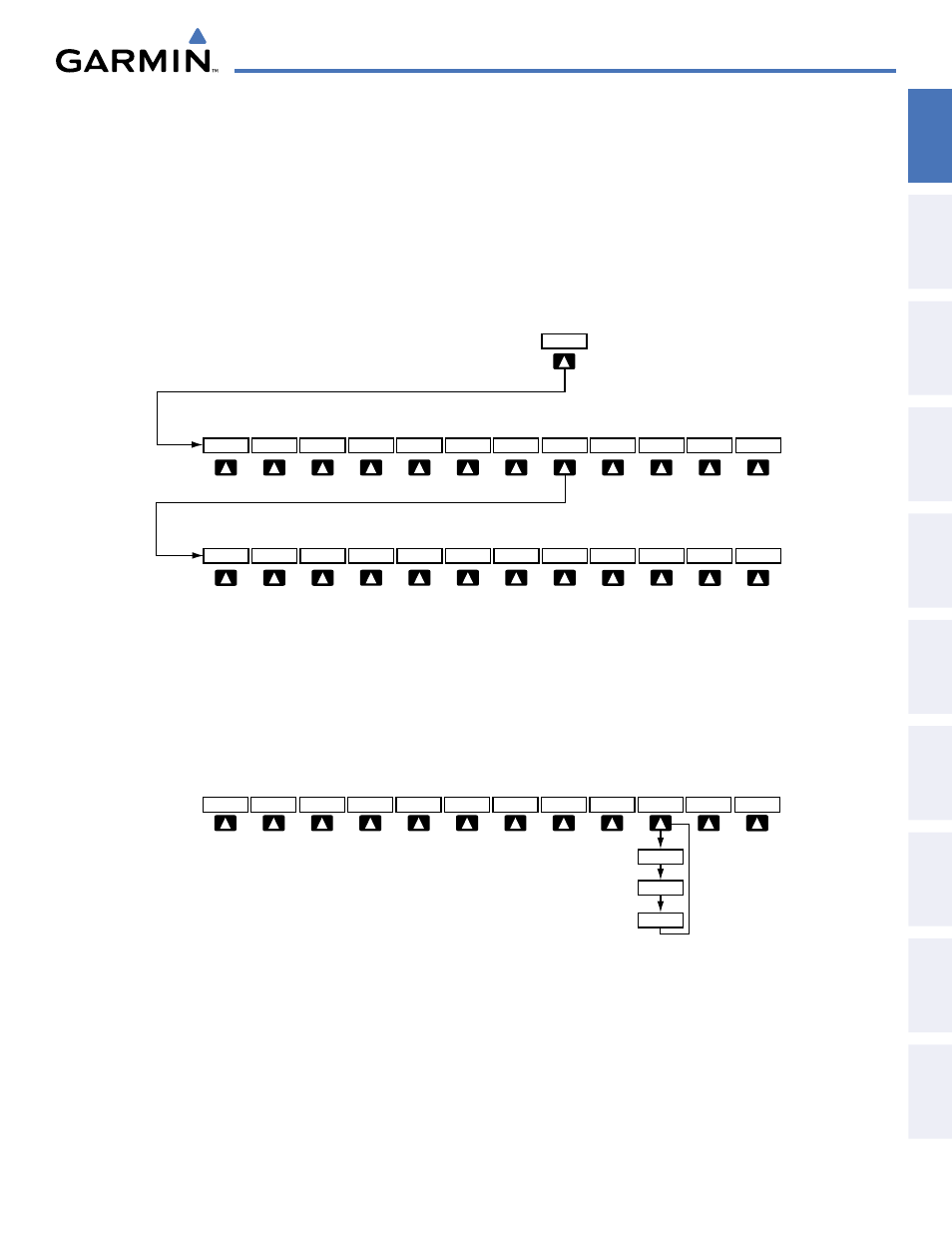

Figure 1-16 XPDR Softkeys
BACK
Press the OFF or BACK Softkey to
return to the top-level softkeys.
DCLTR
DCLTR-2
DCLTR-3
DCLTR-1
TOPO ALERTS NEXRAD
(optional)
TERRAIN XM LTNG
(optional)
OFF
INSET
INSET XPDR IDENT TMR/REF NRST ALERTS OBS PFD CDI ADF/DME
(optional)
Press the CDI Softkey to cycle through
navigation sources:
- GPS
- NAV1 (VOR/LOC)
- NAV2 (VOR/LOC)
BRG2 STD BARO BACK ALERTS HSI FRMT
PFD
BRG1 ALT UNIT DME
(optional)
Press the BRG1/BRG2 softkeys to display/
remove the Bearing Information windows
and cycle through bearing sources:
- NAV1/NAV2
- GPS
- ADF
Press the STD BARO or BACK Softkey
to return to the top-level softkeys.
Press the BACK Softkey to return
to the top-level softkeys.
Press the IDENT or BACK Softkey
to return to the top-level softkeys.
XPDR
STBY ON ALT VFR IDENT BACK ALERTS CODE
IDENT BACK ALERTS 0 1 2 3 4 5 6 7 BKSP
TRFC-1
TRFC-2
STRMSCP
(optional)
DFLTS WIND
GND
MFD SOFTKEYS
MFD softkeys vary depending on the page selected. EIS and Navigation Map Page (default MFD page)
softkeys are described here.
Press the ENGINE Softkey to
return to the top-level softkeys.
ENGINE
ENGINE
BACK
(optional) (optional)
NEXRAD TERRAIN AIRWAYS
(optional)
XM LTNG TOPO
MAP
TRAFFIC
MAP ENGINE CHKLIST CHKLIST
The DONE Softkey label changes to UNDO
when the checklist item is already checked.
EXIT DONE ENGINE
CHKLIST
EMERGCY
CHKLIST
DCLTR SHW CHRT
DCLTR-2
DCLTR-3
DCLTR-1
Press the BACK Softkey to
return to the top-level softkeys.
LEAN INC FUEL RST FUEL DEC FUEL
STRMSCP
Figure 1-17 Navigation Map Page Softkeys
ENGINE Displays second-level engine softkeys (see the EIS Section for more information)
LEAN Displays the EIS Lean Display (softkeys for engine leaning assist are shown when selected)
DEC FUEL Decreases calculated fuel remaining by 1 lb for each softkey press
INC FUEL Increases calculated fuel remaining by 1 lb for each softkey press
RST FUEL Resets calculated fuel remaining to maximum capacity and resets fuel used to zero
