HAZARD AVOIDANCE
TAWS-b ALERTS
Alerts are issued when flight conditions meet parameters that are set within TAWS-B software algorithms.
TAWS-B alerts typically employ a CAUTION or a WARNING alert severity level, or both. When an alert is
issued, visual annunciations are displayed and aural alerts are simultaneously issued. Table 6-5 shows TAWS-B
alert types with corresponding annunciations and aural messages.
When an alert is issued, annunciations appear on the PFD and MFD. The TAWS-B Alert Annunciation is
shown to the upper left of the Altimeter on the PFD and below the Terrain Legend on the MFD. If the TAWS-B
Page is not displayed at the time, a pop-up alert appears on the MFD. To acknowledge the pop-up alert:
• Press the CLR Key (returns to the currently viewed page), or
• Press the ENT Key (accesses the TAWS-B Page)
Alert Annunciation

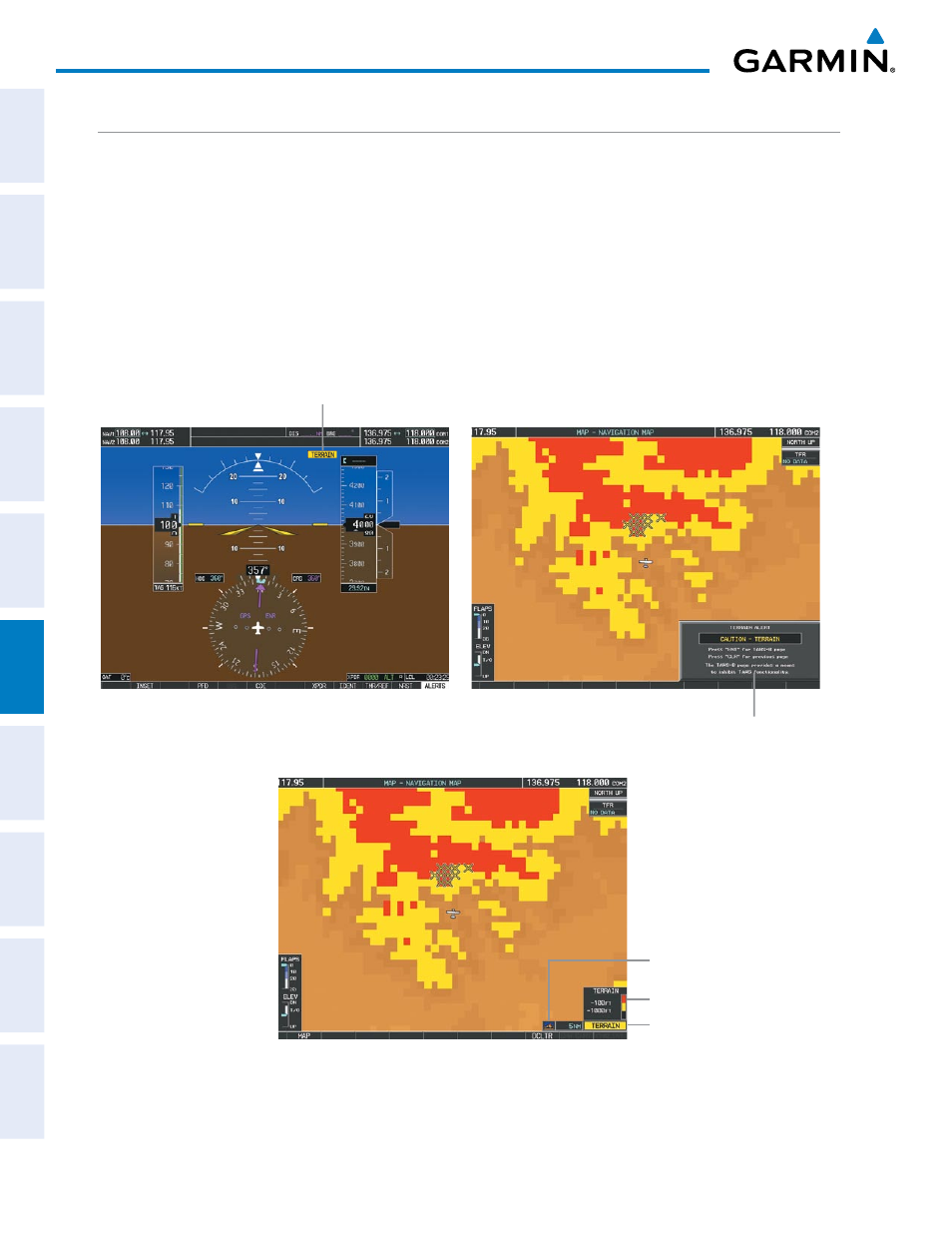

Figure 6-58 TAWS Alert Annunciations Pop-up
Alert
Figure 6-59 Navigation Map Page
(After TAWS Pop-up Alert Acknowledgment)
Alert Annunciation
Terrain Legend
Terrain Display Enabled
