z Reset Switch :
Press Reset switch when you want to reset the system. This switch must be
pushed with a thin object like the end of a paper clip, or a ball point pen.
4.2. Rear View
z EK-08RC

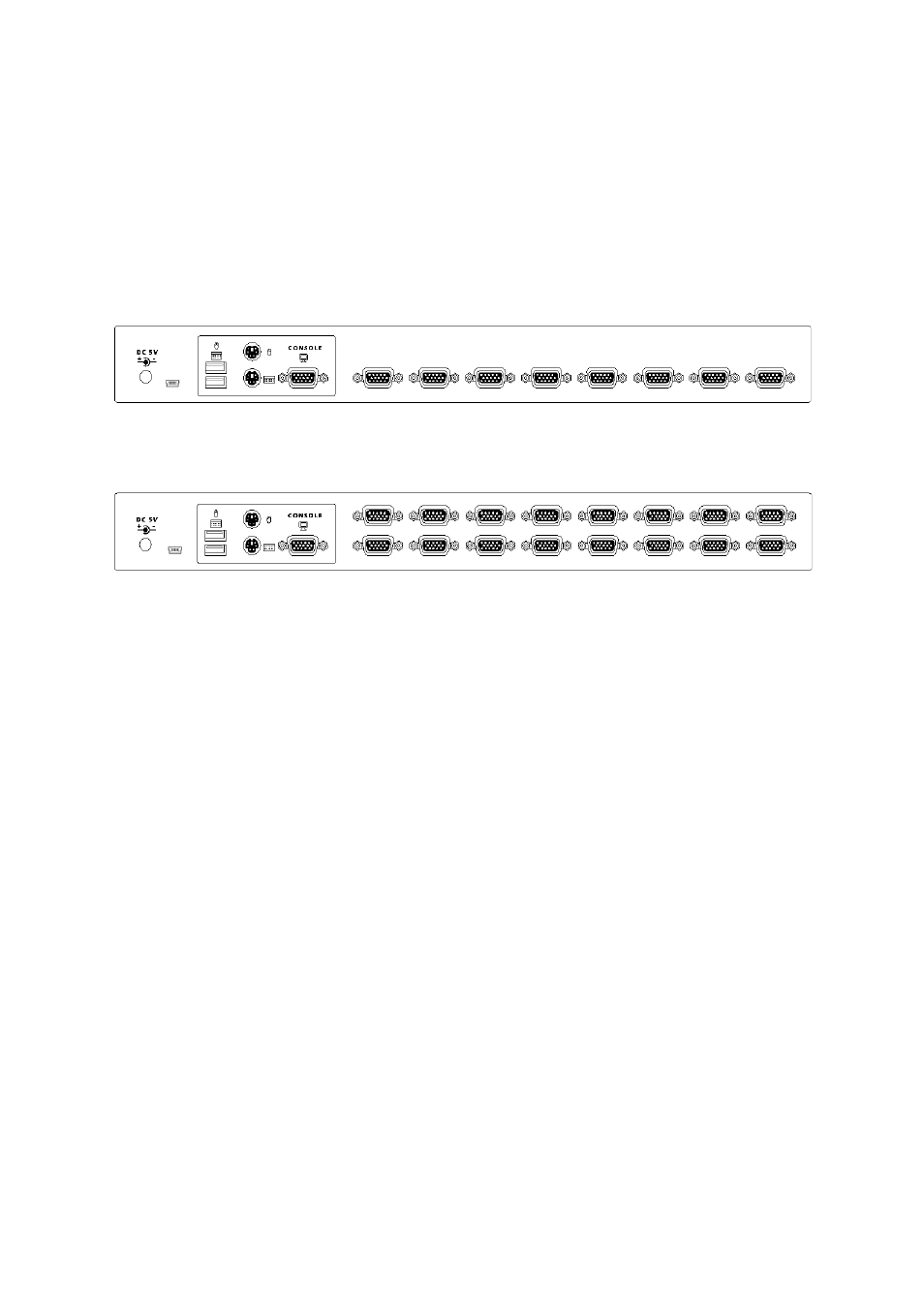

Figure 3: 8-port KVM read view
z EK-16RC
Figure 4: 16-port KVM read view
4.3. Single stage installation
4.3.1. Precaution:
¾ Please turn off computers and devices when you start to install KVM
Switch.
¾ For computers with Keyboard Power On function, please unplug the power
cords in advance. Otherwise, the switch might not work properly.
¾ If your computeres work under Windows 98, please connect KVM switch
to computers via PS/2 ports, because Windows 98 does not support
installation at first time as through USB HID installation driver.
¾ Some old computers must enable USB setting in BIOS in advance to
make USB interface work.
¾ This KVM switch does not
guarantee to fully support USB keyboard with
USB HUB.
4.3.2. Console connection:
Plug keyboard, mouse and monitor to the console ports on the real panel
of KVM Switch. ( Figure 5 )
