│ │ │ └ Channel Name
│ │ └─────── Channel Number
│ └────────── 2 nd Layer Channel Number
└────────────── 1 st Layer Channel Number

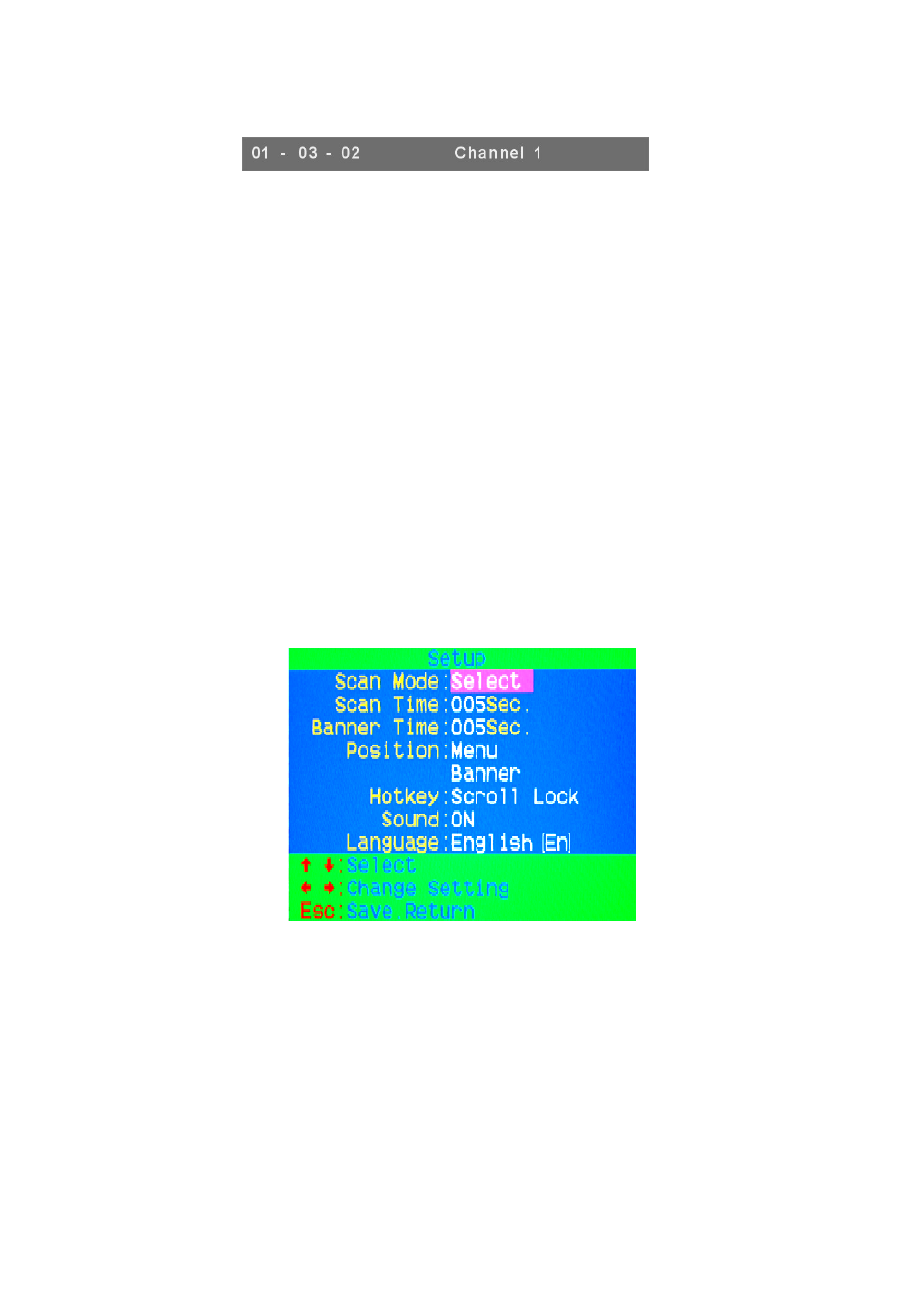

Fig. 18: Channel Banner (Cascade Layer)
7.2.3. Return from cascade port
After entering cascade port, press will return to upper layer OSD
menu.
7.3. Setup in OSD:
Please use or arrow key to select the item you want to
change, and use or arrow key to change the settings.
Press to exit and save the setup settings.
Figure 19: OSD Setup
7.3.1. Scan Mode
¾ Select:
Scan the selected channels marked with S in STA column on OSD main
menu.
¾ PC ON:
Scan all powered on PC channels
