Edimax Technology EK-16RC - Manual (Page 26)

26
7.6. Channel rename:
Select the channel to rename by using up/down arrow key and press in
OSD main menu. The channel rename window will be shown for setting up
the channel name. Press to save the renamed channel name or
to cancel.

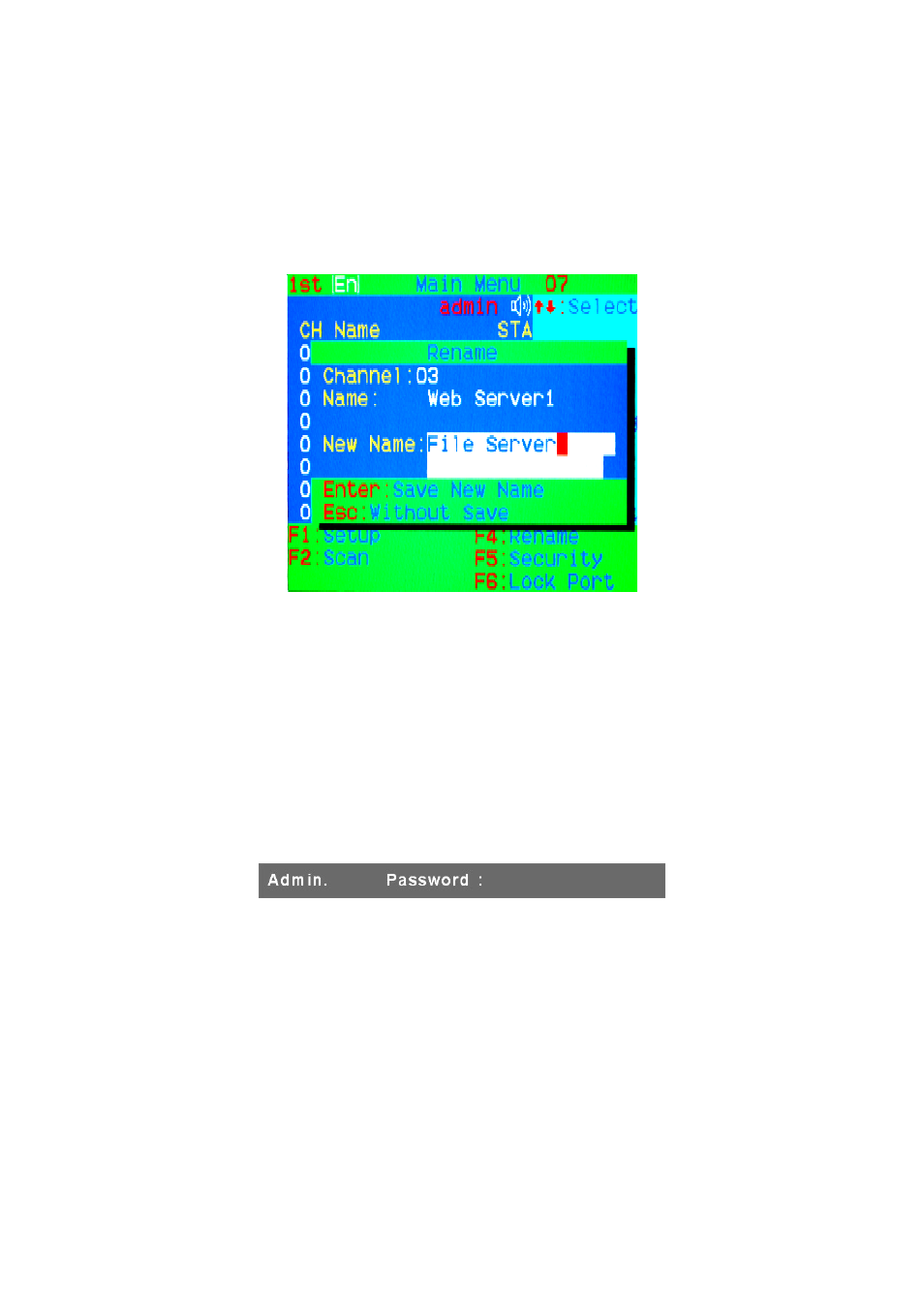

Figure 25: Channel Rename window
7.7. Security Setup:
7.7.1. Security mode login
Press in OSD main menu to enter security setup mode, the
administrator login is required before entering into the security mode.
Figure 26: Security mode login window
The default administrator account is:
User Name: admin
Password: 123456
After login, the security setup main window will be shown on the screen.
Please select the security item to setup via and
arrow> key, and press or key to change the
settings.
