3. System Requirements
z Console
A VGA, SVGA, Multisync monitor capable of the highest resolution.
PS/2 and/or USB Keyboard/Mouse
z Computer or Server
The following equipment must be equipped with each computer or server.
A VGA, SVGA or Multisync card
Type A USB port or PS/2 6 pin mini-DIN for Keyboard and Mouse.
z Cables
The Combo Free KVM Switch must be used specific custom 4-in-1 cables.
To purchase the specific cable sets, please contact your dealer.
Cable Order information : EK-C18C ( 1.8 meters ) ; EK-C30C ( 3 msters )
4. Installation
4.1. Front View
z EK-08RC

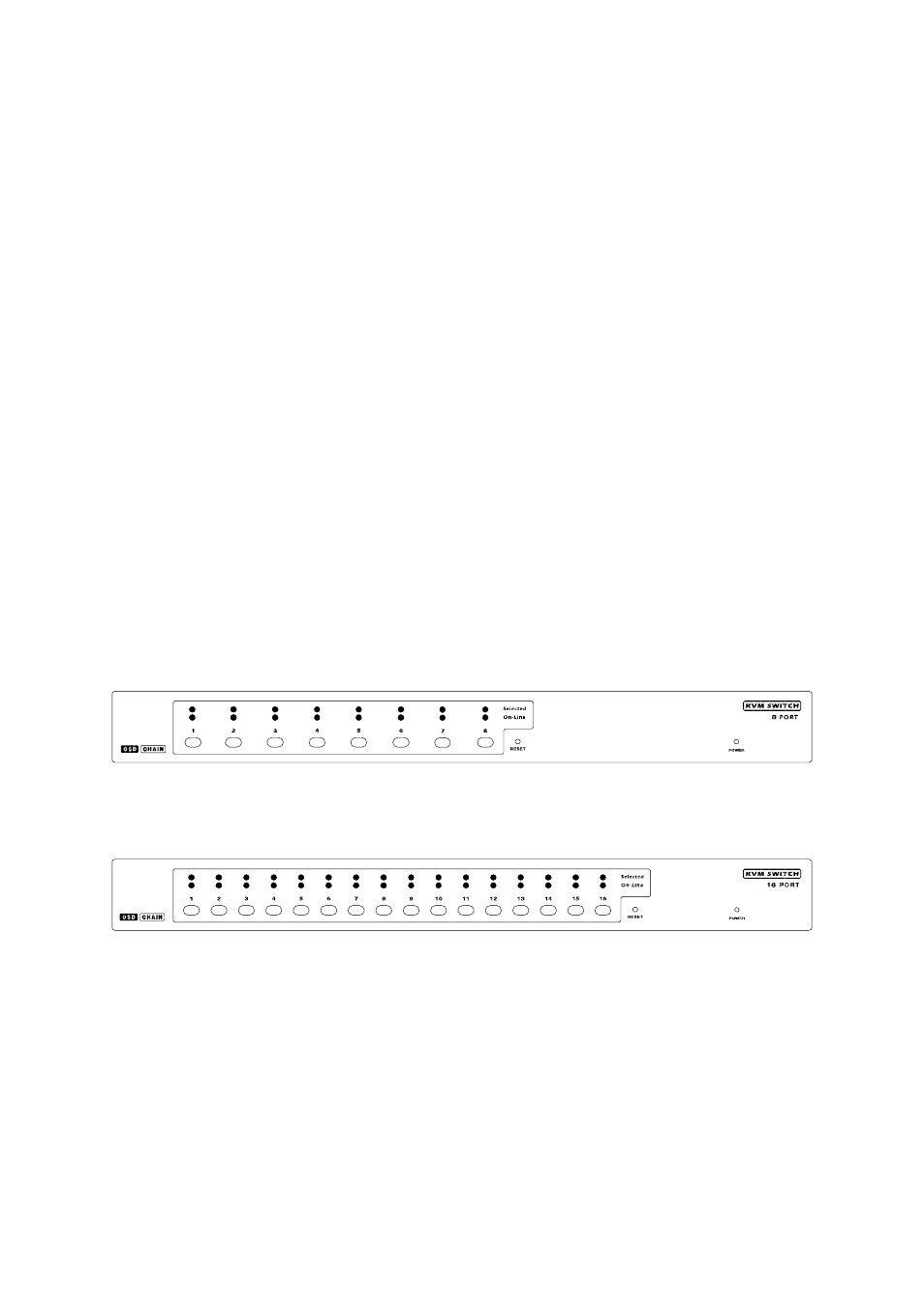

Figure 1: 8-port KVM front view
z EK-16RC
Figure 2: 16-port KVM front view
z LED Indicators:
¾ Selected :
RED LED indicates that the KVM Switch is selected to the corresponding PC.
¾ On-Line:
GREEN LED indicates that the KVM Switch is ready to the corresponding PC .
