first page, and information of port 9 ~ 16 are display in the second page.
Since the port information is divide to two pages, the page down / up
indicator can remind you to switch to alternative page by using
down> and key.
7.1.7. Function Control Menu
The detail of control functions will be described in later sections. The list of
control functions:
F1: Set up: basic set up menu
F2: Scan: autoscan function
F3: Lock: setup lock/unlock, only available when F5 Security is enabled.
F4: Rename: rename selected channel name.
F5: Security: security function and user authority settings
F6: Lock Port: PC port lock function (for administrator only)
7.2. Channel selection in OSD
7.2.1. Channel select to computer
Use the and arrow keys to highlight a computer and then
to select it and leave OSD menu. A banner with the channel
name will be shown on left-upper corner of the screen.
┬ ────┬──────
│ └ Channel Name
└──────────── Channel Number

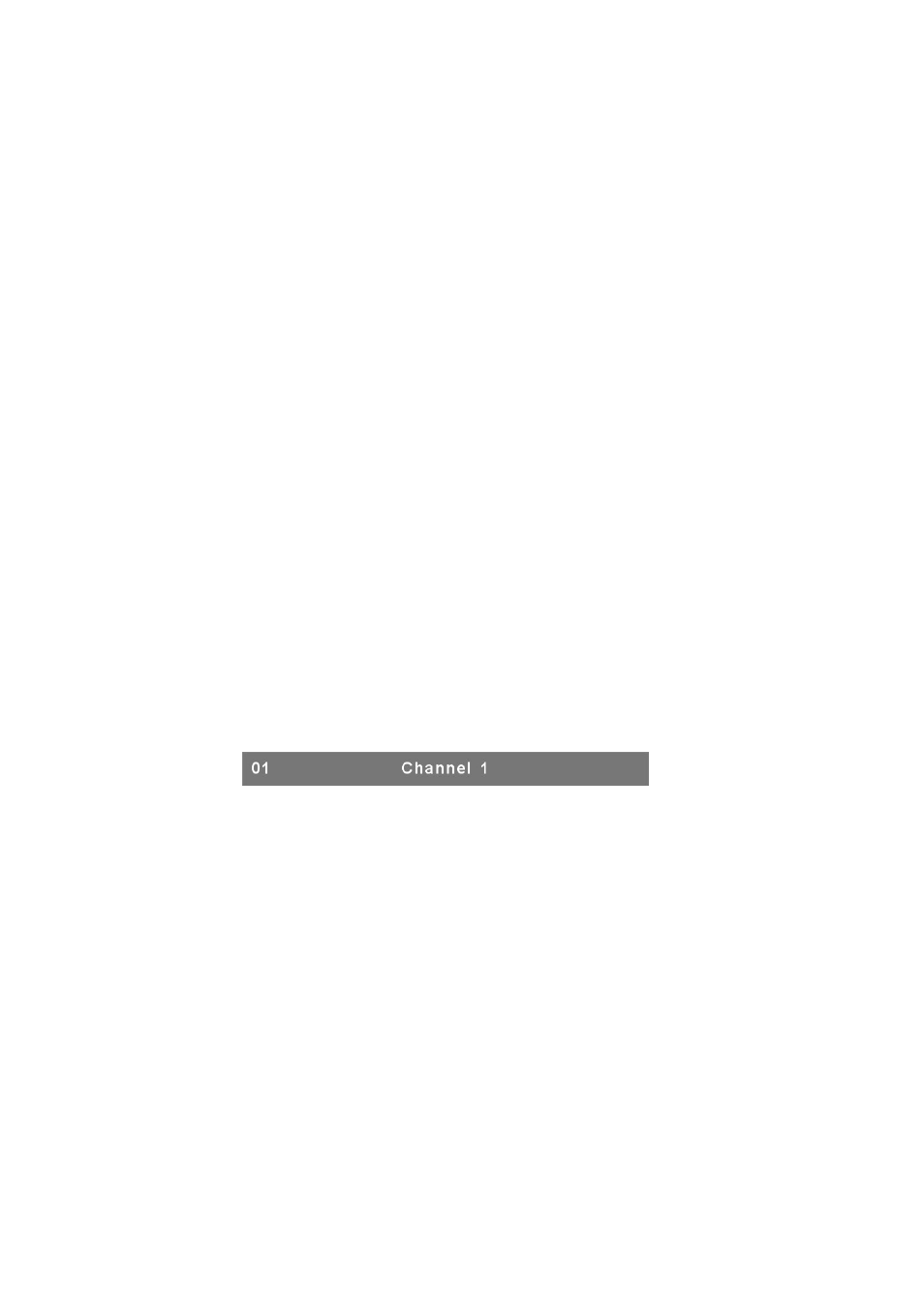

Fig. 17: Channel Banner (Single Layer)
7.2.2. Channel select to cascade port
A plus mark (+) showing in the left of channel name indicates that the port
is under cascade channing. Pressing in this channel will enter
one level down, and the screen pops up the listing of the computers of the
slave KVM.
s
s
