you can lock console by pressing twice, and then and
. The KVM will be locked until an authorized user login.
→ → →
To unlock console, please press any key according to screen message, then key
in User Name and Password. The KVM switch and console devices will be
unlocked and back to normal status.
Note: You can also execute console lock function by pressing in OSD
main menu. Please refer section 7.5 Console Lock in OSD.
7. OSD Operation
7.1. OSD Main Menu
Press < Scroll Lock> twice and , then you will enter to OSD (On
Screen Display) main menu. The channel number, names and the status will be
displayed on the monitor screen. Please refer fig. 8

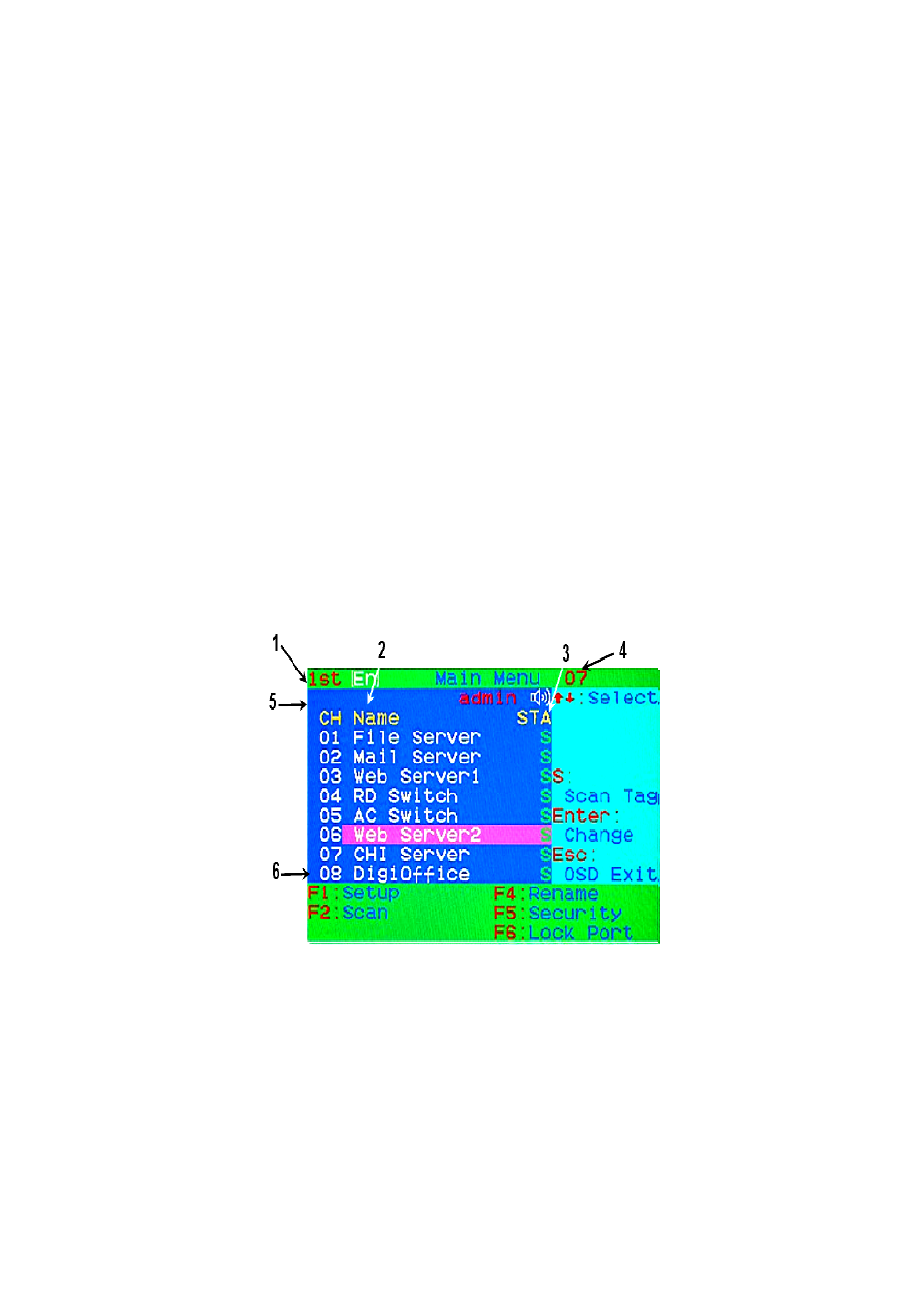

Fig. 16: OSD main menu
7.1.1. KVM layer number
1
st
, 2
nd
or 3
rd
. indicates the current cascade level.
7.1.2. Channel name
¾ The channel name can be defined by using function key F4, it can remind
user which computer is connected to this channel.
¾ A highlighted pink bar is shown in the selected channel row.
