13
4.6. Rack Mounting

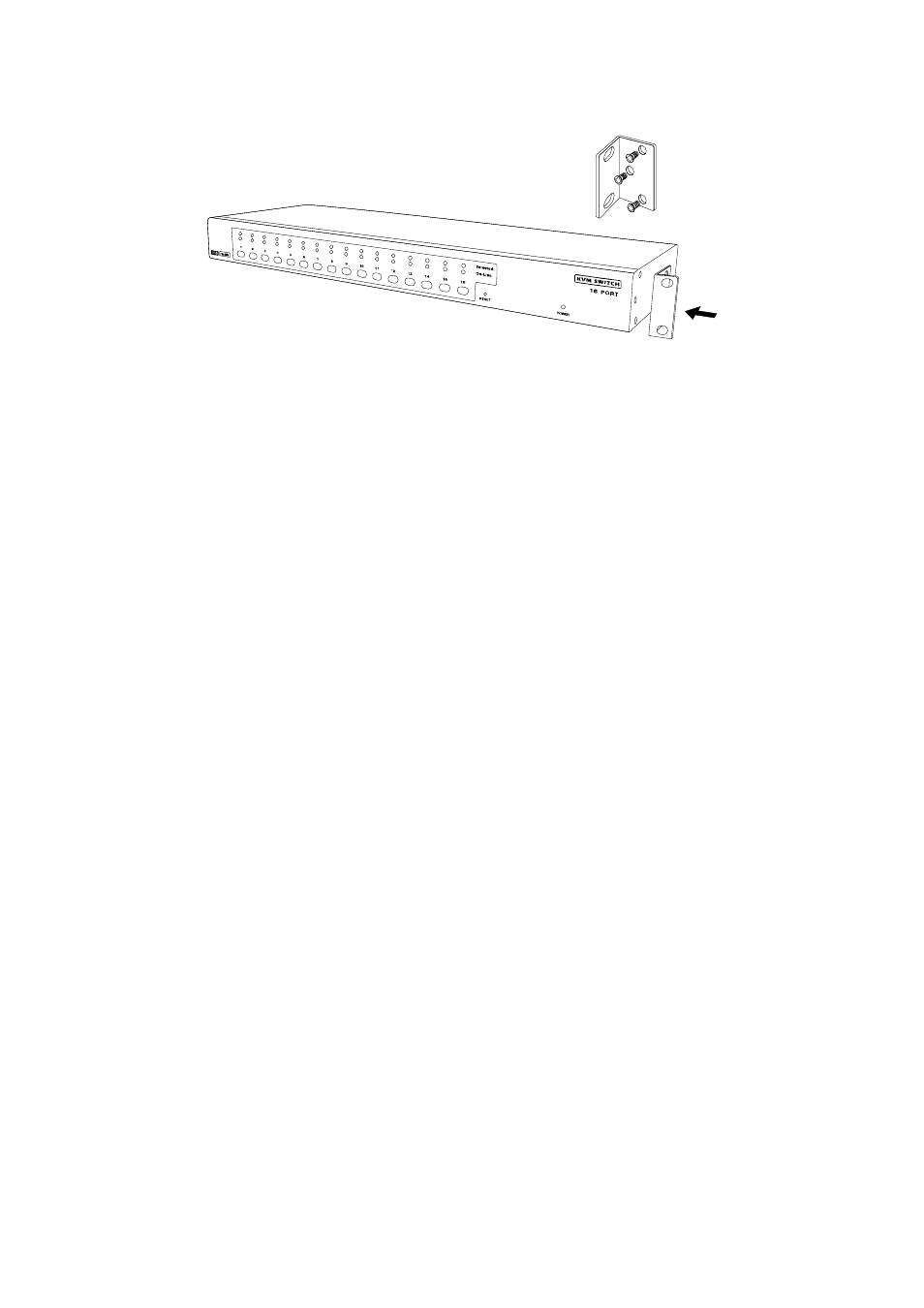

Figure 11: Rack mounting
Figure 11 shows you how to attach mounting brackets to the KVM Switch unit
for standard 19-inch rack cabinet.
1. Screw the mounting brackets into the sides of the KVM Switch unit.
( See Figure 11)
2. Install the KVM Switch unit into the rack cabinet.
5. Operation
You can control computers via EK-08RC or EK-16RC Combo KVM Switch by
push button, hot key and OSD.
1. Push button operation
Press the front panel push button to select the PC and operate it.
2. Hot Key operation
Please refer section 6. Hot Key Operation.
3. OSD operation
Please refer section 7. OSD Operation.
