Printer requirements and specifications
Installation Planning Guide 6-17
NOTE: Finishers that are attached to your bypass transport may
occupy shared space with Xerox equipment. However, they must
be removable to allow servicing of the printer feeders and
stackers. Consult with your Xerox representative to ensure all
the requirements are met.
Shared space configuration diagrams
The following figures illustrate three possible configurations of
shared space.
Back-to-back
shared space

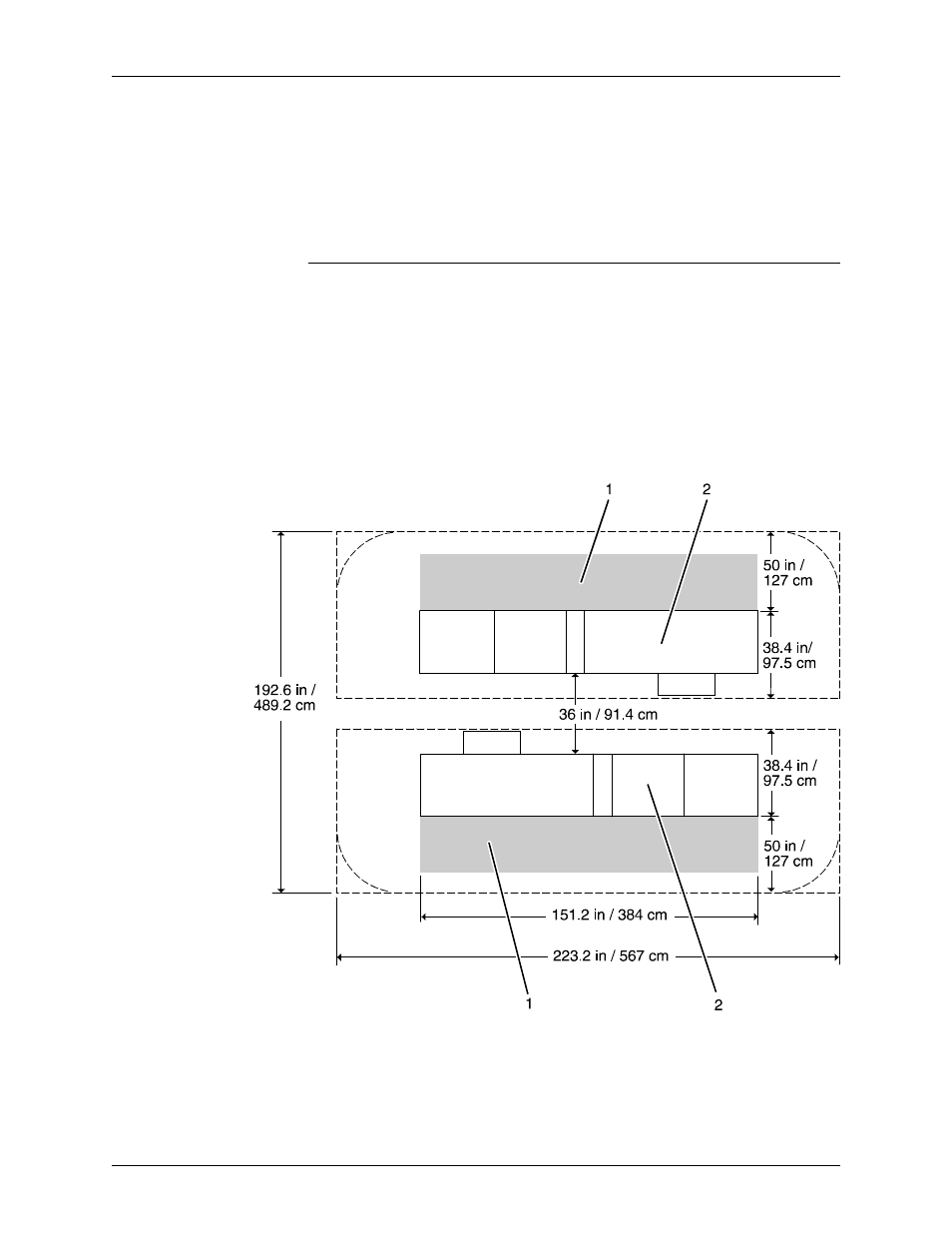

The figure below illustrates the two printers placed in a back-to-
back position. This allows the printers to share the entire 36
inches /
91.4 cm of general service space.
Figure 6-11. Back-to-back shared service area space
1. Operator area
2. Printer
