Printer requirements and specifications

Installation Planning Guide

6-3

Printer power

outlet and cord

voltage

configurations–

60 Hz

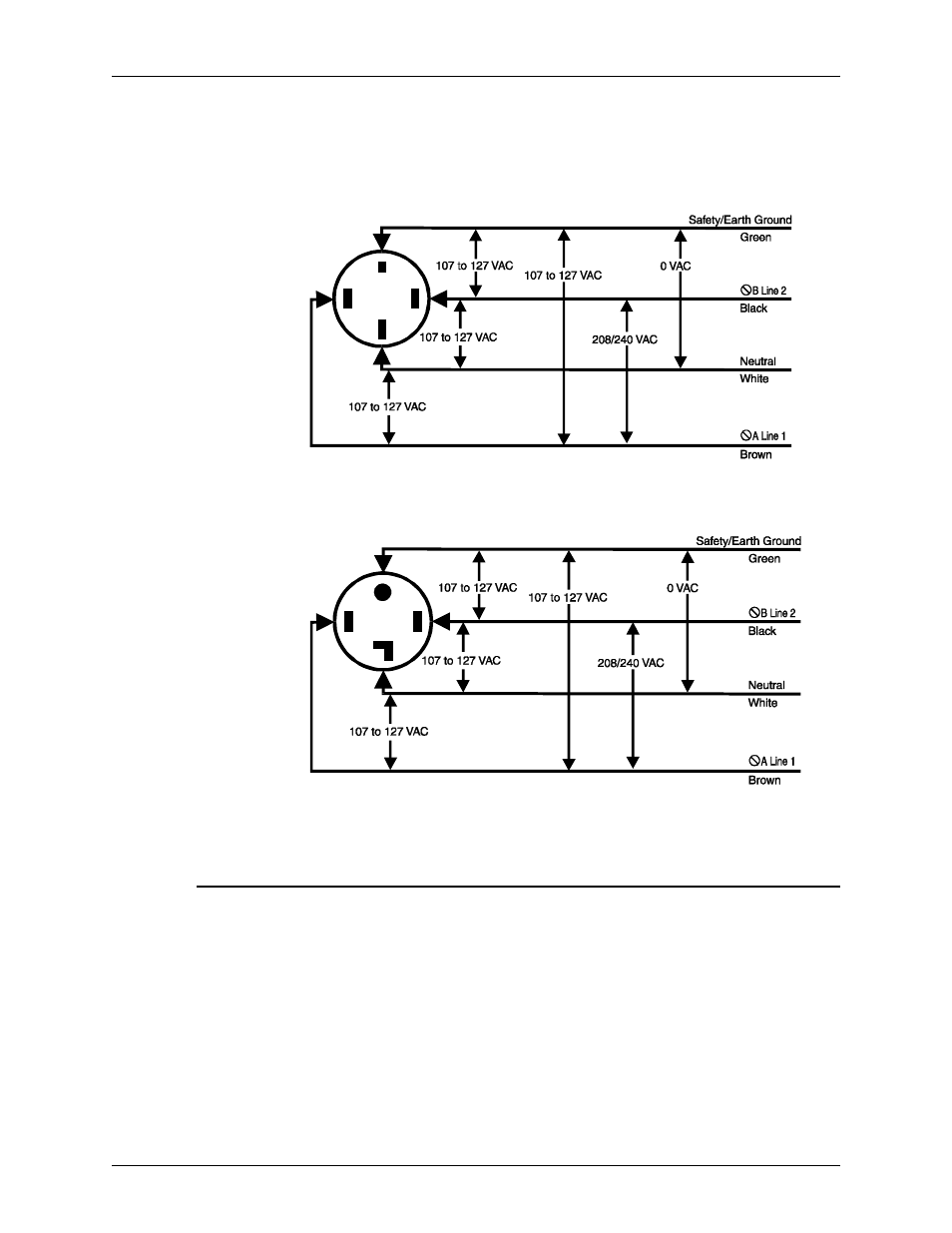

The following figures shows the 60 Hz power outlet configuration
for 50 amp NEMA 14-50R and 30 amp NEMA 14-30R. Voltage
to ground is shown for troubleshooting purposes.

Figure 6-1. 60 Hz power configuration–50 amp

Figure 6-2. 60 Hz power configuration–30 amp

50 Hz printer outlet voltages

All power outlets must have a dedicated circuit for each system
equipment piece. Make sure each power cord has a separate
circuit.

NOTE: Consult with your service representative to ensure that
the installation conforms to your local electrical requirements.

NEMA
14-50R

NEMA
14-30R
