9-26 Appendix
You’re connecting the WorkCentre with the
following:
PC with a fax/data modem
extension telephone
In this configuration, you may have two fax machines; the WorkCentre and
your PC fax/data modem.

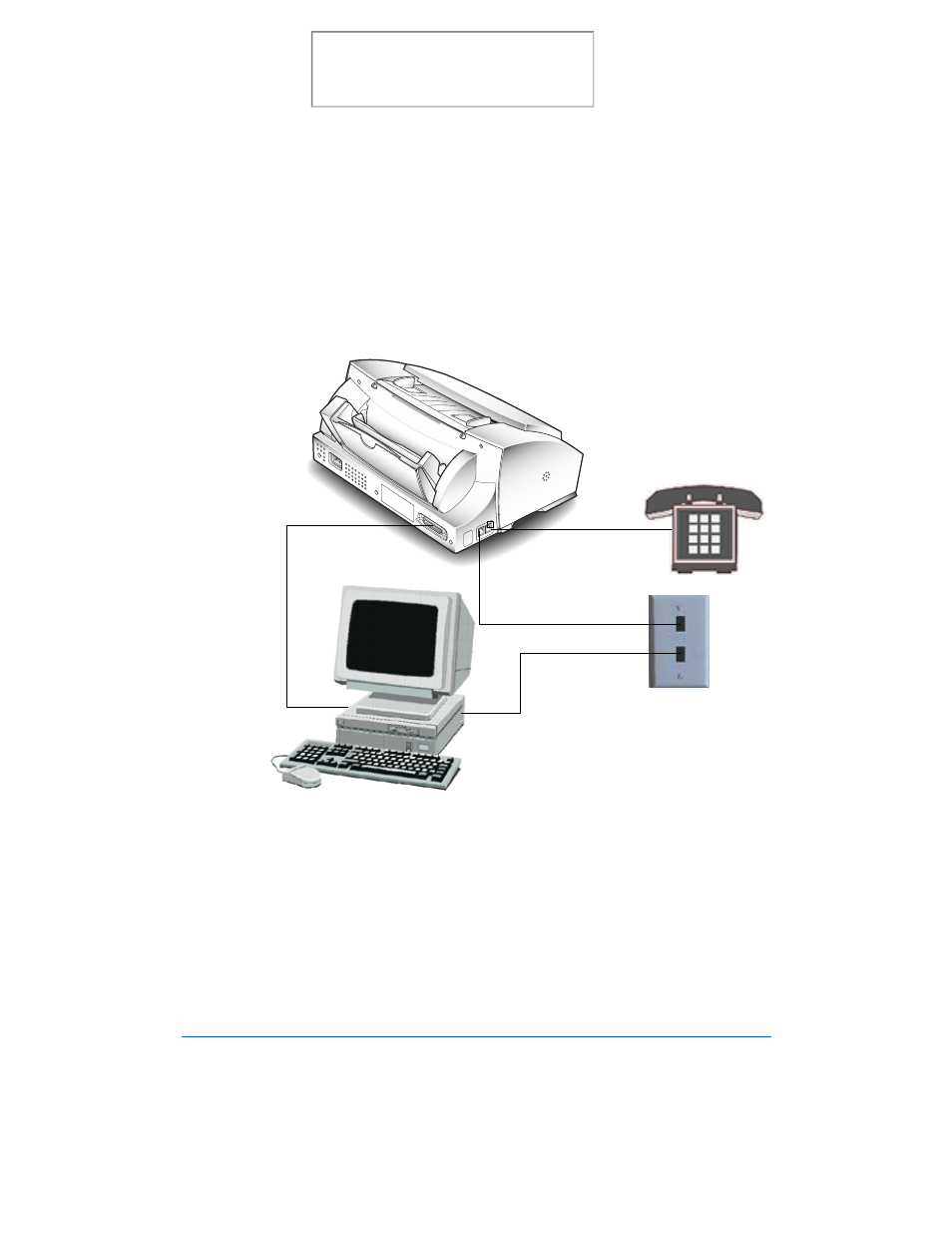

Plug one end of a telephone cable into the WorkCentre’s Line connector,
and the other end into the wall outlet. Also, plug the PC fax/data modem
Line into the wall outlet. Plug the extension telephone into the EXT
connector. The PC printer port is connected to the WorkCentre’s printer port
with the Xerox supplied printer cable.
Dual Wall Outlet
From the EXT
connector
From the LINE
connector
From the Printer
connector
From the PC
modem LINE
connector
(Both on same Line)
