CURSOR/JOG & SHUTTLE section

[JOG ON] key

This key turns the “nudge” function on/off for the [DATA/JOG] dial and [SHUT-
TLE] dial. (“Nudge” is a function that repeatedly plays back a fixed region starting
at the current location, either forward or backward.) When this is turned on, the
key will light.

[DATA/JOG] dial

The function of this dial will depend on the on/off status of the [JOG ON] key,
and on the on/off status of the [NUM LOCATE] key in the locate section.

❍ When the [JOG ON] key is off
The dial will adjust the value of the parameter currently selected in the display, or
select an item from a list.

❍ When the [JOG ON] key is on
Depending on the direction in which you turn the dial, playback of a fixed region
will occur repeatedly in the forward or reverse direction, allowing you to search
for a desired location.

❍ When the [NUM LOCATE] key is on
The dial will advance the time counter in the display.

[SHUTTLE] dial

The function of this dial will depend on the on/off status of the [JOG ON] key.

❍ When the [JOG ON] key is on
The current nudge playback region will be moved either forward or backward,
depending on the direction in which you turn the dial.

❍ When the [JOG ON] key is off
Depending on the direction and angle to which you turn the dial, reverse
(review) or fast-forward (cue) playback will occur at a variety of speeds.

CURSOR [

]/[

]/[ ]/[ ] keys

These keys move the cursor (the blinking box) in the display.

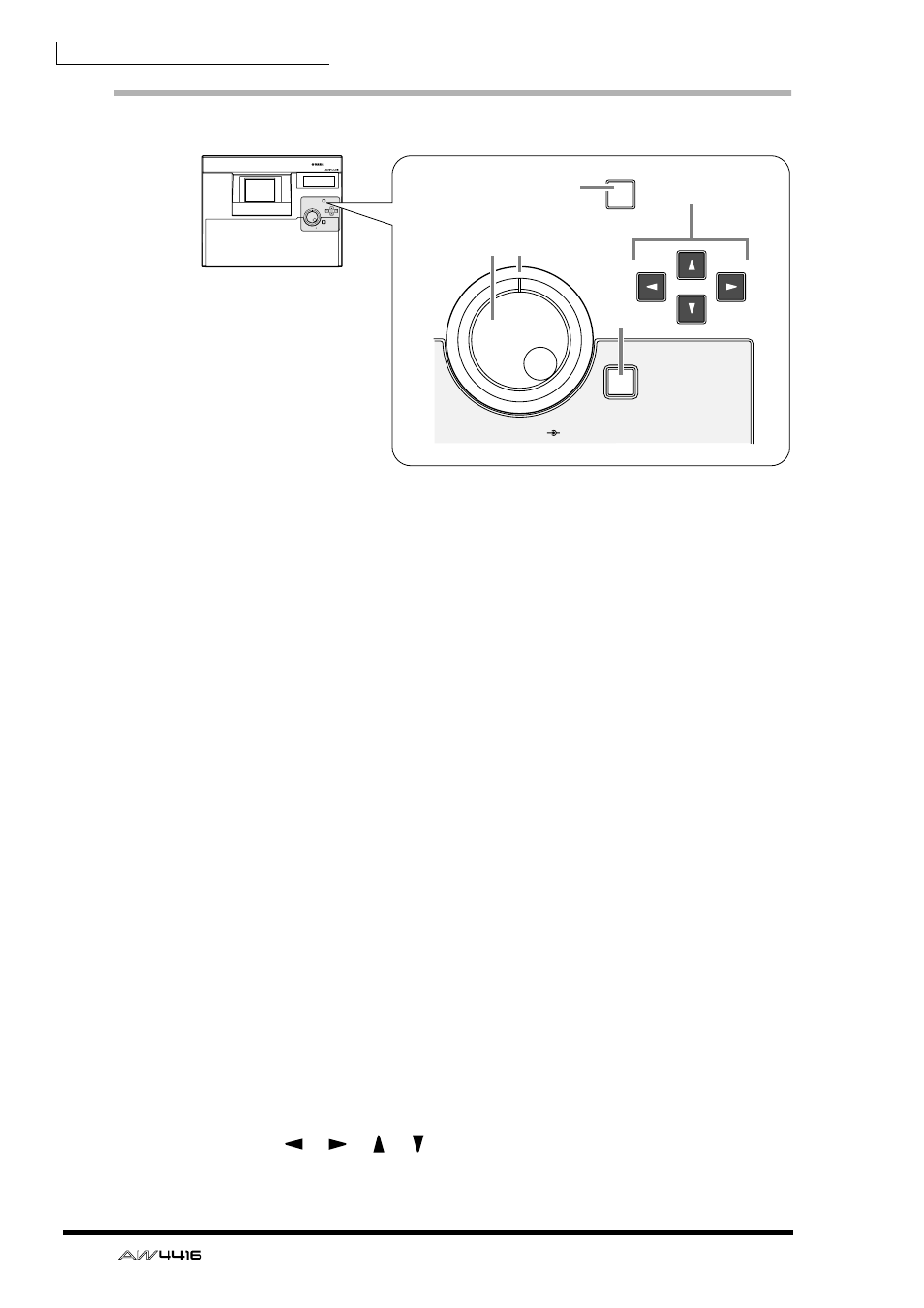

PROFESSIONAL AUDIO WORKSTATION
