Printer Operation
Print a Configuration Label
13163L Rev. 3 5/20/2004 Z4Mplus/Z6Mplus User Guide 43
Print a Configuration Label
Print a configuration label to test the printer setup. Do this when the printer is first installed, or
when the printer cannot properly detect the top of the label.
To print a configuration label, complete these steps:
1. Turn the printer power Off ( O ).
2. Press and hold CANCEL while turning the printer On ( l ). See Figure 3, Front Panel
Controls and LEDs, on page 3 .
3. Release CANCEL after the DATA light turns off (approximately five seconds).
A configuration label prints showing the printer’s currently stored parameters (similar to
the labels shown in
Figure 28 ).

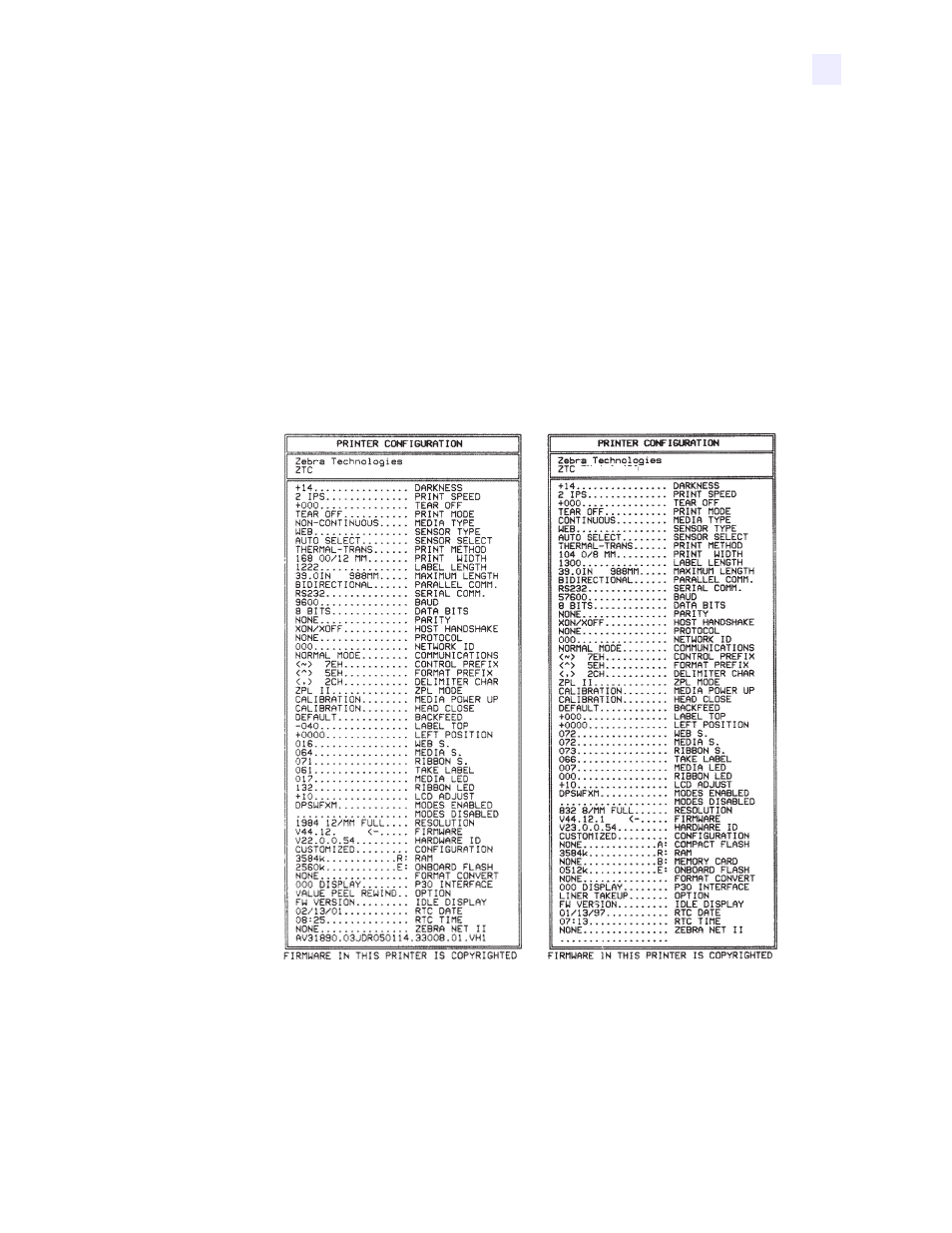

Figure 28 • Sample Configuration Labels
Z6Mplus - 300dpi
4
4
Z4Mplus - 200dpi
