Printer Operation
Load Roll Media
13163L Rev. 3 5/20/2004 Z4Mplus/Z6Mplus User Guide 33
Rewind/Peel-Off Mode
The Rewind option must be installed to use this mode. The option is shown in Figure 21 .

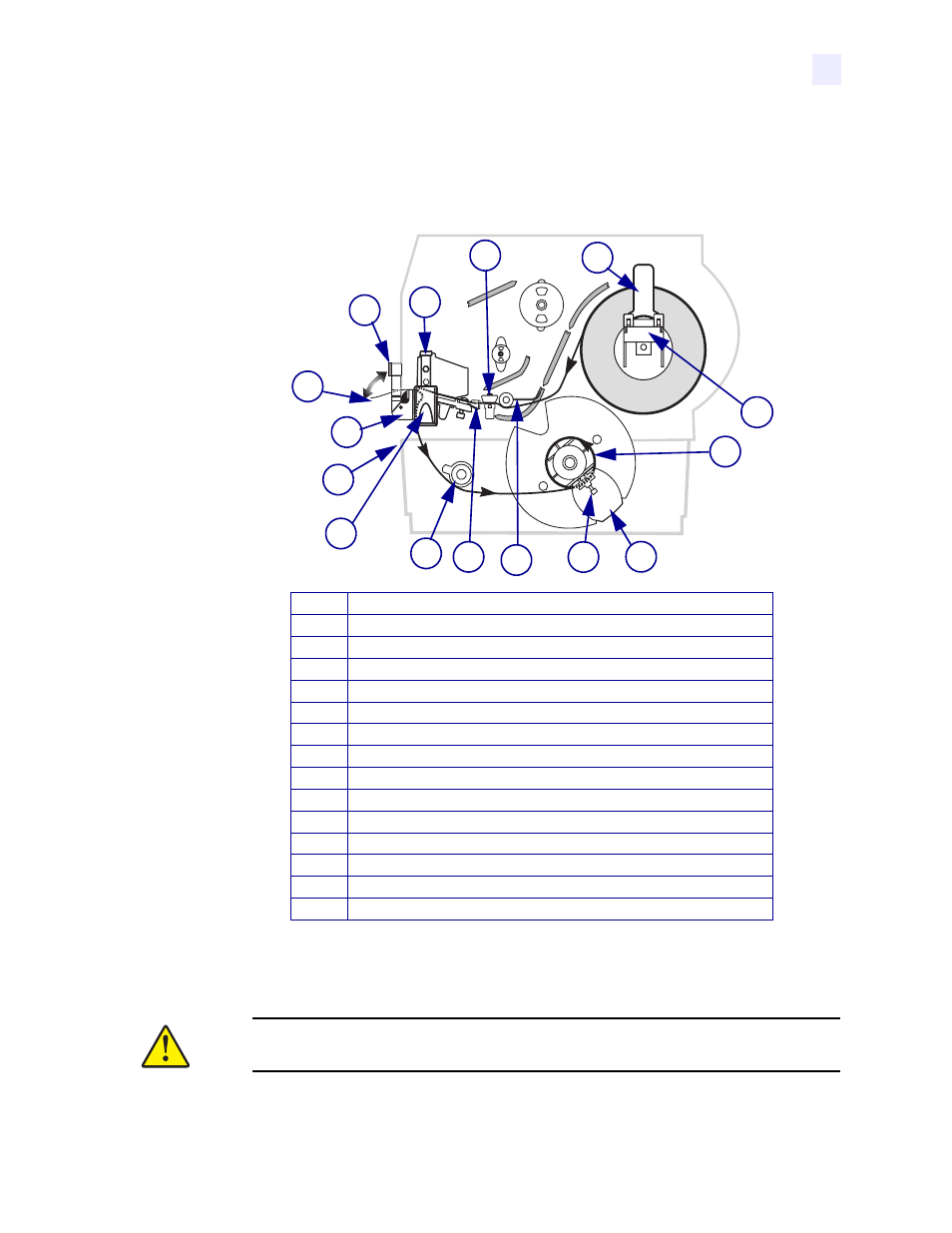

Figure 21 • Rewind/Peel Mode
To load media in Rewind/Peel-Off Mode, complete these steps:
1. Press the printhead open lever. The printhead assembly springs up.
2. Flip down the media supply guide.
3. Slide the media guide as far from the main frame as possible.
1 Printhead Assembly
2 Transmissive Sensor
3 Label Supply Guide
4 Label Supply Hanger
5 Rewind Spindle
6 Rewind Label Guide
7 Thumbscrew
8 Dancer
9 Label Guide
10 Media Alignment Spindle
11 Printhead Open Lever
12 Peel Assembly
13 Label
14 Rewind Base Assembly
15 Peel Lever
1
2 3
4
5
6 7 8 9
10
11
12
13
14
15
Caution • Ensure that the printhead is fully open and engaged in the upright position.
If you fail to latch the printhead, it could fall on your hand during the procedure.
