Step 9: Connecting the Battery Temperature Sensor
445-0089-01-01
3–21
Step 9: Connecting the Battery Temperature Sensor
Mounting Options
You can mount the battery temperature sensor (BTS) in one of two ways:
•
Mounting the sensor to the negative battery post allows the internal battery
temperature to be sensed and provides the most accurate results.
•
Attaching the sensor to the side of the battery using the self-adhesive backing
also provides good results in most situations.
Mounting to the Negative Battery Terminal
To mount the sensor on the negative battery terminal:
See Figure 3-9.
WARNING: Energy and Explosion hazard
Review the “Important Safety Instructions” on page vii.

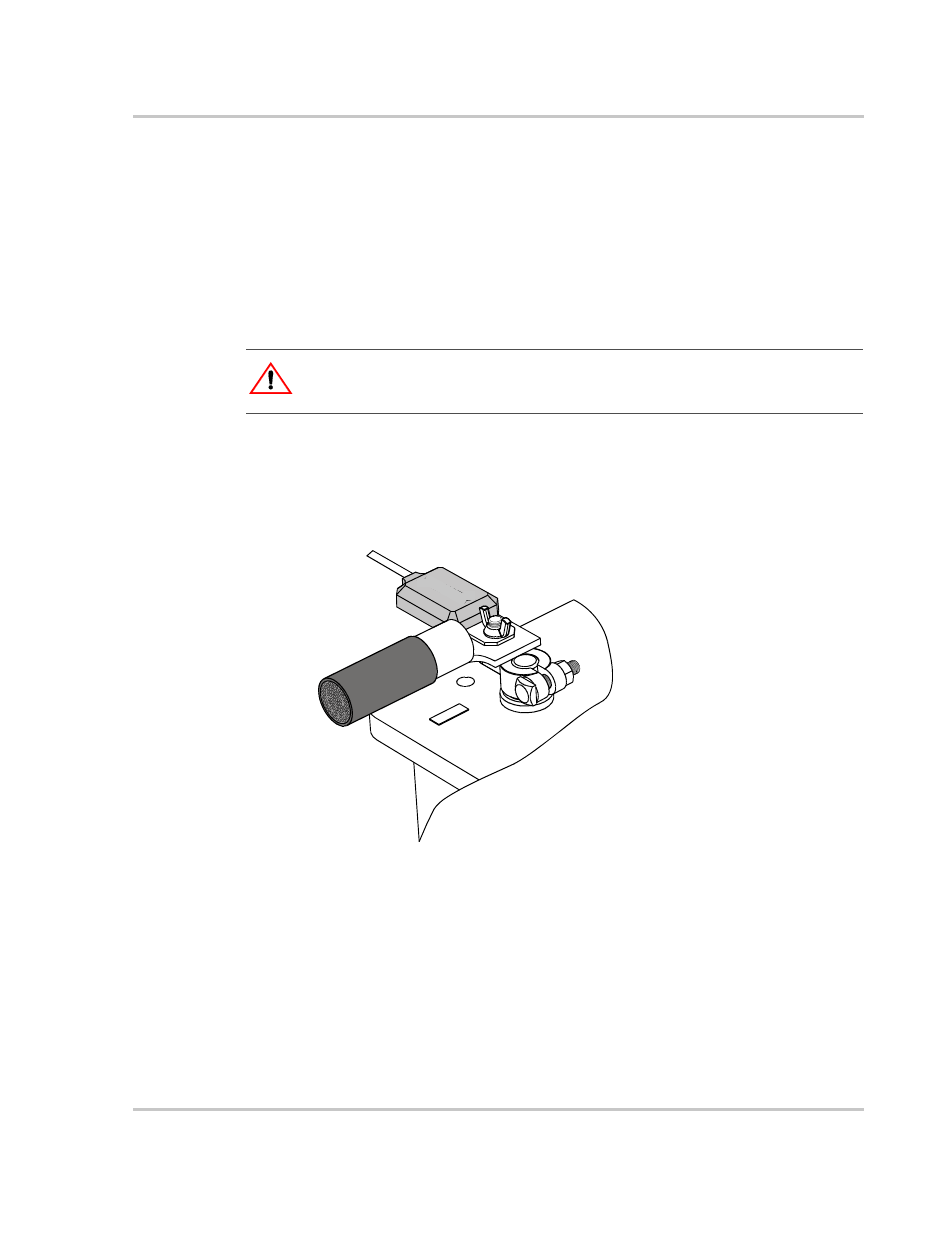

Figure 3-9 BTS Attached to Negative Battery Terminal
