Xantrex Technology PROsine 2.0 User Manual
Page 34

Product Orientation
2–4
445-0089-01-01
DC End

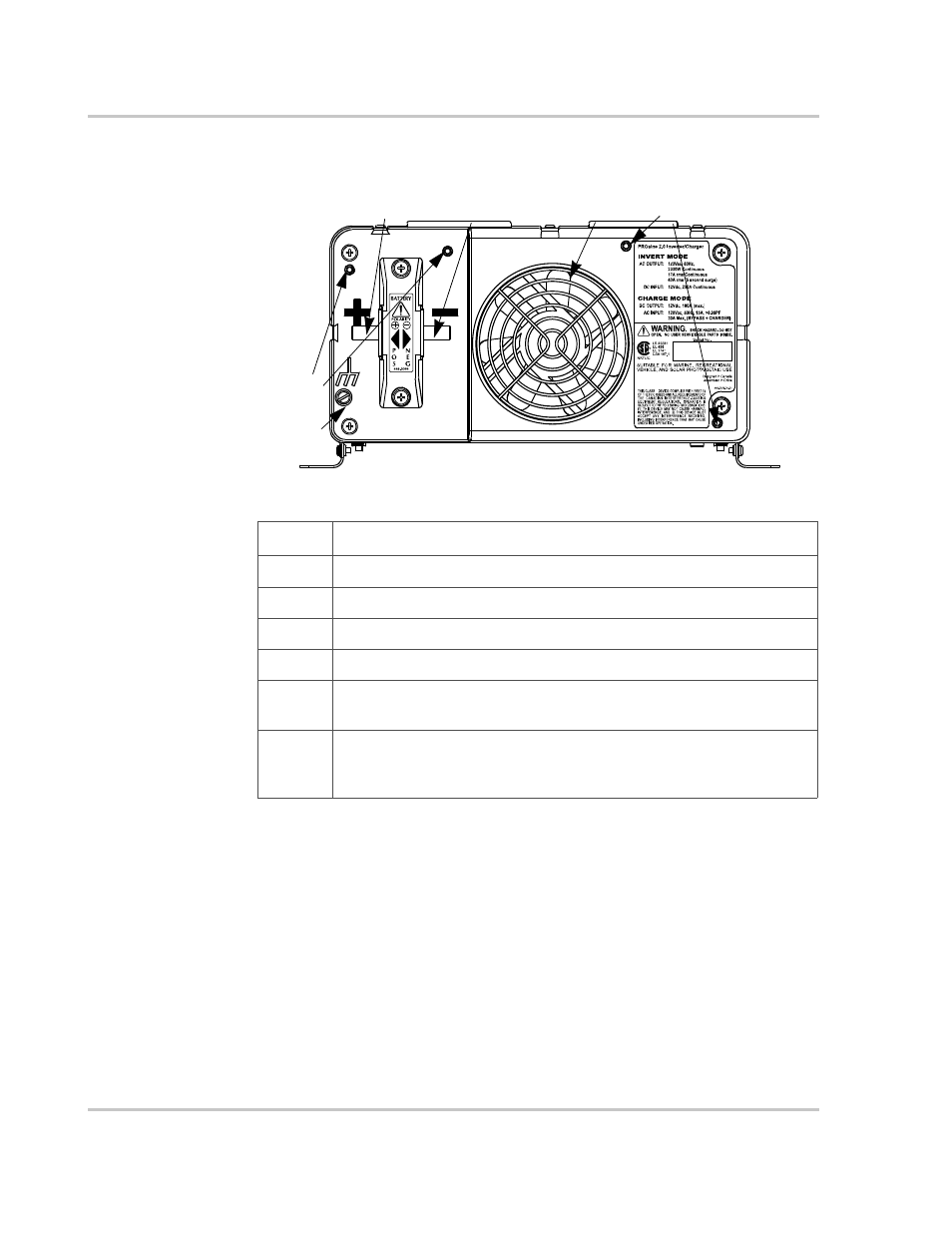

Figure 2-3 DC End
Feature
Description
1
Positive DC cabling terminal, 8 mm stud
2
Negative DC cabling terminal, 8 mm stud
3
Cooling fan. (For details, see “Fan Operation” on page 5–3.)
4
Screw holes for mounting accessory modules
5
Chassis ground lug. Provides a ground path for the PROsine chassis to the
DC system ground.
6
Screw holes for mounting the optional DC wiring enclosure. See
“Materials List” on page 1–6 for information about the crimp-on ring
terminals to be used with this option.
c
d
e f
g
h
B
