Designing a Series System
445-0089-01-01
7–3

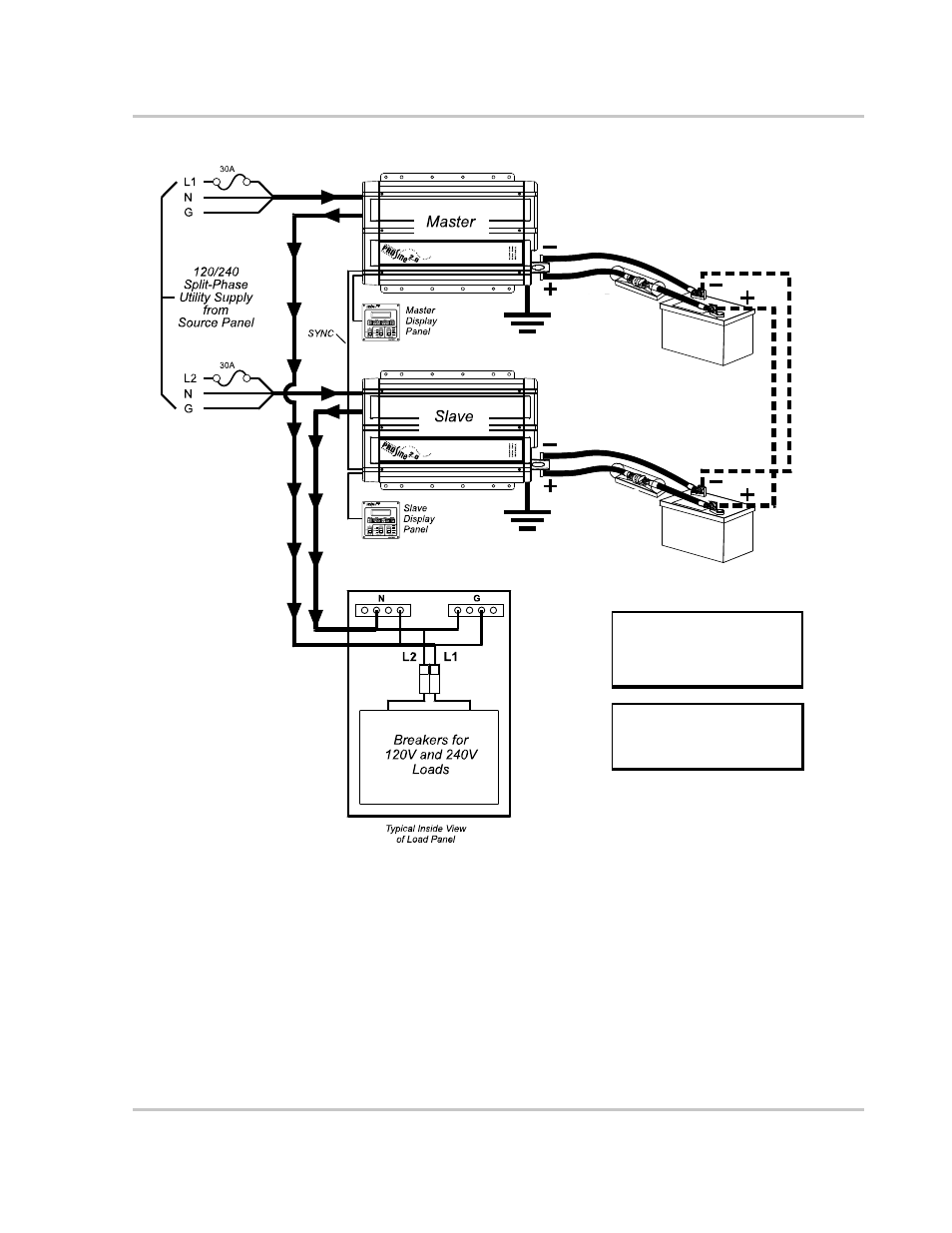

Figure 7-1 Two PROsine Series Operation System
*
Ground
*
Ground
Battery 1
Battery 2
DC Fuse /
disconnect or
circuit breaker
DC Fuse /
disconnect or
circuit breaker
Solid lines: 2 bank system
Dashed lines: add cross-
tie jumpers to create a
single bank system.
Connect these points to the
system ground electrode.
*
Ground
