Step 4: Connecting the AC Input Wires

445-0089-01-01

3–11

Step 4: Connecting the AC Input Wires

General AC Wiring Considerations

AC Wiring
Connectors

Connect AC wires with twist-on wire nuts or crimp-on splice connectors
according to the type of installation:

On a boat, use crimp-on splice connectors to meet the American Boat and
Yacht Council’s Standards and Recommended Practices for Small Craft,
which do not allow twist-on connectors for AC connections.

For non-marine installations subject to vibration, you should still use crimp-
on connectors.

For non-marine installations in locations not subject to vibration, twist-on
wire nuts may be used instead of crimp-on connectors.

The amount of insulation you strip off individual wires will be specified by
the connector manufacturer and is different for different types of connectors.

AC and DC Wiring
Separation

Do not mix AC and DC wiring in the same conduit or panel. Where DC and AC
wires must cross, make sure they do so at 90

° to one another. Consult code for

details about DC and AC wiring in vicinity to each other.

AC Wiring
Compartment

For your reference, the AC Wiring Compartment is shown in Figure 3-3.

WARNING: Fire, Shock and Energy hazards

Make sure wiring is disconnected from all electrical sources before handling. All wiring
must be done in accordance with local and national electrical wiring codes. Do not connect
the output terminals of the PROsine to any incoming AC source.

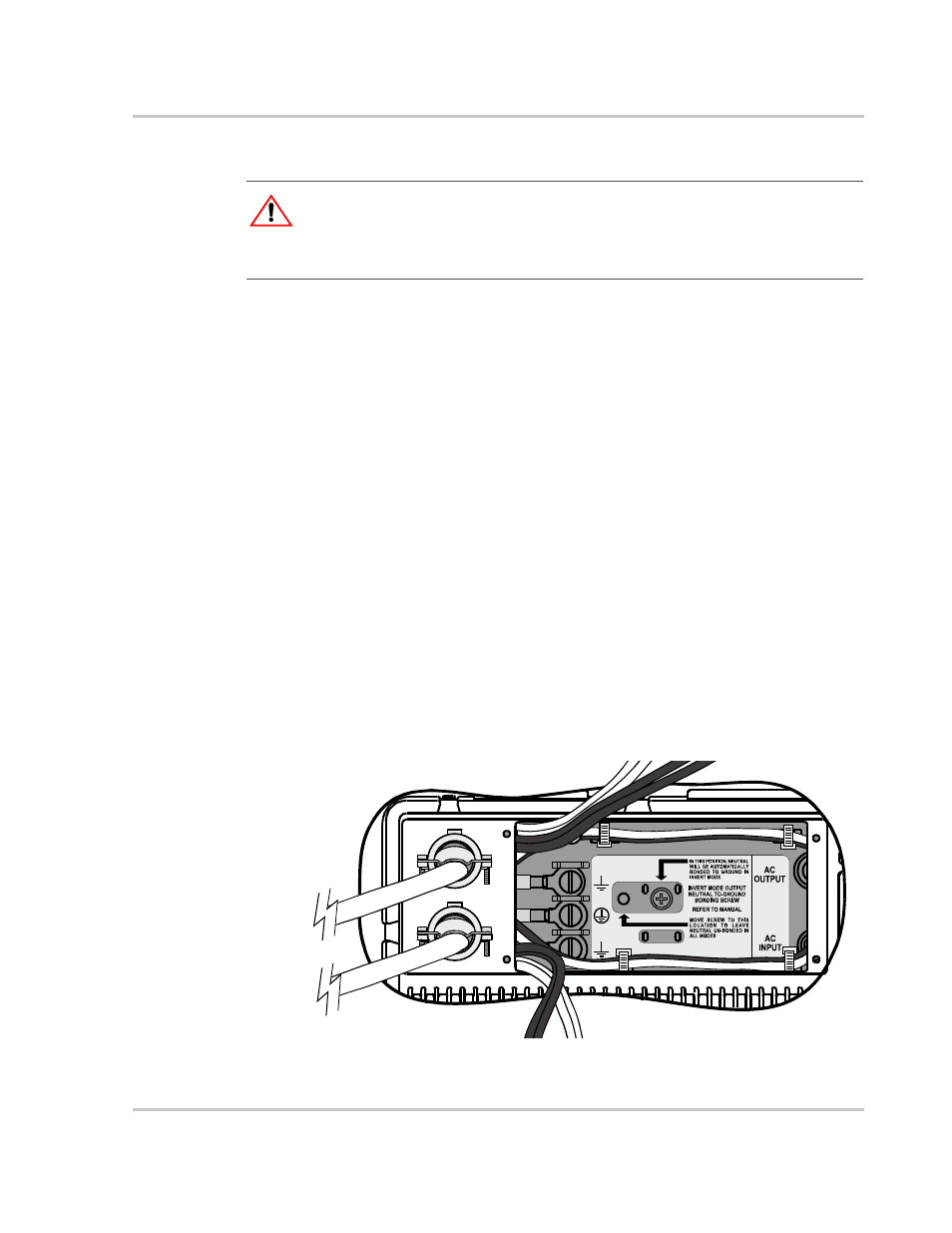

Figure 3-3 Interior of AC Wiring Compartment
